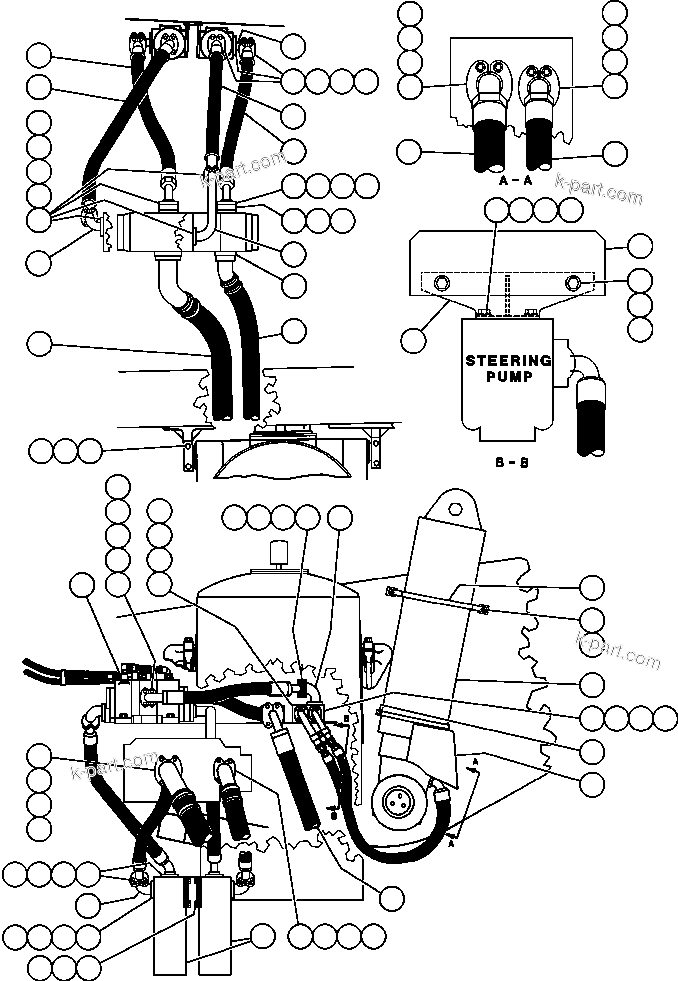

AFE32-FA 830E COLLAHUASI

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	PB8318	ELBOW - 90 DEG	4
?	TF3231	FLANGE, SPLIT	32
?	WA0187	SEAL, O-RING	18
?	C1614	CAPSCREW - 1/2" - 13NC X 1 1/2"	64
?	C1540	LOCKWASHER - 1/2"	78
?	HA6250	HOSE	1
?	HA6250	HOSE	2
?	C1619	CAPSCREW - 1/2" - 13NC X 2 3/4"	8
?	TY8358	ADAPTOR, FLANGE	2
?	PB6528	COUPLING, DIAGNOSTIC	2
?	TY9635	TUBE	1
?	TY8367	HOSE	1
?	TY8365	HOSE	1
?	PB9875	HOIST PUMP ASSEMBLY (SEE INDEX)	1
?	HA6248	HOSE	1
?	TF8090	FLANGE, SPLIT	4
?	VG9095	SEAL, O-RING	2
?	WB0557	FITTING, TEE	1
?	VN7716	FLANGE, HALF	2
?	WA0245	SEAL, O-RING	1
?	C1630	CAPSCREW - 5/8" - 11NC X 2"	4
?	C1541	LOCKWASHER - 5/8"	8
?	VL9963	FLANGE, SPLIT	2
?	WA0237	SEAL, O-RING	2
?	C1629	CAPSCREW - 5/8" - 11NC X 1 3/4"	4
?	C1613	CAPSCREW - 1/2" - 13NC X 1 1/4"	8
?	TY8357	BRACKET	1
?	EG9089	HOIST CYLINDER & BUSHING ASSEMBLY	2
?	TF3237	CLAMP, SPLIT FLANGE	4
?	VG9096	SEAL, O-RING	2
?	C1609	CAPSCREW - 7/16" - 14NC X 1 1/2"	8
?	C5775	LOCKWASHER - 7/16"	8
?	HA6228	HOSE	1
?	HA6330	HOSE	2
?	HA6340	HOSE	2
?	PB7980	VALVE, ORIFICE CHECK	1
?	C1669	CAPSCREW - 1" - 8NC X 3 1/2"	4
?	C1544	LOCKWASHER - 1"	4
?	PB6999	FILTER, HOIST HIGH PRESSURE ASSEMBLY	2
?	VE4208	HEAD ASSEMBLY	2
?	PB7023	FILTER, 7 MICRON	2
?	VE4209	TUBE	2
?	VE3433	CAP, END	2
?	VE3429	KIT, O-RING	2
?	VE4206	INDICATOR - 24V DC	2
?	VE3431	KIT, SEAL	2
?	VE3432	SET SCREW	2
?	VE3434	PLUG	2
?	VE3435	O-RING	2
?	PB6041	CAP, DUST	2
?	TY4907	CAP	2
?	EC8707	BRACKET	1
?	DC7524	CAPSCREW - 3/8" - 16NC X 7/8"	2
?	C0312	LOCKWASHER - 3/8"	2
?	WA0720	FLAT WASHER - 3/8" (HARDENED)	2
?	ED6195	BRACKET, PUMP-VALVE	1
?	C1629	CAPSCREW - 5/8" - 11NC X 1 3/4"	2
?	WA0361	FLAT WASHER - 5/8" (HARDENED)	4
?	VN9952	LOCKNUT - 5/8" - 11NC	2
?	C5760	CAPSCREW - 1/2" - 13NC X 5 1/2"	4
?	C1542	LOCKWASHER - 3/4" (1)	4
?	C1643	CAPSCREW - 3/4" - 10NC X 1 3/4" (1)	4
?	TY9627	CLAMP (1)	2
?	TZ2549	COVER, HOIST CYLINDER	2
?	TZ3107	CLAMP, T-BOLT	2
?		NOTE: (1) USED FOR SHIPPING & HANDLING ONLY.	65535
