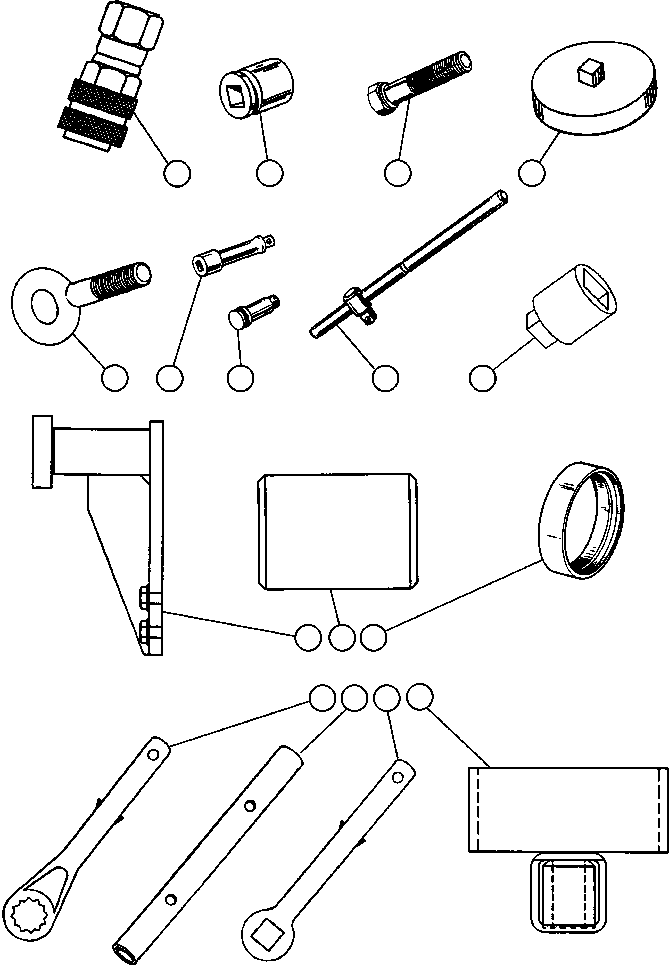

AFE47-BV 730E S/N A30229, A30231, A30236-A30237 CVG

2 3 4 1 5 6 7 8 9 10 11 12 16 13 14 15

#	Part Number	Partname	Quantity
1	PB6039	COUPLING, HALF (QUICK DISCONNECT - FEMALE)	3
2	TZ2726	SOCKET - 1 1/8"	1
2	TZ2729	SOCKET - 1 1/4"	1
2	TV7567	SOCKET - 1 5/16"	1
2	PB6825	SOCKET, IMPACT - 1 5/8"	1
2	TR0529	SOCKET - 1 3/4"	1
2	TZ2100	SOCKET - 1 7/8"	1
2	TZ2727	SOCKET - 2 1/4"	1
2	TZ2728	SOCKET - 2 3/4"	1
2	PB6824	SOCKET, IMPACT - 3 1/8"	1
2	TZ8968	SOCKET - 3 1/2"	1
3	SG5488	CAPSCREW - 1 1/8" - 7NC X 5 1/2"	2
4	TW9425	WRENCH, ACCUMULATOR	1
5	TG1106	BOLT, EYE	2
6	TR0532	EXTENSION, SQUARE DRIVE - 8"	1
6	TR0533	EXTENSION, SQUARE DRIVE - 17"	1
7	TV1186	EXTENSION - 3 1/2"	1
8	TR0546	HANDLE, SLIDING "T"	1
9	TZ2730	ADAPTOR - 1" X 1 1/2"	1
9	TZ2731	ADAPTOR - 3/4" X 1"	1
10	EC7582	ROLL-OUT ASSEMBLY	1
10	EG2298	ROLLER ASSEMBLY	2
10	ED2363	RING, ROLLER	2
10	ED2364	RING, RETAINING	4
10	PB7624	BEARING	2
10	SP5874	RING, RETAINING	2
10	EG2296	MOUNT, ROLLER	2
10	MM0055	CAPSCREW - M20 X 2.50 X 50	8
10	MM0465	FLAT WASHER - M20	8
11	EC1741	TOOL, SLEEVE ALIGNMENT	1
11	EC1742	TOOL, SLEEVE ALIGNMENT	1
11	TZ0992	TOOL, SLEEVE ALIGNMENT	1
12	TY2150	TOOL, SEAL INSTALLATION	1
13	PB8326	WRENCH - 1.44 HD OFFSET	1
14	TZ2733	HANDLE, TUBULAR	1
15	TZ2734	ADAPTOR, TORQUE - 3/4"	1
16	TZ5150	TUBE	1
NS\|38		NOTE: NS = NOT SHOWN	-1
NS\|39	PB6851	PIN, LOCKING STEEL	1
NS\|40	PB6852	RING, LOCKING RUBBER	1
NS\|41	EF9160	HARNESS, PAYLOAD METER DOWNLOAD	1
NS\|42	AK4720	PAYLOAD DATA MANAGER	1
NS\|43		NOTE: EC1740 TOOL GROUP IS NOT SOLD AS AN ASSEMBLY.	-1
NS\|44		ORDER INDIVIDUAL COMPONENT PARTS.	-1

Komatsu AFE47-BV 730E S/N A30229, A30231, A30236-A30237 CVG parts catalog PDF

TOOL GROUP - INTERNATIONAL (EC1740) (55098) in AFE47-BV 730E S/N A30229, A30231, A30236-A30237 CVG. Diagram image and parts list.
