AFE47-BV 730E S/N A30229, A30231, A30236-A30237 CVG

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	EF5719	PLENUM - R.H.	1
?	EG0738	PLENUM - L.H.	1
?	PB2433	CLEANER, AIR (SEE INDEX)	2	35081
?	TB1406	GUARD, RAIN - FRONT	2
?	EB0983	GUARD, RAIN - R.H.	1
?	EB0984	GUARD, RAIN - L.H.	1
?	TR2961	CAPSCREW - 5/8" - 11NC X 1"	33
?	TR9082	FLAT WASHER - 5/8"	33
?	VC1390	LOCKWASHER - 5/8"	33
?	VW7769	HOSE, HUMP	7
?	WA1083	CLAMP, T-BOLT	14
?	EF5720	TUBE - R.H.	1
?	EF5722	TUBE - L.H.	1
?	C5768	PLUG, PIPE	2
?	VW7036	HOSE, FLEX	1
?	WB0928	CLAMP, T-BOLT	2
?	WA0471	CAPSCREW - 1/2" - 13NC X 2 1/4"	6
?	WA4728	FLAT WASHER - 1/2" (HARDENED)	12
?	DF3500	LOCKNUT - 1/2" - 13NC	6
?	PC1247	END, ROD (FEMALE SPECIAL)	6
?	TL8151	JAMNUT - 1/2" - 20NF	6
?	EK2341	ROD, THREADED - 1/2" X 7.28"	2
?	EK3399	ROD, THREADED - 1/2" X 19.69"	1
?	EK2834	CLAMP	3

Komatsu AFE47-BV 730E S/N A30229, A30231, A30236-A30237 CVG parts catalog PDF

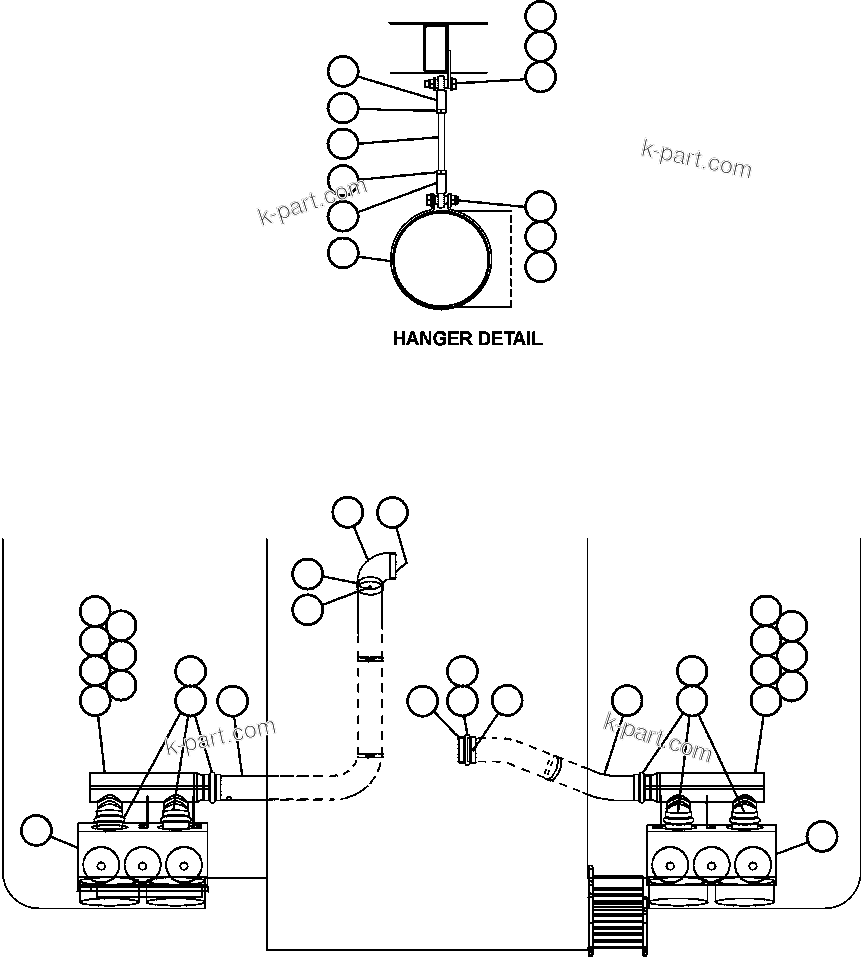

AIR CLEANER PIPING & INSTALLATION (55576) in AFE47-BV 730E S/N A30229, A30231, A30236-A30237 CVG. Diagram image and parts list.
