AFE47-BV 730E S/N A30229, A30231, A30236-A30237 CVG

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	SM1082	PANEL, INSTRUMENT	1
?	SM5164	DASH MODULE, UPPER - L.H.(1)	1
?	SM4358	PLATE, MOUNTING	1
?	EG4130	HARNESS, UPPER - L.H.	1
?	VH5017	STRAP, TIE	5
?	VZ5080	BULB	6
?	PB8551	GAUGE, OIL PRESSURE	1
?	PB6927	VOLTMETER	1
?	PB6982	INSERT, BLANK	2
?	PB7903	LOUVER, BALL	1
?	SM2785	HOURMETER	1
?	PB6926	GAUGE, FUEL LEVEL	1
?	PB6401	KIT, BEZEL OVERLAY	6
?	PB6303	GAUGE, WATER TEMPERATURE	1
?	SM2722	OVERLAY, LEXAN	1
?	SM0926	SCREW, PANEL	18
?	PB8320	ADAPTOR	8
?	PB8319	LOUVER	8
?	VM2951	SCREW, MACHINE - #6 - 32NC X 5/16"	16
?	PB6402	KIT, BEZEL OVERLAY	2
?	PC1175	SPEEDOMETER / DISPLAY	1
?	TY8743	PANEL, BLANK INSERT	1
?	WA4605	MACHINE SCREW - #10 - 24 X 1/2"	2
?	TW3834	INDICATOR, HIGH BEAM	1
?	VZ5080	BULB	3
?	TW5472	INDICATOR, TURN	2
?	WA6639	LEXAN OVERLAY, TURN SIGNAL	1
?	PB6984	TACHOMETER - DIGITAL	1
?	PB8658	SCREW, PAN	2
?	SM5458	DASH MODULE, UPPER - R.H. (1)	1
?	SM5328	PLATE, MOUNTING	1
?	PB7019	LIGHT, INDICATOR	1
?	VL6234	BULB	1
?	PB6972	SWITCH, ROCKER	2
?	EG8345	HARNESS, UPPER - R.H.	1
?	VH5017	STRAP, TIE	5
?	WB2687	OVERLAY, LEXAN (SPANISH)	1
?	PB7903	LOUVER, BALL	1
?	SM5296	DASH MODULE, LOWER - R.H. (1)	1
?	SM4356	PLATE, MOUNTING	1
?	PB7019	LIGHT, INDICATOR	1
?	VL6234	BULB	1
?	WB2505	OVERLAY, LEXAN (SPANISH)	1
?	PB6972	SWITCH, ROCKER	3
?	EG8948	HARNESS, LOWER - R.H.	1
?	VH5017	STRAP, TIE	5
?	PB9752	SWITCH, ROCKER	1
?	VM7105	SWITCH, KEY	1
?	SM1088	PLATE, R.H. RETAINER	1
?	TX7829	SEAL, STEERING COLUMN	1
?	SM1086	PLATE, L.H. RETAINER	1
?	EJ2760	DASH MODULE, LOWER - L.H. (1)	1
?	SM4357	PLATE, MOUNTING	1
?	EG4129	HARNESS, LOWER - L.H.	1
?	VH5017	STRAP, TIE	5
?	TW5117	RHEOSTAT	1
?	PB0529	KNOB	1
?	TY9878	CONTROL, ELECTRIC WIPER	1
?	PB7026	SWITCH, ROCKER	1
?	PB8639	SWITCH, ROCKER	1
?	PB7019	LIGHT, INDICATOR	1
?	VL6234	BULB	1
?	EJ4206	OVERLAY, LEXAN	1
?	SM2783	HOSE	2
?	CC6103	CLAMP	4
?		(NOT USED THIS APPLICATION)	-1
?		(NOT USED THIS APPLICATION)	-1
?		(NOT USED THIS APPLICATION)	-1
?		NOTE: NS = NOT SHOWN	-1
?	VS8192	BOARD, TERMINAL (INSTRUMENT PANEL LIGHTS)	1
?	TG1929	MACHINE SCREW - #10 - 24NC X 1/2"	2
?	DC3101	LOCKWASHER - #10	2
?		NOTE: (1) NOT SOLD AS AN ASSEMBLY.	-1
?		ORDER INDIVIDUAL COMPONENT PARTS.	-1

Komatsu AFE47-BV 730E S/N A30229, A30231, A30236-A30237 CVG parts catalog PDF

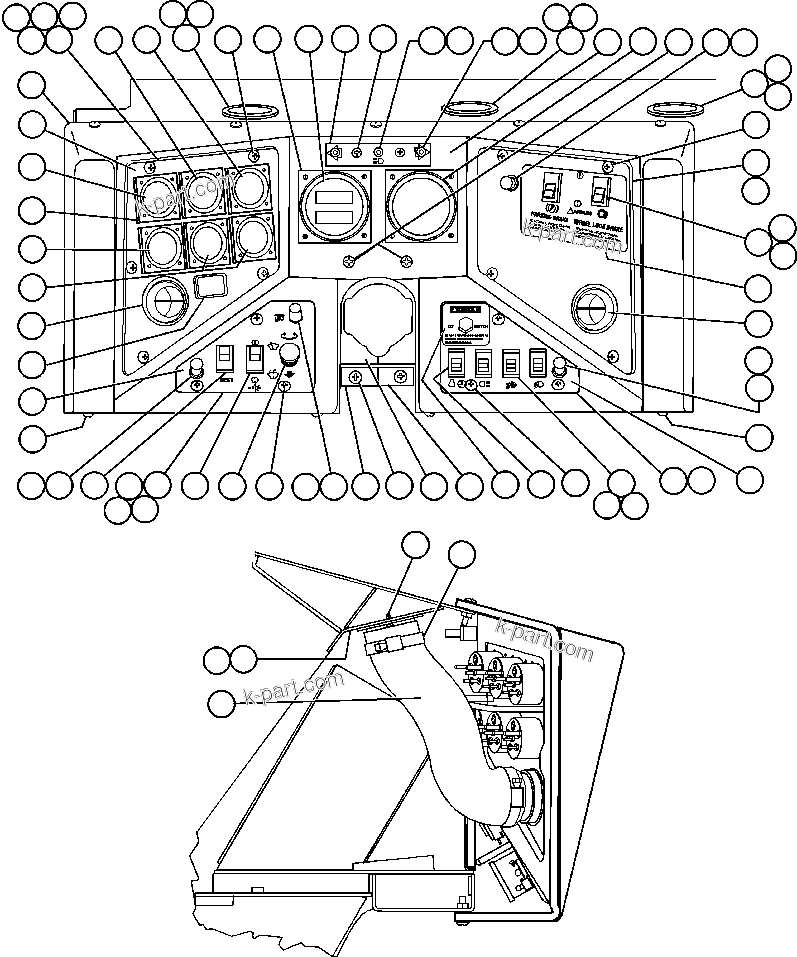

INSTRUMENT PANEL ASSEMBLY (55568) in AFE47-BV 730E S/N A30229, A30231, A30236-A30237 CVG. Diagram image and parts list.
