AFE47-BV 730E S/N A30229, A30231, A30236-A30237 CVG

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	PC0454	AIR COMPRESSOR ASSEMBLY	1
?	BF2900	CLUTCH PLATE & HUB	1
?	BF2948	LOCKNUT, SHAFT	1
?	XA0039	PULLEY W/BEARING	1
?	XA0040	COIL - 24 VOLT	1
?	XA0041	CLUTCH W/KEY	1
?	VY8331	CLAMP - 1/4" I.D.	2
?	R3868	CAPSCREW - 5/16" - 18NC X 1/2"	1
?	WA0723	FLAT WASHER - 5/16" (HARDENED)	4
?	PB9153	FITTING ASSEMBLY	1
?	PB9152	FITTING ASSEMBLY	1
?	EJ1087	HOLD-DOWN, ADJUSTABLE (SEE INDEX)	1	50388
?	C1603	CAPSCREW - 3/8" - 16NC X 1 1/4"	11
?	TR4436	FLAT WASHER - 3/8"	19
?	C7568	CAPSCREW - 5/16" - 24NF X 1"	3
?	C1606	CAPSCERW - 3/8" - 16NC X 2"	2
?	C1521	NUT - 3/8" - 16NC	6
?	EF0317	BRACKET	1
?	EK2844	BRACKET	1
?	H0594	CAPSCREW - 7/16" - 14NC X 1 1/4"	2
?	PB1255	FLAT WASHER - 7/16" (HARDENED)	3
?	C5775	LOCKWASHER - 7/16"	3
?	EF0320	LINK	1
?	EF0321	LINK	1
?	HA7882	HOSE (COMPRESSOR TO CAB EVAPORATOR)	1
?	WA1733	O-RING - 9/16" I.D.	2
?	HA7185	HOSE (COMPRESSOR TO CONDENSOR)	1
?	WA1732	O-RING - 7/16 I.D.	2
?	TF6925	CLAMP - 3/4" I.D.	5
?	VN9908	CLAMP - 1" I.D.	4
?	MM0461	FLAT WASHER - M10	5
?	MM0178	NUT - M10 X 1.50	5
?	PC1378	V-BELT	1
?	VJ9187	SLEEVE	1
?	C1602	CAPSCREW - 3/8" - 16NC X 1"	4
?	C1547	FLAT WASHER - 3/8"	4
?	PC1119	WASHER, RUBBER	8
?	EJ7835	GUARD, A/C BELT	1
?	EK3388	HARNESS	1
?	EF0316	BRACKET	1
?	EK2839	GUARD	1
?	C1614	CAPSCREW - 1/2" - 13NC X 1 1/2"	1
?	WA4728	FLAT WASHER - 1/2" (HARDENED)	2
?	C1523	NUT - 1/2" - 13NC	1
?	EF0314	PLATE, MOUNTING	1

Komatsu AFE47-BV 730E S/N A30229, A30231, A30236-A30237 CVG parts catalog PDF

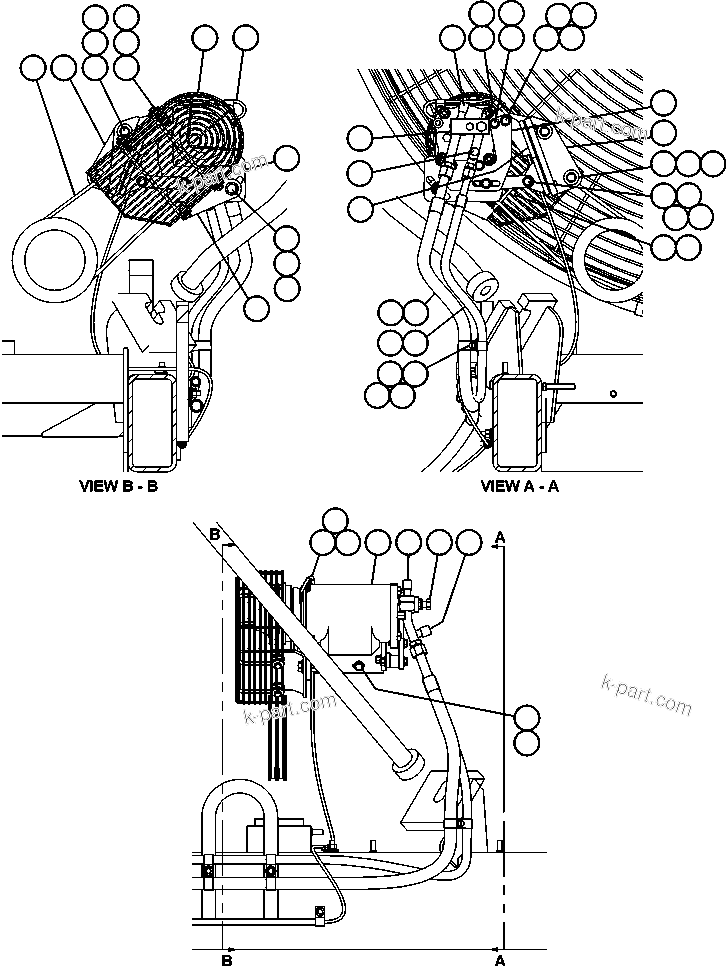

AIR CONDITIONER COMPRESSOR INSTL (55599) in AFE47-BV 730E S/N A30229, A30231, A30236-A30237 CVG. Diagram image and parts list.
