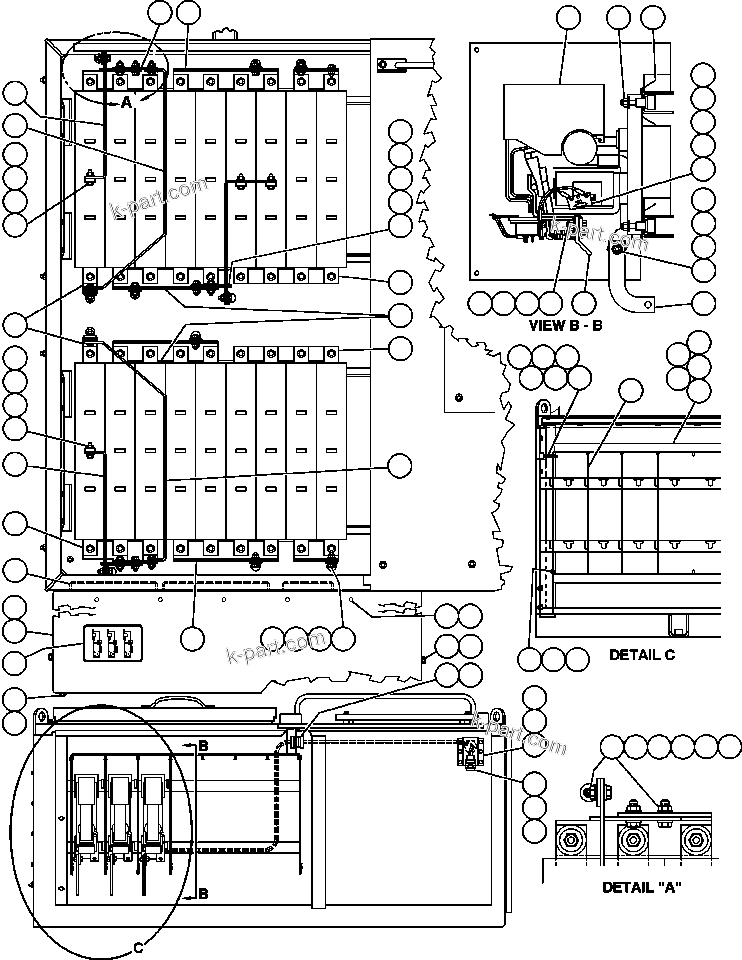

BLOWN GRID - 3 STEP, 18 ELEMENT - 2 | AFE47-BS 730E S/N A30220-A30224 PAMA

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE47-BS 730E S/N A30220-A30224 PAMA

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	TY4432	BAR, BUS	1
?	EH4050	INSULATOR	2
?	TY4266	BAR, BUS	2
?	ED2909	BAR, BUS	2
?	TN4945	BAR, BUS	2
?	EC1077	BAR, BUS	2
?	TY4273	BAR, BUS	2
?	MM0022	CAPSCREW - M8 X 1.25 X 20	6
?	MM0470	LOCKWASHER - M8	6
?	MM0460	FLAT WASHER - M8	6
?	MM0604	CAPSCREW - M10 X 1.50 X 20	4
?	MM0471	LOCKWASHER - M10	4
?	MM0461	FLAT WASHER - M10	8
?	C1601	CAPSCREW - 3/8" - 16NC X 3/4"	8
?	TC1231	LOCKWASHER - 3/8"	8
?	C1547	FLAT WASHER - 3/8"	8
?	WB2058	DECAL, SCHEMATIC	1
?	EF8699	ENCLOSURE, CONTACTOR	1
?	EF8273	DOOR	2
?	EC1078	BAR, BUS	1
?	EH4050	INSULATOR	2
?	EG0025	HARNESS - 3 STEP ERR	1
?	EB1299	BAR, BUS	2
?	EH5227	BAR, BUS	2
?	MM0623	CAPSCREW - M12 X 1.75 X 60	2
?	MM0472	LOCKWASHER - M12	32
?	MM0462	FLAT WASHER - M12	32
?	MM0179	NUT - M12 X 1.75	32
?	EC0191	BUSHING, CONDULET	2
?	WA5483	BUSHING, SNAP	1
?	EG1083	ENTRANCE	1
?	MM0580	CAPSCREW - M6 X 1.00 X 14	6
?	MM0469	LOCKWASHER - M6	12
?	VH5017	STRAP, TIE	20
?	MM0331	MACHINE SCREW - M3 X .5 X 20	4
?	MM0376	LOCKWASHER - M3 (EXT TOOTH)	4
?	EB9882	ARC BARRIER ASSEMBLY	5
?	EB9878	BRACKET	10
?	EB9880	SHEET	5
?	VC5344	FLAT WASHER - #10	20
?	MM0373	NUT - M5	20
?	EC1120	BRACKET	4
?	MM0176	NUT - M6 X 1.00	4
?	VW6069	BOLT, INSULATED	6
?	VW6070	SHIELD	12
?	PB6200	ADAPTOR	3
?	PB4255	MODULE, SUPPRESSION	3
?	PB4265	ADAPTOR	3
?	WA3367	NUT	3
?	MM0619	CAPSCREW - M12 X 1.75 X 35	24
?	VJ9357	BAR, BUS	3
?	TY5603	BAR, BUS	3
?	MM0621	CAPSCREW - M12 X 1.75 X 45	4
?	PB6137	CONTACTOR ASSEMBLY	3
?	VE1317	CONTACTOR (SEE INDEX) (1)/(2)	3	64069
?	VE3530	SENSOR, POSITION (SEE INDEX)	3	64035
?	MM0622	CAPSCREW - M12 X 1.75 X 50	2
?	EG9964	BRACKET	2
?	MM0459	FLAT WASHER - M6	8
?	PC0326	MOUNT, SANDWICH	2
?	EG9966	ROD, THREADED	2
?	TD1549	NUT - 1/4" - 20NC	2
?	SP8417	FLAT WASHER - 1/4"	2
?	VN2882	NUT, JAM - 1/4" - 20NC	2
?	DC3584	LOCKWASHER - 1/4"	2
?	MM0582	CAPSCREW - M6 X 1.00 X 20	4
?	TR8320	MACHINE SCREW	3
?	TY4272	INSULATOR	1
?	AK0938	NOTE: (1) AK0938 CONTACTOR TIP KIT (STANDARD).	-1
?	AK0939	(2) AK0939 CONTACTOR TIP KIT (SILVER-TIP).	-1
