AFE47-BZ 730E S/N A30246-A30256 HAMMERSLEY IRON

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	EG6833	HANDRAIL, FRONT - R.H.	1
?	EG8958	DECK - R.H.	1
?	MM0075	CAPSCREW - M20 X 2.50 X 60	4
?	EC7594	FLAT WASHER - M20 (HARDENED)	16
?	MM0697	LOCKNUT - M20 X 2.50	8
?	MM0010	CAPSCREW - M12 X 1.75 X 25	6
?	C1549	FLAT WASHER - 1/2"	6
?	MM0472	LOCKWASHER - M12	6
?		LADDER ASSM - R.H. (SEE FIG 55050)	1	55050
?	MM0024	CAPSCREW - M10 X 1.50 X 16	3
?	MM0713	FLAT WASHER - M10 (HARDENED)	9
?	MM0471	LOCKWASHER - M10	16
?	EB2104	STRAP, MOUNTING - R.H.	1
?	EB2105	STRAP, MOUNTING - L.H.	1
?	MM0047	CAPSCREW - M10 X 1.50 X 30	6
?	EB2899	WASHER	6
?	EB2102	BAR	2
?	MM0064	CAPSCREW - M10 X 1.50 X 45	4
?	MM0178	NUT - M10 X 1.50	7
?	EC6553	STEP	1
?	EC7589	PLATE	1
?	MM0091	CAPSCREW - M20 X 2.50 X 80	4
?	ED5893	STEP, EXTENSION - R.H.	1
?	MM0050	CAPSCREW - M10 X 1.50 X 35	3
?	EC7588	BRACKET	1
?	D104556	BUMPER	1
?	VN9780	FLAT WASHER - 9/16"	1
?	TR6643	NUT - 1/2" - 13NC	1
?	MM0707	FLAT WASHER - M20 (HARDENED)	4
?		NOTE: NS = NOT SHOWN	-1
?	EC1375	DECK, REAR CENTER - R.H.	1
?	MM0031	CAPSCREW - M20 X 2.50 X 45	4
?	EC7594	FLAT WASHER - M20 (HARDENED)	8
?	MM0697	LOCKNUT - M20 X 2.50	4

Komatsu AFE47-BZ 730E S/N A30246-A30256 HAMMERSLEY IRON parts catalog PDF

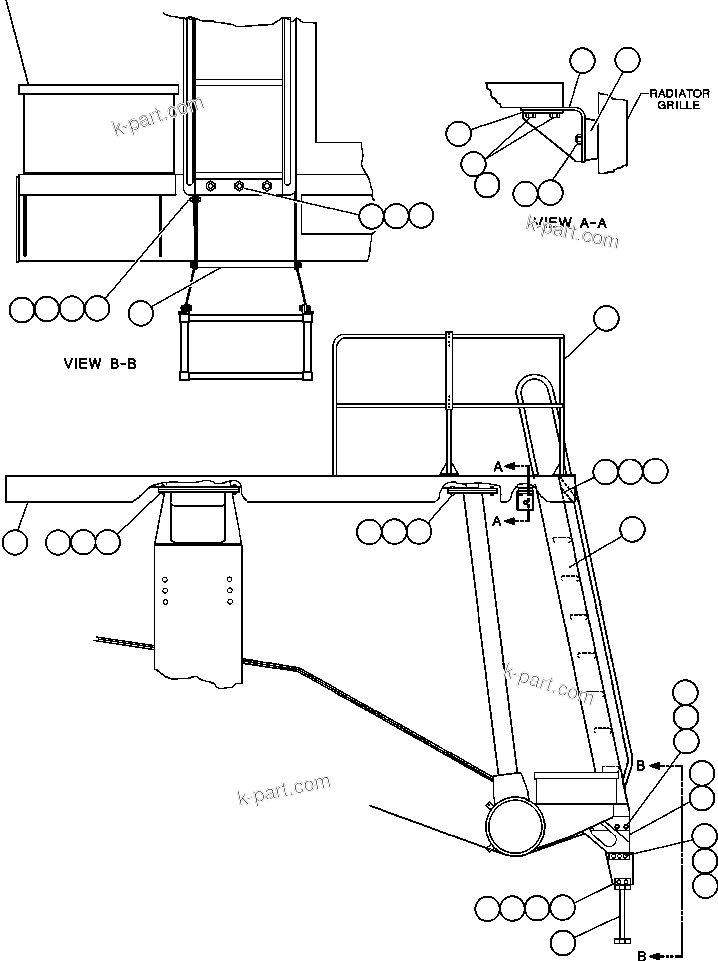

RIGHT DECK, HANDRAIL & LADDER (55533) in AFE47-BZ 730E S/N A30246-A30256 HAMMERSLEY IRON. Diagram image and parts list.
