AFE47-BZ 730E S/N A30246-A30256 HAMMERSLEY IRON

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	EK2827	HANDRAIL, FRONT - L.H.	1
?	TB8588	ROD, FORMED	2
?	EG8963	CHAIN	2
?	EG9339	HANDRAIL, REAR - L.H.	1
?	EK1361	DECK - L.H.	1
?	MM0091	CAPSCREW - M20 X 2.50 X 80	6
?	EC7594	FLAT WASHER - M20 (HARDENED)	12
?	MM0697	LOCKNUT - M20 X 2.50	6
?	MM0461	FLAT WASHER - M10	12
?	MM0693	LOCKNUT - M10 X 1.50	3
?	MM0032	CAPSCREW - M12 X 1.75 X 30	3
?	MM0720	NUT - M12 X 1.75	3
?	ED5897	STEP EXTENSION - L.H.	1
?	MM0024	CAPSCREW - M10 X 1.50 X 16	3
?	MM0050	CAPSCREW - M10 X 1.50 X 35	3
?	MM0713	FLAT WASHER - M10 (HARDENED)	9
?	EC6553	STEP	1
?	MM0064	CAPSCREW - M10 X 1.50 X 45	4
?	EB2102	BAR	2
?	MM0471	LOCKWASHER - M10	16
?	MM0178	NUT - M10 X 1.50	3
?	EB2104	STRAP, MOUNTING - R.H.	1
?	EB2105	STRAP, MOUNTING - L.H.	1
?	MM0047	CAPSCREW - M10 X 1.50 X 30	6
?	EB2899	WASHER	2
?	EJ8801	LINK, CONNECTOR	2
?	PC1253	MIRROR ASSEMBLY - L.H.	1
?	XA2124	CHANNEL, RETAINING	1
?	XA2123	BACK, MIRROR	1
?	XA2125	GLASS, MIRROR	1
?	XA2127	NUT - 1/4" - 20NC	2
?	XA2126	CAPSCREW - 1/4" - 20NC X 3/4"	2
?	VN9772	LOCKWASHER - 1/4"	2
?		LADDER ASSM - L.H. (SEE FIG 55050)	1	55050
?	MM0010	CAPSCREW - M12 X 1.75 X 25	3
?	MM0462	FLAT WASHER - M12	6
?	C1549	FLAT WASHER - 1/2"	3
?	MM0472	LOCKWASHER - M12	6
?	MM0032	CAPSCREW - M12 X 1.75 X 30	2
?	MM0462	FLAT WASHER - M12	2
?	D104556	BUMPER	1
?	EC7588	BRACKET	1
?	EC7589	PLATE	1
?	MM0031	CAPSCREW - M20 X 2.50 X 45	4
?	MM0707	FLAT WASHER - M20 (HARDENED)	4
?	VN9780	FLAT WASHER - 9/16"	1
?	TR6643	NUT - 1/2" - 13NC	1
?	EG9340	HANDRAIL	1
?	TD0791	CAPSCREW - 3/8" - 16NC X 1 1/4"	4
?	WA4726	FLAT WASHER - 3/8"	4
?	TC1233	NUT - 3/8" - 16NC	4
?	MM0608	CAPSCREW - M10 X 1.50 X 40	3
?	EG6836	HANDRAIL	1
?	EG9341	HANDRAIL	1
?	EG8984	MOUNT, MIRROR	1
?		(NOT USED THIS APPLICATION)	-1
?	MM0617	CAPSCREW - M12 X 1.75 X 25	22
?	MM0714	FLAT WASHER - M12	22
?	MM0472	LOCKWASHER - M12	22
?		NOTE: NS = NOT SHOWN	-1
?	EC1826	DECK, CENTER REAR - L.H.	1
?	MM0075	CAPSCREW - M20 X 2.50 X 60	2
?	EC7594	FLAT WASHER - M20 (HARDENED)	4
?	MM0697	LOCKNUT - M20 X 2.50	4
?	MM0085	CAPSCREW - M20 X 2.50 X 70	2

Komatsu AFE47-BZ 730E S/N A30246-A30256 HAMMERSLEY IRON parts catalog PDF

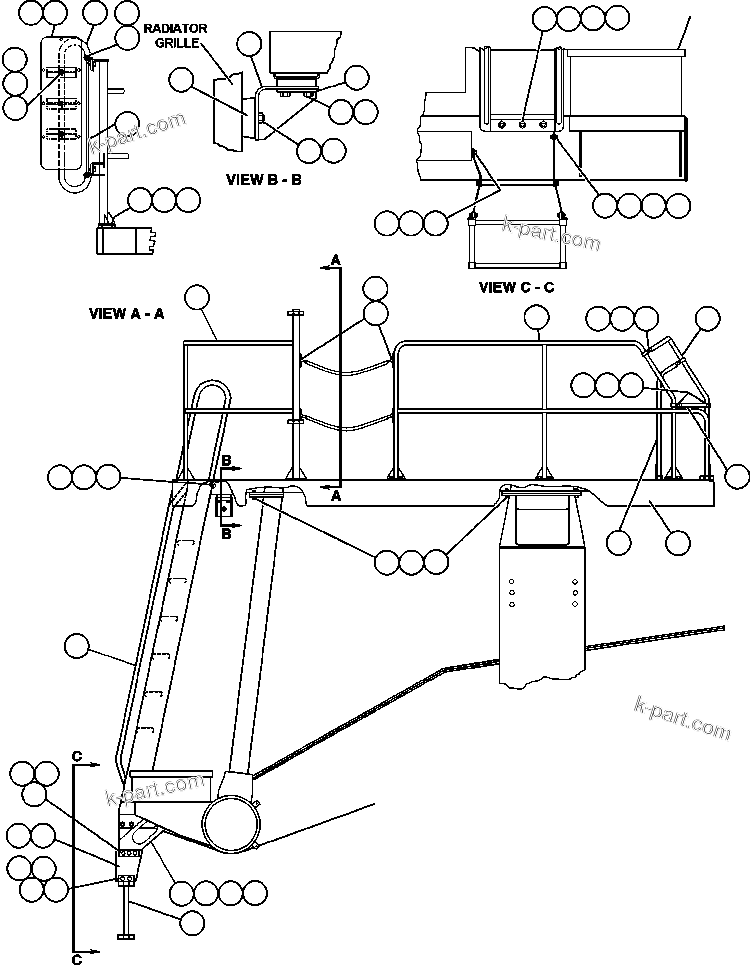

LEFT DECK, LADDER & STEP (55595) in AFE47-BZ 730E S/N A30246-A30256 HAMMERSLEY IRON. Diagram image and parts list.
