AFE47-BZ 730E S/N A30246-A30256 HAMMERSLEY IRON

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	EJ8292	RADIO MODULE (SEE FIG 55567) (1)	1	55567
?	PB9985	ANTENNA, RADIO	1
?	PB9957	CABLE, ANTENNA EXTENSION	1
?	PB9916	CABLE, ANTENNA EXTENSION	1
?	EJ7875	ADAPTOR, ANTENNA	1
?	EJ6463	HARNESS - CAB OVERHEAD	1
?	EJ5735	WARNING LIGHTS MODULE (SEE FIG 55567) (1)	1	55567
?	SM5478	AIR FILTER RESTRICTOR GAUGE MODULE (SEE FIG 55567)(1)	1	55567
?	PB5957	KNOB	1
?	EK4210	CLOSURE, FRONT	1
?	PB8658	SCREW, MACHINE	1
?	PB9829	SCREW, PANEL	4
?	MM0207	LOCKWASHER - M6 (INTERNAL TOOTH)	6
?	31127R1	CAPSCREW - M6 X 12	6
?	WB2818	CHART, GRADE SPEED	1
?	MM0347	MACHINE SCREW - M5 X .8 X 8	4
?	PB8319	LOUVER	8
?	PB8320	ADAPTOR	8
?	SM2406	SET SCREW - #6 - 32NC X 5/16"	16
?	SM2323	TRIM, EDGE	1
?	PC1066	HEATER/AIR CONDITIONER ASSM (SEE INDEX)	1	55554
?	PB9506	ELECTRONIC TREADLE - THROTTLE (SEE INDEX)	1	41060
?	PB9506	ELECTRONIC TREADLE - RETARDER (SEE INDEX)	1	41060
?	PC0415	BRAKE VALVE PEDAL ASSEMBLY (SEE INDEX)	1	55082
?	ED2863	RHEOSTAT, SWITCH CONTROL	1
?	EK2770	SHEET, FORMED	2
?	SM0926	SCREW, METRIC	10
?	SM5244	VISOR, LENS	2
?		NOTE: NS = NOT SHOWN	-1
?	SM4403	FLOOR MAT - FRONT	1
?	SM2187	FLOOR MAT - SEAT	1
?	SM2188	FLOOR MAT - REAR	1
?	SM5435	MAT, THRESHOLD	2
?	VW5312	COUNTER, LOAD (OPTIONAL)	1
?	1126558C1	HOLDER, DOCUMENT	1
?	31127R1	CAPSCREW - M6 X 12	4
?	SM5245	CHAIN, BEADED	1
?	SM5048	PLATE, BENT (FOOT REST)	1
?	EG6459	PLATE, FLOOR COVER	2
?		NOTE: (1) NOT SOLD AS AN ASSEMBLY.	-1
?		ORDER INDIVIDUAL COMPONENT PARTS.	-1

Komatsu AFE47-BZ 730E S/N A30246-A30256 HAMMERSLEY IRON parts catalog PDF

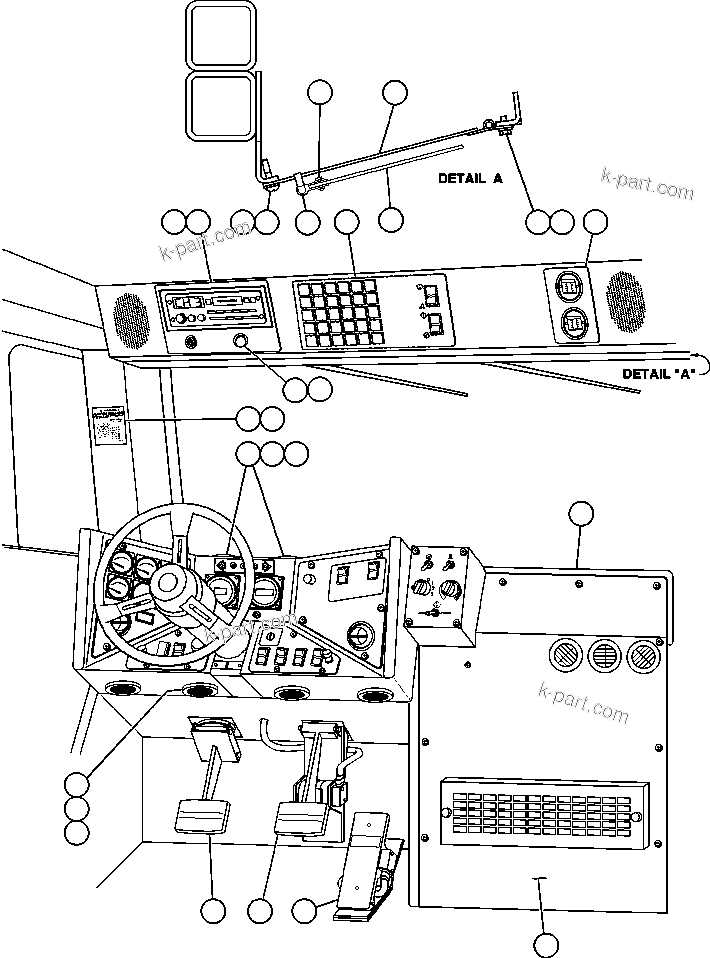

OPERATOR CONTROLS & OVERHEAD PANEL (41741) in AFE47-BZ 730E S/N A30246-A30256 HAMMERSLEY IRON. Diagram image and parts list.
