AFE47-BZ 730E S/N A30246-A30256 HAMMERSLEY IRON

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	PB8658	SCREW, MACHINE - M6	5
?	EJ8292	RADIO MODULE (1)	1
?	SM5332	PLATE, MOUNTING	1
?	SM2701	OVERLAY, LEXAN	1
?	PC1164	RADIO	1
?	PB9985	ANTENNA, RADIO (LEFT DECK, FRONT OUTSIDE CORNER)	1
?	PB9957	CABLE, ANTENNA EXTENSION	1
?	EJ7875	ADAPTOR, ANTENNA	1
?	SM4491	SUPPORT	1
?	EJ1556	HARNESS, RADIO INTERFACE	1
?	PC0441	SONALARM, SIGNAL	1
?	PB8658	SCREW, MACHINE - M6	5
?	EJ5735	WARNING LIGHTS MODULE (1)	1
?	SM2712	PLATE, WARNING LIGHT	1
?	SM2819	OVERLAY, LEXAN	1
?	PB6972	SWITCH, ROCKER	1
?	PB9723	SWITCH, ROCKER	1
?	SM4443	FLASHER ASSEMBLY - CLEAR LENS	30
?	VL6234	BULB, LAMP	30
?	EJ2141	HARNESS, LAMP SOCKET	1
?	EH9352	SOCKET, IND LIGHTS	1
?	SM4473	DECAL, CYLINDER OIL TEMPERATURE	1
?	SM5083	DECAL, CYLINDER OIL LEVEL	1
?	SM5052	DECAL, PARKING BRAKE	1
?	SM4315	DECAL, NOT USED	7
?	SM5073	DECAL, SERVICE ENGINE	1
?	SM5065	DECAL, STEERING SYSTEM PRESSURE	1
?	SM5056	DECAL, BRAKE	1
?	SM4470	DECAL, BACKUP LIGHTS	1
?	SM5086	DECAL, WHEEL MOTOR TEMP LIMIT	1
?	SM5053	DECAL, ACCUM PRE-CHARGE PRESSURE	1
?	SM5089	DECAL, CIRCUIT BREAKER TRIPPED	1
?	SM5075	DECAL, BODY-UP	1
?	SM5072	DECAL, 5 MINUTE ENGINE SHUTDOWN TIMER	1
?	SM5093	DECAL, BLOWER FAULT	1
?	SM4472	DECAL, NO POWER	1
?	SM5084	DECAL, CYLINDER OIL FILTER	1
?	SM5070	DECAL, RETARDER	1
?	SM5071	DECAL, RETARD SPEED CONTROL	1
?	SM5057	DECAL, BRAKE OIL PRESSURE	1
?	SM5078	DECAL, FUEL	1
?	SM5063	DECAL, ENGINE SHUTDOWN	1
?	SM5076	DECAL, CHECK ENGINE	1
?	EG3303	DECAL, LOW LUBE PRESSURE	1
?	SM5074	DECAL, SERVICE ENGINE	1
?		(NOT USED THIS APPLICATION)	-1
?		(NOT USED THIS APPLICATION)	-1
?	SM2055	PLATE, FORMED	1
?	SM5478	AIR FILTER RESTRICTOR GAUGE MODULE (1)	1
?	SM5854	PLATE, MOUNTING	1
?	PC0389	GAUGE, AIR RESTRICTOR	2
?	SM5853	DECAL, LEXAN	1
?	WA3367	NUT ASSEMBLY	10
?	SM5201	SPEAKER	2
?	MM0207	LOCKWASHER - M6	17
?	MM0176	NUT - M6 X 1.00	17
?	MM0206	LOCKWASHER - M5 (INTERNAL TOOTH)	1
?	MM0373	NUT - M5 X .80	1
?	31127R1	CAPSCREW - M6 X 12	6
?	PC0251	SONALARM, SIGNAL	1
?	SM5122	BRACKET	1
?	PB4767	RELAY	1
?	PB9050	HOSE, VACUUM	2
?	PB9051	FITTING, SINGLE BARB W/FILTER	2
?	PB9056	FITTING, COMPRESSION - FEMALE	2
?	PC0257	MODULE, DIMMER CONTROL	1
?	EK4227	DASH, OVERHEAD	1
?	SM2682	SCREW, COUNTER SUNK	3
?	TA0602	FITTING, NYLON	2
?	TA0603	FITTING, NYLON	2
?	TM4777	TUBE, NYLON	2
?		NOTE: (1) NOT SOLD AS AN ASSEMBLY.	-1
?		ORDER INDIVIDUAL COMPONENT PARTS.	-1

Komatsu AFE47-BZ 730E S/N A30246-A30256 HAMMERSLEY IRON parts catalog PDF

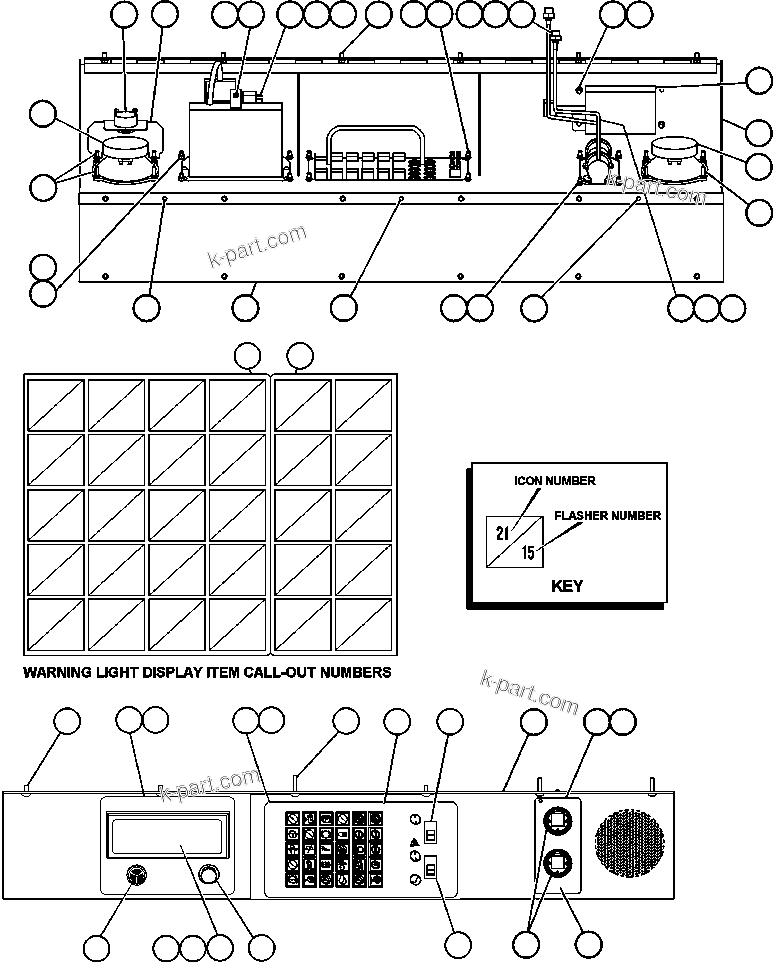

OVERHEAD DASH MODULE (55567) in AFE47-BZ 730E S/N A30246-A30256 HAMMERSLEY IRON. Diagram image and parts list.
