AFE47-EF 730E S/N A30445 & A30446 ORAPA MINE

? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?		SLEEVE, SEAL (1)/(2)	1
?		CLUTCH COIL (1)	1
?		PULLEY & BERING (1)/(3)/(6)/(8)	1
?		SEAL, RETAINER (1)/(2)	1
?		SEAL, BEARING (1)/(2)	1
?		CLUTCH DRIVE W/ KEY (1)/(3)/(5)	1
?		SHAFT LOCK NUT (1)/(3)/(5)/(6)	1
?		DUST COVER (1)/(7)	1
?		MACHINE SCREW (1)/(7)	3
?		HIGH PRESSURE RELIEF VALVE & O-RING (1)/(4)	1
?		NOTE:(NS=NOT SHOWN)	-1
?		SEAL, BEARING (1)/(2)	1
?		O-RING (1)/(2)	1
?		RETAINING RING - COIL (1)/(3)	1
?	PC2212	OIL, REFRIGERANT - 8 OZ.	2
?		NOTE: (1) NOT SERVICED SEPARATELY.	-1
?	XA3357	(2) INCLUDED IN XA3357 SEAL KIT.	-1
?	XA3365	(3) INCLUDED IN XA3365 CLUTCH & PULLEY KIT.	-1
?	XA3351	(4) INCLUDED IN XA3351 HIGH PRESSURE RELIEF VALVE	-1
?		& O-RING KIT.	-1
?	XA3354	(5) INCLUDED IN XA3354 CLUTCH DRIVER KIT.	-1
?	XA3366	(6) INCLUDED IN XA3366 PULLEY & BEARING KIT.	-1
?	XA3364	(7) INCLUDED IN XA3364 DUST COVER KIT.	-1
?	XA3357	(8) REPLACEMENT OF THIS COMPONENT REQUIRES	-1
?		PURCHASE OF XA3357 SEAL KIT.	-1

Komatsu AFE47-EF 730E S/N A30445 & A30446 ORAPA MINE parts catalog PDF

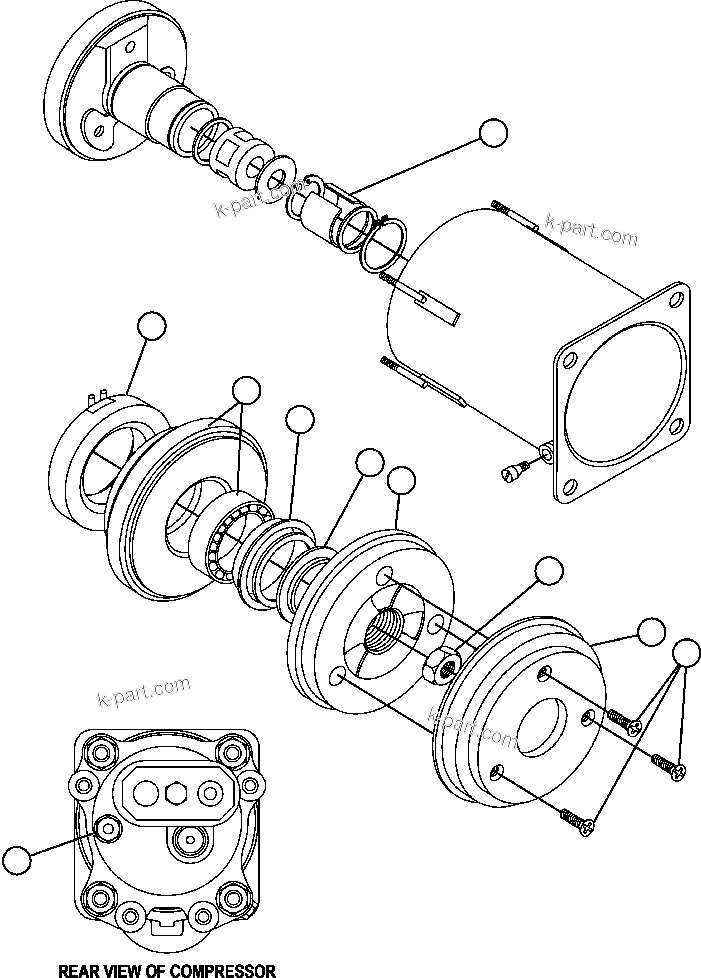

AIR CONDITIONING COMPRESSOR (PC1848) (55781) in AFE47-EF 730E S/N A30445 & A30446 ORAPA MINE. Diagram image and parts list.
