AFE47-EF 730E S/N A30445 & A30446 ORAPA MINE

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	TD1548	CAPSCREW - 1/4" - 20NC X 5/8"	4
?	SP8417	FLAT WASHER - 1/4"	4
?	DC3584	LOCKWASHER - 1/4"	4
?	EL4788	BOX, JUNCTION (SEE INDEX)	1	55739
?	WB0983	GRIP, CORD	1
?	VZ2691	LOCKNUT, CONDULET - 1 1/4"	1
?	EK7638	HARNESS, CAB/JUNCTION BOX	1
?	TC1565	CLAMP - 15/16" I.D.	5
?	VN9907	CLAMP - 5/8" I.D.	3
?	MM0461	FLAT WASHER - M10	3
?	MM0471	LOCKWASHER - M10	3
?	MM0178	NUT - M10 X 1.50	3
?	WA5460	CLAMP, HEAVY DUTY	1
?	EJ4037	COVER, PLATE CONNECTOR HOLE	1
?	PB9829	SCREW, PAN - M6 X 1.00 X 16	12
?	SM6073	PLATE, CONNECTOR	1
?	SM6068	PLATE, MOUNTING	1
?	SM6066	COVER, BENT PLATE	1
?		(NOT USED THIS APPLICATION)	-1
?	MM0580	CAPSCREW - M6 X 1.00 X 14	3
?	MM0016	CAPSCREW - M8 X 1.25 X 16	2
?	MM0460	FLAT WASHER - M8	2
?	PB9862	CAP, PROTECTIVE METAL	1
?	SM2117	PLATE, NUT CONNECTOR	1
?	WA5641	SCREW, MACHINE - #4 - 40NC X 3/8"	4
?	SF0542	SCREW, MACHINE - #4 - 40NC X 5/16"	1
?	VD7129	LOCKWASHER - #4	1
?	VN9717	NUT - #4 - 40NC	1
?	EJ3060	PAYLOAD METER III ASSEMBLY	1
?	VC8762	CAPSCREW - 3/8" - 16NC X 1 1/2"	4
?	TR4436	FLAT WASHER - 3/8"	4
?	TC1231	LOCKWASHER - 3/8"	4
?	SM5049	NUT, SPRING - 3/8" - 16NC	4
?	MM0401	CAPSCREW - M8 X 1.25 X 90	4
?	MM0703	FLAT WASHER - M8	4
?	VZ1368	GRIP, CORD	1
?	EJ4036	ADAPTER	1
?	SM0724	GASKET	1
?	WA5643	SCREW, MACHINE	4
?	EJ9252	ADAPTER, SPEEDOMETER/CAB HARNESS	1
?	EK7639	ATTENUATOR ASSEMBLY	1

Komatsu AFE47-EF 730E S/N A30445 & A30446 ORAPA MINE parts catalog PDF

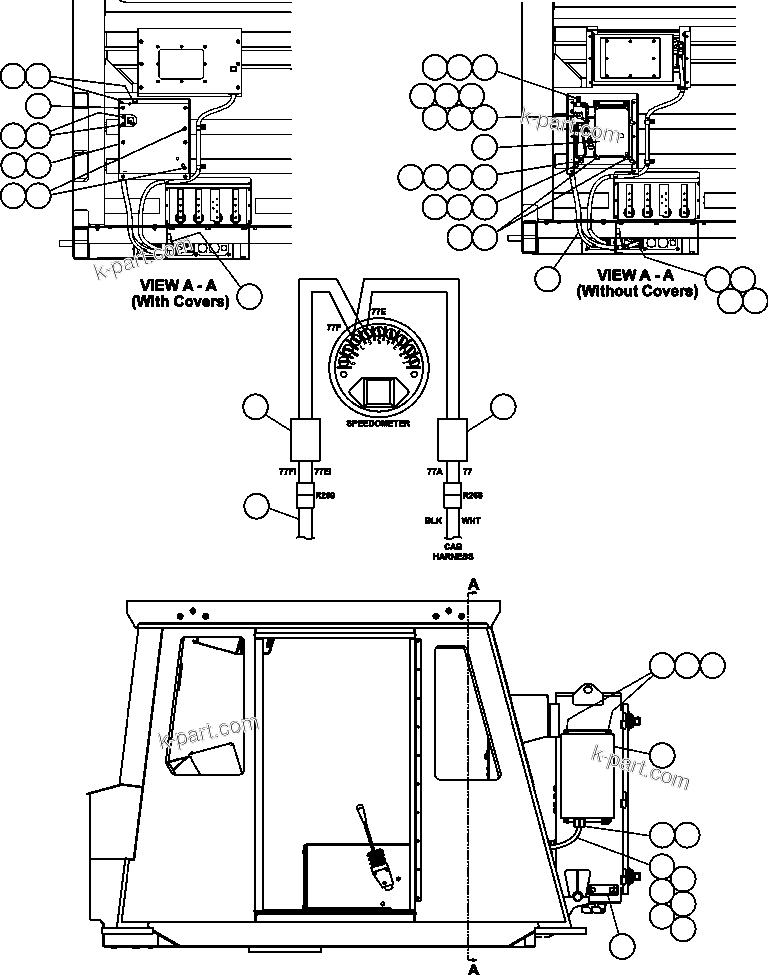

PAYLOAD METER III - CAB (55622) in AFE47-EF 730E S/N A30445 & A30446 ORAPA MINE. Diagram image and parts list.
