AFE47-EF 730E S/N A30445 & A30446 ORAPA MINE

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	TC1565	CLAMP - 15/16" I.D.	6
?	MM0459	FLATWASHER - M6	4
?	MM0176	NUT - M6 X 1.00	4
?	HA0442	HOSE	1
?	WB0690	FITTING, 37 DEG FLARE, STRAIGHT ADAPTER	1
?	WA4509	FITTING, 37 DEG FLARE, STRAIGHT ADAPTER	1
?	WB0561	FITTING, 37 DEG FLARE, TEE	1
?	WA4705	CLAMP, HYDRA ZORB - 5/8"	2
?	WA4704	CLAMP, HYDRA ZORB - 1/2"	12
?	WA4706	CLAMP, HYDRA ZORB - 3/4"	3
?	EC1705	SUPPORT, TUBE	1
?	MM0047	CAPSCREW - M10 X 1.50 X 30	6
?	MM0461	FLATWASHER - M10	16
?	MM0178	NUT - M10 X 1.50	8
?	HA0193	HOSE	2
?	VC9818	HOSE	1
?	VN9913	CLAMP - 1 1/16" I.D.	1
?	MM0620	CAPSCREW - M12 X 1.75 X 40	4
?	MM0714	FLAT WASHER - M12	8
?	MM0179	NUT - M12 X 1.75	4
?	TR9441	CLAMP - 1 1/4" I.D.	1
?	VH5953	HOSE	1
?	HA1474	HOSE	1
?	EC1703	SUPPORT, TUBE	2
?	EC1672	TUBE	1
?	EB7575	TUBE	1
?	EJ1507	TUBE	1
?	HA5568	HOSE	1
?	EG8255	TUBE	1
?	EC1673	TUBE	1
?	EG8256	TUBE	1
?	WB0468	FITTING, STRAIGHT	1
?	PB1989	ADAPTER, PAN PLUG	1
?	HA0912	HOSE	1
?	VZ4843	TYRAP	2
?	WB0263	FITTING, 37 DEG FLARE, 90 DEG ELBOW	1
?	TD2036	HOSE	1
?	EC1674	TUBE	1

Komatsu AFE47-EF 730E S/N A30445 & A30446 ORAPA MINE parts catalog PDF

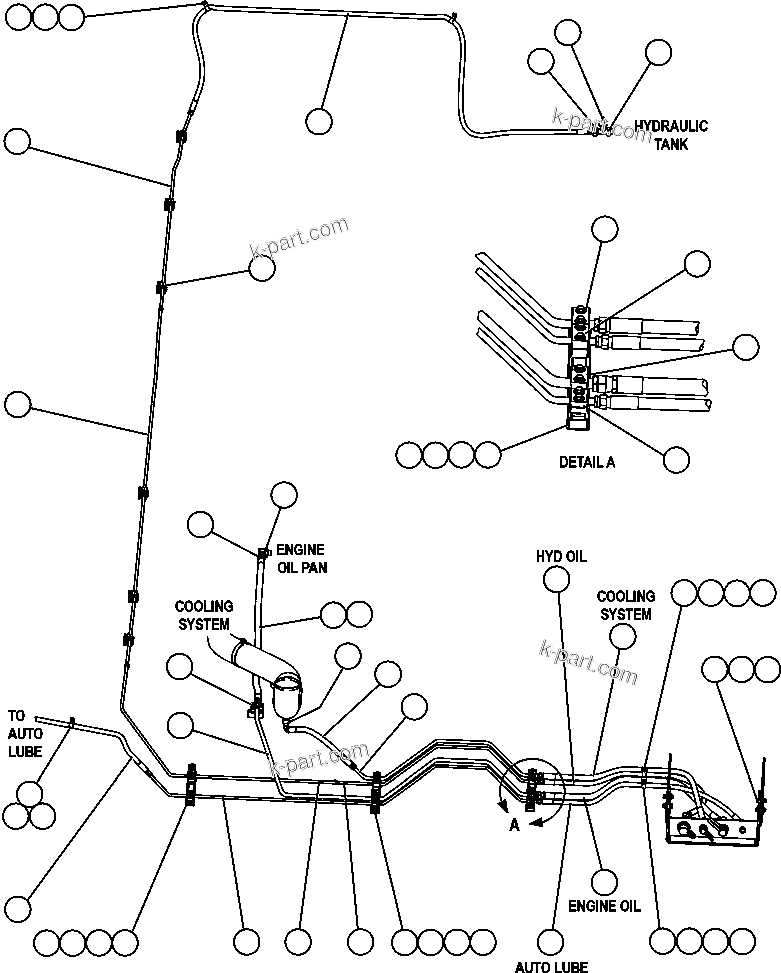

SERVICE CENTER - L.H. (55859) in AFE47-EF 730E S/N A30445 & A30446 ORAPA MINE. Diagram image and parts list.
