AFE47-DW 730E S/N A30410-A30411 & A30417 LOMAS BAYAS

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	EH1235	FILTER ASSEMBLY	1
?	PB9666	FILTER, HI-PRESSURE (SEE INDEX)	1	55039
?	PB7034	SEAL, CABLE	2
?	PB7740	SLEEVE, TERMINAL	2
?	PB7743	CONNECTOR, FEMALE	1
?	C1613	CAPSCREW - 1/2" - 13NC X 1 1/4"	3
?	WA0360	FLAT WASHER - 1/2" (HARDENED)	3
?	TF8090	CLAMP, SPLIT	4
?	VG9095	O-RING	2
?	C1614	CAPSCREW - 1/2" - 13NC X 1 1/2"	8
?	C1540	LOCKWASHER - 1/2"	9
?	HA7695	HOSE	1
?	PB6770	COUPLING, QUICK DISCONNECT - MALE	1
?	162144	CAP, DUST	1
?	PB5862	COUPLING MAKE QUICK DISCONNECT	1
?	TF5194	O-RING	1
?	WB0993	SWIVEL, SPLIT	1
?	HA4273	HOSE	1
?	PC0243	VALVE, UNLOADER (SEE INDEX)	1	55512
?	HA5194	HOSE	1
?	WB0580	FITTING, STRAIGHT	1
?	HA7723	HOSE	1
?	EH8338	TUBE	1
?	VN9914	CLAMP	1
?	C1523	NUT - 1/2" - 13NC	3
?	HA7333	HOSE	1
?	WB0603	FITTING, STRAIGHT	4
?	PC1842	VALVE, BLEEDDOWN MANIFOLD (SEE INDEX)	1	55735
?	WB0510	FITTING, ELBOW - 90 DEG	1
?	HA6766	HOSE	1
?	WB0508	FITTING, ELBOW - 90 DEG	1
?	HA6769	HOSE	5
?	WB0600	FITTING, STRAIGHT	1
?	HA4416	HOSE	1
?	EG7185	TUBE	1
?	TF3237	CLAMP, SPLIT	2
?	VG9096	O-RING	1
?	C1609	CAPSCREW - 7/16" - 14NC X 1 1/2"	4
?	C5775	LOCKWASHER - 7/16"	7
?	PB9932	VALVE, FLOW AMPLIFIER (SEE INDEX)	1	35461
?	WB0574	ADAPTER, STRAIGHT	1
?	HA7334	HOSE	1
?	HA2463	HOSE	2
?	WA4710	CLAMP - 1 1/2"	2
?	WB0522	FITTING, ELBOW - 90 DEG	1
?	WB0378	FITTING, ELBOW - 90 DEG	1
?	WB0599	FITTING, STRAIGHT	2
?	WA3568	FITTING, TUBE	1
?	VZ1061	ADAPTER	1
?	WB0560	FITTING, TEE	1
?	HA3737	HOSE	1
?		(NOT USED THIS APPLICATION)	-1
?		(NOT USED THIS APPLICATION)	-1
?	HA1896	HOSE	1
?	WB0524	FITTING, 37 DEG FLARE, ELBOW	1
?	WB0542	FITTING, ELBOW - 45 DEG	1
?	VN3308	ADAPTER, SWIVEL	1
?	PB4683	COUPLING, QUICK DISCONNECT	1
?	PB4685	COUPLING, HYDRAULIC	1
?	C1628	CAPSCREW - 1/2" - 13NC X 7"	2
?	WA0360	FLAT WASHER - 1/2"	2
?	WA4855	FITTING, ELBOW - 90 DEG	1
?	WB0584	FITTING, STRAIGHT	3
?	C1608	CAPSCREW - 7/16" - 14NC X 1"	3
?	PB1255	FLAT WASHER - 7/16"	3
?	WB0537	FITTING, ELBOW - 45 DEG	1
?	TF8077	CLAMP, SPLIT	6
?	VG9097	O-RING	3
?	C5754	CAPSCREW - 3/8" - 16NC X 5 1/2"	2
?	WA0720	FLAT WASHER - 3/8"	2
?	C1603	CAPSCREW - 3/8" - 16NC X 1 1/4"	12
?	C0312	LOCKWASHER - 3/8"	12
?	WB0601	FITTING, STRAIGHT	1
?	TA2968	PLUG, DUST	1
?	PB4686	PLUG, DUST	1
?	PB6528	COUPLING, DIAGNOSTIC	1
?	PB6041	CAP, DUST	1
?	EL7354	WASHER, SPECIAL	2
?	WA0386	NUT - 3/8" - 16NC	2

Komatsu AFE47-DW 730E S/N A30410-A30411 & A30417 LOMAS BAYAS parts catalog PDF

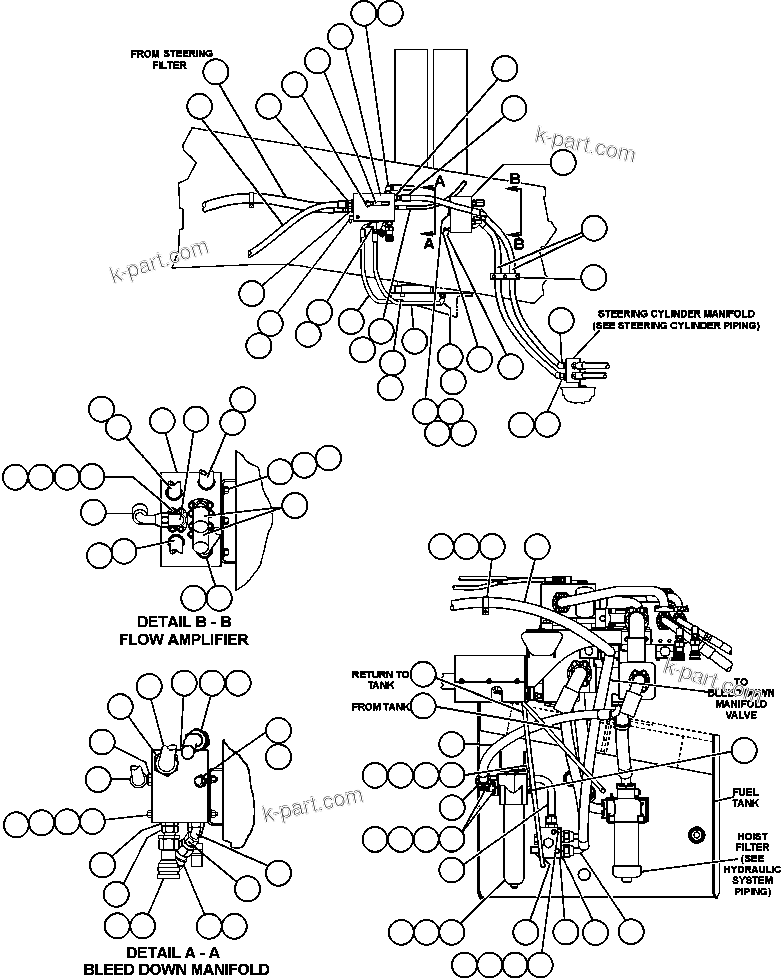

STEERING SYSTEM PIPING (55793) in AFE47-DW 730E S/N A30410-A30411 & A30417 LOMAS BAYAS. Diagram image and parts list.
