AFE47-DW 730E S/N A30410-A30411 & A30417 LOMAS BAYAS

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?		MANIFOLD (1)	1
?	VE2509	PILOT UNLOADING VALVE CARTRIDGE	1
?	VE2442	O-RING (2)	1
?	TF1144	O-RING (2)	1
?	VS7012	RING, BACKUP (2)	1
?	VE1486	O-RING (2)	1
?	VJ7368	RING, BACKUP (2)	1
?	VE2510	DIFFERENTIAL PRESSURE SENSING VALVE CARTRIDGE	1
?	VE2460	O-RING (3)	1
?	VE2459	WASHER, BACKUP (3)	2
?	WA0076	O-RING (3)	1
?	VE2516	WASHER, BACKUP (3)	2
?	VE7531	O-RING (3)	1
?	VE2517	WASHER, BACKUP (3)	2
?	WA0075	O-RING (3)	1
?	BF4119	CHECK VALVE CARTRIDGE	1
?	VE2460	O-RING	1
?	WA0076	O-RING	1
?	VE2459	WASHER, BACKUP	1
?	BF4585	POPPET	1
?	BF4586	SPRING	1
?	VE4810	DISC, ORIFICE	1
?	BF4120	PLUG, ORIFICE	1
?	VE3841	PLUG, BOSS O-RING	1
?		NOTE: (1) NOT SERVICED SEPARATELY.	-1
?	RK0217	(2) INCLUDED IN RK0217 SEAL KIT.	-1
?	RK2201	(3) INCLUDED IN RK2201 SEAL KIT.	-1

Komatsu AFE47-DW 730E S/N A30410-A30411 & A30417 LOMAS BAYAS parts catalog PDF

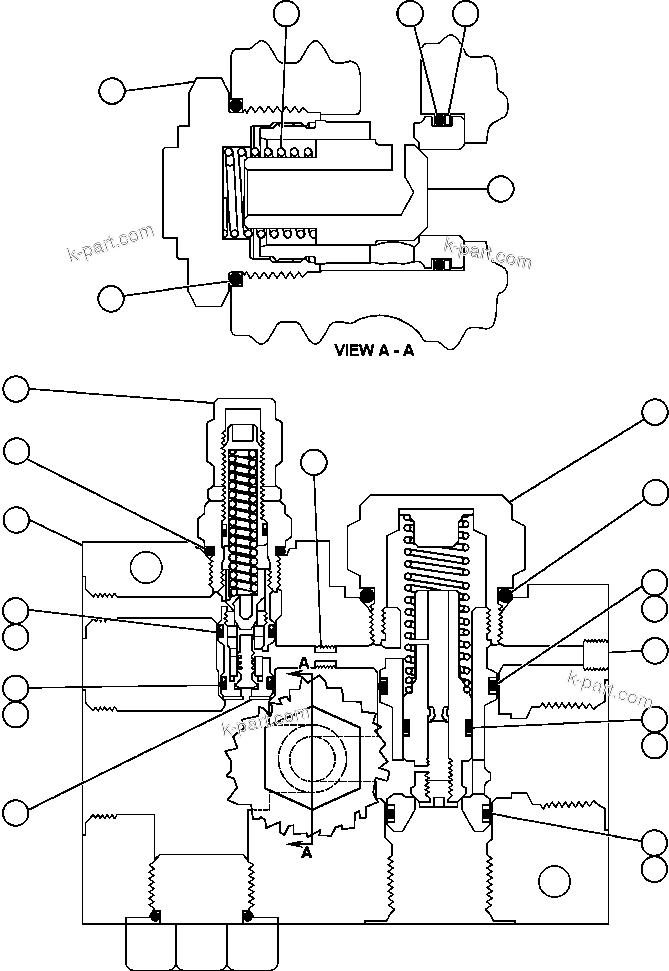

UNLOADER VALVE ASSEMBLY (PC0243) (55512) in AFE47-DW 730E S/N A30410-A30411 & A30417 LOMAS BAYAS. Diagram image and parts list.
