AFE47-FQ 730E S/N A30546 - A30549 ROSSING URANIUM

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	EJ9514	BOX, JUNCTION	1
?	EF3015	PLATE, NAME - TB33	1
?	EF3017	PLATE, NAME - TB35	1
?	EC8819	PLATE, NAME - RB1	1
?	EC8821	PLATE, NAME - RB3	1
?	EK3808	RELAY BOARD ASSEMBLY - RB1 (SEE FIG. 55612)	1
?	EK3803	RELAY BOARD ASSEMBLY - RB3 (SEE FIG. 55612)	1
?	EK3811	RELAY BOARD ASSEMBLY - RB5 (SEE FIG.55612)	1
?	EC8823	PLATE, NAME - RB5	1
?	TZ7541	PLATE, NAME - GB1	1
?	MM0007	CAPSCREW - M6 X 1.00 X 12	4
?	TA7409	STAND-OFF, INSULATED	2
?	DC3584	LOCKWASHER - 1/4"	2
?	SP8417	FLAT WASHER - 1/4"	2
?	SH7597	CAPSCREW - 1/4" - 20NC X 1/2"	2
?	TD1549	NUT - 1/4" - 20NC	2
?	TZ7377	PLATE, NAME - 24 VDC	1
?	TZ7378	PLATE, NAME - 12 VDC	1
?	WB2414	STRIP, CIRCUIT ID	1
?	EB7418	BAR, BUS	3
?	MM0373	NUT - M5 X 0.80	8
?	MM0206	LOCKWASHER - M5	8
?	MM0459	FLAT WASHER - M6	20
?	TR4436	FLAT WASHER - 3/8"	4
?	TC1231	LOCKWASHER - 3/8"	4
?	TC1233	NUT - 3/8" - 16NC	4
?	EF3008	PANEL, ELECTRICAL	1
?	EF3013	PLATE, NAME - TB36	1
?	WB2413	STRIP, CIRCUIT ID	1
?	EF3016	PLATE, NAME TB34	1
?	WA3367	NUT ASSEMBLY	100
?	VM2951	MACHINE SCREW - #6 - 32NC X 5/16"	8
?	PB5732	BOARD, TERMINAL	5
?	WB2909	STRIP, CIRCUIT ID	1
?	WB2212	STRIP, CIRCUIT ID	1
?	ED8154	HARNESS - RB3	1
?	MM0469	LOCKWASHER - M6	12
?	EF3014	PLATE, NAME - TB32	1
?	VS0035	LIGHT, DOME	1
?	SR6747	BULB, LIGHT	1
?	VF2231	MACHINE SCREW - #10 - 24NC X 3/8"	3
?	DC3101	LOCKWASHER - #10	3
?	ED8151	HARNESS - RB1	1
?	ED8152	HARNESS - RB3	1
?	ED8155	HARNESS - RB5	1
?	SM3046	NUT - M6	12
?	EJ9227	DIODE	1
?	WB2089	STRIP, CIRCUIT ID	1

Komatsu AFE47-FQ 730E S/N A30546 - A30549 ROSSING URANIUM parts catalog PDF

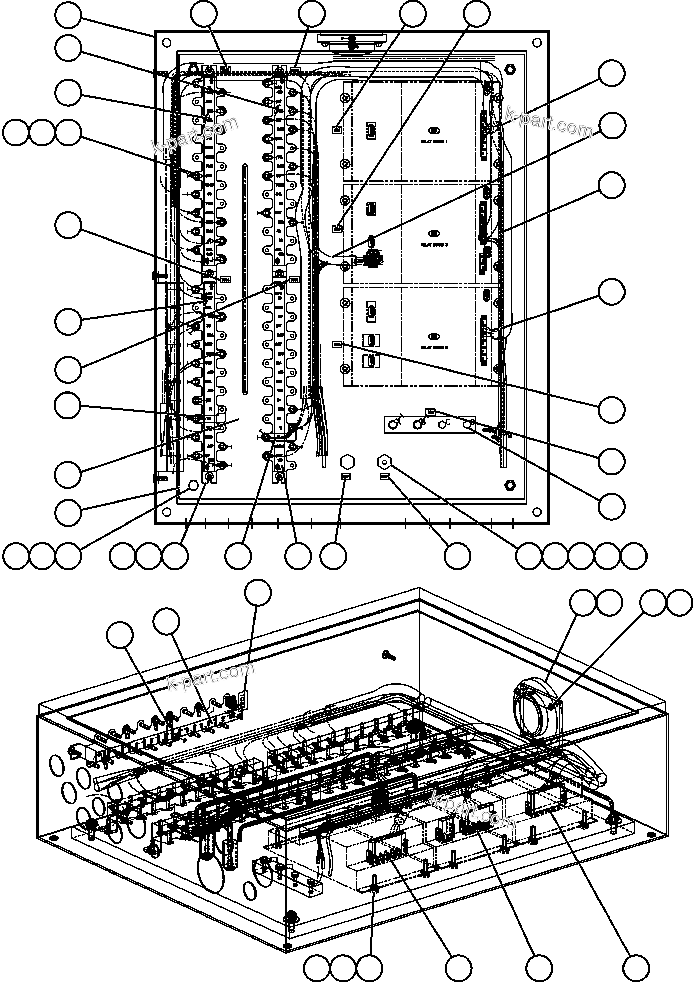

JUNCTION BOX - 24V (EK3500) (55787) in AFE47-FQ 730E S/N A30546 - A30549 ROSSING URANIUM. Diagram image and parts list.
