AFE47-FQ 730E S/N A30546 - A30549 ROSSING URANIUM

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	PB8371	DOUBLE FACED LIGHT ASSEMBLY	2
?	VE8105	LENS, CLEAR	4
?	VZ1912	BULB	2
?	VE8106	GASKET, LENS	4
?	VE5107	CAPACITOR	2
?	TF6376	MACHINE SCREW - #10 - 24NC X 1 1/4"	2
?	DC3101	LOCKWASHER - #10	2
?	DF0017	NUT - #10 - 24NC	2
?	VS8432	BRACKET	2
?	TV4966	SCREW, MACHINE - #10 - 32NF	2
?	DF4944	LOCKWASHER - #6	2
?	HE5125	FLAT WASHER - #6	2
?	EC7253	PLATE, NAME - CAP1	1
?	TZ7540	PLATE, NAME - GB2	1
?	WB2367	PLATE, NAME - TB21	1
?	EB7417	BAR, BUS	20
?	WB2339	STRIP, CIRCUIT ID	1
?	PB5732	BOARD, TERMINAL	3
?	MM0206	LOCKWASHER - M5	6
?	MM0459	FLAT WASHER - M6	6
?	MM0373	NUT - M5 X 0.80	6
?	WB2338	STRIP, CIRCUIT ID	1
?	WB2366	PLATE, NAME - TB20B	1
?	EB7418	BAR, BUS	1
?	WB2337	STRIP, CIRCUIT ID	1
?	WB2365	PLATE, NAME - TB20A	1
?	EC7254	PLATE, NAME - CAP2	1
?		(NOT USED THIS APPLICATION)	-1

Komatsu AFE47-FQ 730E S/N A30546 - A30549 ROSSING URANIUM parts catalog PDF

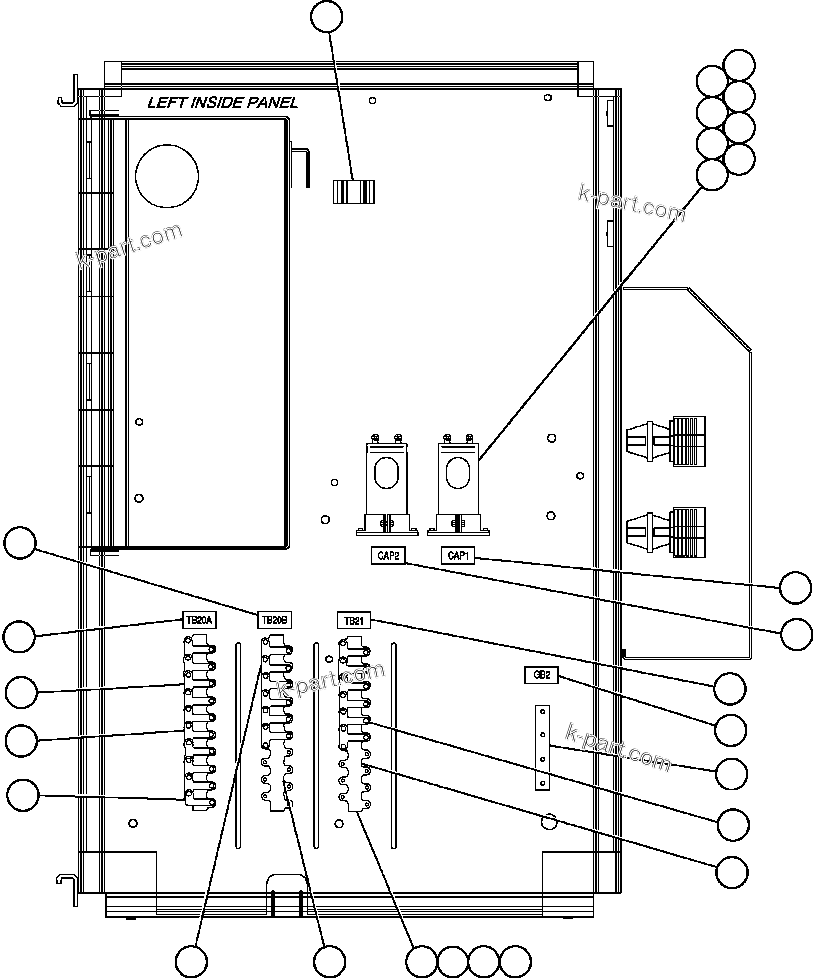

CONTROL CABINET ASSEMBLY - R.H. SIDE ( 2/2) (55203) in AFE47-FQ 730E S/N A30546 - A30549 ROSSING URANIUM. Diagram image and parts list.
