AFE47-FE 730E S/N A30512 - A30517 ROSSING URANIUM

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	WB0508	FITTING, 37 DEG FLARE, 90 DEG ELBOW	3
?	HA6502	HOSE	3
?	HA7723	HOSE	1
?	C1540	LOCKWASHER - 1/2"	12
?	C1614	CAPSCREW - 1/2" - 13NC X 1 1/2"	12
?	VG9095	O-RING	1
?	TF8090	CLAMP, SPLIT FLANGE - 1 1/2"	2
?	TF3231	CLAMP, SPLIT FLANGE - 2"	4
?	WA0187	O-RING	2
?	VN9037	CAPSCREW - 3/8" - 16NC X 1 1/4"	8
?	WA0386	NUT 3/8" - 16NC	8
?	C0312	LOCKWASHER - 3/8"	20
?	SG7814	CAPSCREW - 3/8" - 24NF X 1 1/4"	8
?	HA7608	HOSE	1
?	HA7695	HOSE	1
?	HA7454	HOSE	1
?	HA7339	HOSE	1
?	WB0377	FITTING, 37 DEG FLARE, 90 DEG ELBOW	1
?	WB0516	FITTING, 37 DEG FLARE, 90 DEG ELBOW	1
?	PB9452	FLANGE, STRAIGHT	1
?	PB9451	FLANGE, ELBOW	1
?	TF3237	CLAMP, SPLIT FLANGE - 1 1/4"	4
?	C5775	LOCKWASHER - 7/16"	8
?	C1609	CAPSCREW - 7/16" - 14NC X 1 1/2"	8
?	VG9096	O-RING	3
?	PB7947	ADAPTER, FLANGE	1
?	HA4755	HOSE	1
?	HA7431	HOSE	2
?	HA2463	HOSE	2
?	VM0313	PLUG, O-RING BOSS - 1/4" O.D.	3
?	WA4712	CLAMP	2
?	VL9963	CLAMP, SPLIT FLANGE - 3"	6
?	C1629	CAPSCREW - 5/8" - 11NC X 1 3/4"	4
?	C1541	LOCKWASHER - 5/8"	16
?	WA0237	O-RING	6
?	EF8352	FLANGE, ADAPTER - 3"	2
?	C1633	CAPSCREW - 5/8" - 11NC X 2 3/4"	4
?	HA7508	HOSE	1
?	EG1218	FLANGE, ADAPTER - 3"	1
?	C1634	CAPSCREW - 5/8" - 11NC X 3"	8
?	HA7469	HOSE	1
?	WB0581	FITTING, 37 DEG FLARE, STRAIGHT ADAPTER	1
?	HA7340	HOSE	2
?	HA3069	HOSE	1
?	HA7459	HOSE	1
?	HA7608	HOSE	1
?	C1604	CAPSCREW - 3/8" - 16NC X 1 1/2"	4
?	TF8077	CLAMP, SPLIT FLANGE - 1"	2
?	HA7509	HOSE	1
?	WB0522	FITTING, 37 DEG FLARE, 90 DEG ELBOW	1
?	HA1920	HOSE	1
?	VG9097	O-RING	2
?	HA4755	HOSE	1
?	VN6799	CAPSCREW - 7/16" - 14NC X 3 1/2"	4
?	VJ0826	LOCKWASHER - 7/16"	4
?	EG1636	ORIFICE	1
?	VN6903	CLAMP, SPLIT FLANGE - 3 1/2"	2
?	EG5531	ADAPTER, FLANGE - 3 1/2"	1
?	WA0241	O-RING	2

Komatsu AFE47-FE 730E S/N A30512 - A30517 ROSSING URANIUM parts catalog PDF

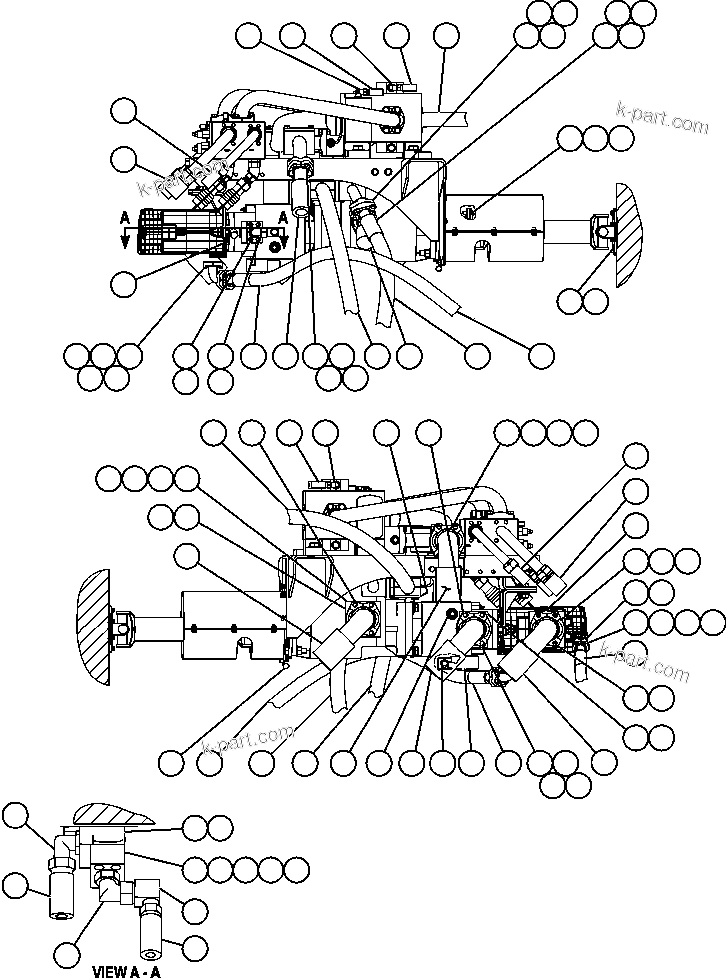

HYDRAULIC SYSTEM PIPING - PUMP MODULE - 1 (55792) in AFE47-FE 730E S/N A30512 - A30517 ROSSING URANIUM. Diagram image and parts list.
