AFE47-FE 730E S/N A30512 - A30517 ROSSING URANIUM

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	PC1767	LUBE PUMP ASSEMBLY (SEE INDEX)	1	55688
?	WB0505	FITTING, 37 DEG FLARE, 90 DEG ELBOW	1
?	HD6331	PLUG	1
?	LA0598	VENT VALVE ASSEMBLY (SEE INDEX)	1	55522
?	HA7554	HOSE	1
?	WB0268	FITTING, 37 DEG FLARE, 90 DEG ELBOW	2
?	PC0811	FILTER (SEE INDEX)	1	41606
?	HA6765	HOSE	1
?	WB0499	FITTING, 37 DEG FLARE, 90 DEG ELBOW	1
?	HA7322	HOSE	1
?	HA6734	HOSE	1
?	HA7321	HOSE	1
?	PC1976	SWITCH PRESSURE	1
?	EJ2138	HARNESS, AUTOMATIC LUBRICATION	1
?	VZ0598	TYRAP	2
?	F6769	FITTING, PIPE	1
?	SD5164	FITTING, PIPE	1
?	CD8419	CLAMP, WORM DRIVE	1
?	TG9242	CONNECTOR	1
?	MM0582	CAPSCREW - M6 X 1.00 X 20	4
?	MM0469	LOCKWASHER - M6	4
?	MM0459	FLAT WASHER - M6	4
?	EC2790	PLATE, MOUNTING	1
?	TD1809	CAPSCREW - 1/4" - 20NC X 3/4"	4
?	DC3584	LOCKWASHER - 1/4" (ZINC)	4
?	SP8417	FLAT WASHER - 1/4"	4
?	LA0605	UNLOADER, SAFETY	1
?	HC1580	BUSHING, PIPE	1
?	VY6787	TEE	1
?	WB0466	FITTING, 37 DEG FLARE, STRAIGHT ADAPTER	1

Komatsu AFE47-FE 730E S/N A30512 - A30517 ROSSING URANIUM parts catalog PDF

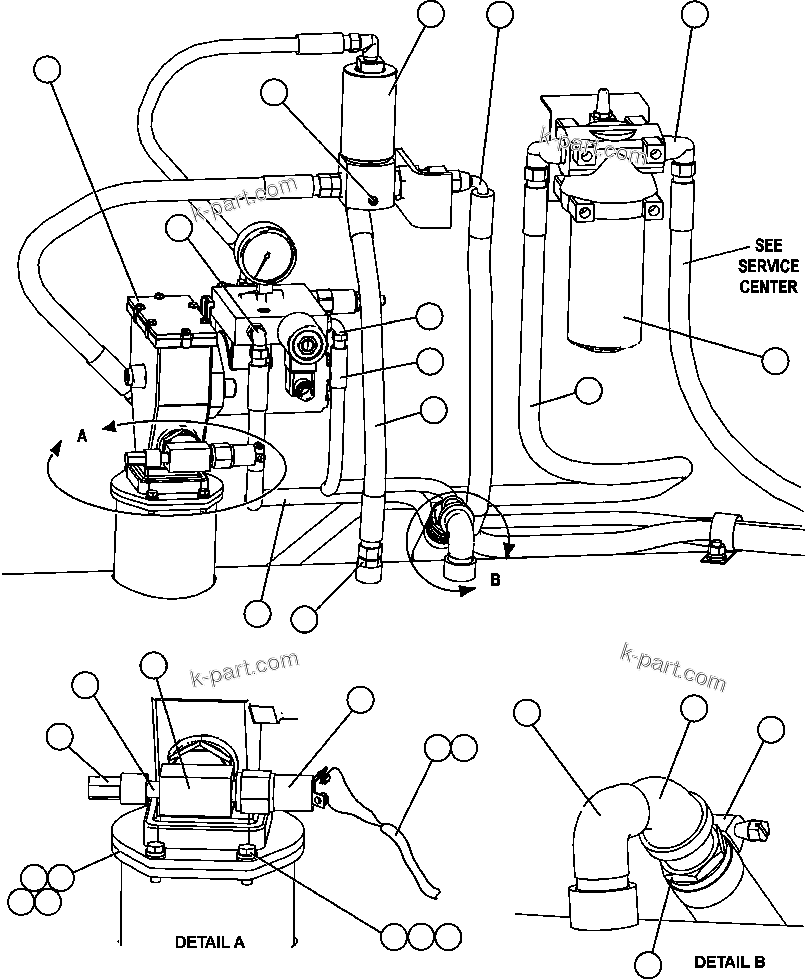

AUTOMATIC LUBRICATION - PUMP INSTALLATION (55848) in AFE47-FE 730E S/N A30512 - A30517 ROSSING URANIUM. Diagram image and parts list.
