AFE48-AU 930E-2 S/N A30098 & A30100 BARRICK

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	VE9058	CAPSCREW (1)	4
?	BF2590	WASHER	4
?	VE9421	RETAINER, SLEEVE	-1
?	VE9418	PLUG	1
?	VE9406	PACKING (1)	1
?	VE8088	SEAL (1)	2
?	VE1395	PLUNGER (1)	2
?	EF5752	SPOOL, REGULATING	2
?	VE9415	SLEEVE (1)	2
?	VE9401	SPRING, SPOOL (1)	2
?	BF2597	SEAT, SPRING	2
?	VE9402	SPRING, REGULATOR (1)	2
?	BF2597	SEAT	2
?	BF2893	PLUNGER	2
?	BF2894	SLEEVE	2
?	BF2891	BODY, VALVE (1)	1
?	WA0019	O-RING	4
?	BF2896	PLUG - #8 SAE	2
?	BF2895	BODY, MANIFOLD	1
?	BF2897	PLUG - #4 SAE	2
?	BF2898	CAPSCREW, SOCKET HD	2
?	BF2465	CONNECTOR ASSEMBLY	1
?	BF2876	DIFFERENTIAL SWITCH ASSEMBLY (SEE INDEX)	1	60117A
?	VE9407	RING, BACKUP (1)	2
?	VE8083	RING, BACKUP (1)	4
?	TC9899	O-RING	2
?	BF3557	SPRING	2
?		NOTE: (1) NOT SERVICED SEPARATELY.	-1

Komatsu AFE48-AU 930E-2 S/N A30098 & A30100 BARRICK parts catalog PDF

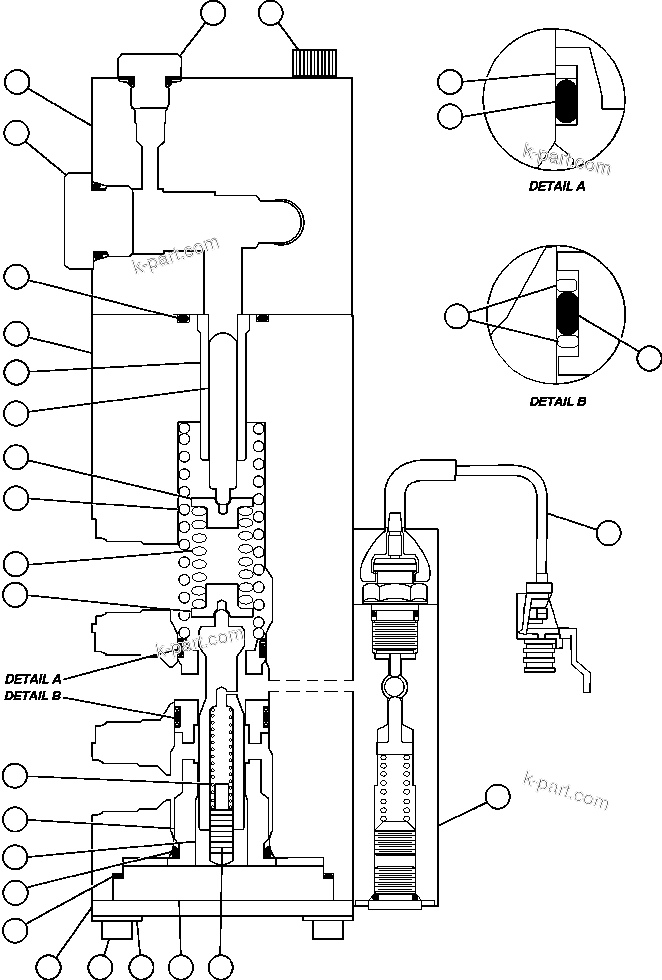

DUAL RELAY VALVE (PC0105) (60125) in AFE48-AU 930E-2 S/N A30098 & A30100 BARRICK. Diagram image and parts list.
