AFE48-AU 930E-2 S/N A30098 & A30100 BARRICK

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	MM0471	LOCKWASHER - M10	21
?	MM0178	NUT - M10	18
?	TG2562	CLAMP	5
?	AK7504	LIGHT - SERVICE ASSEMBLY (SEE FIG 60111)	4	60111
?	EG0659	HARNESS, ENGINE SERVICE LIGHT	2
?	PB9072	CONDULET, SINGLE GANG	4
?	PB4043	GASKET, RUBBER	4
?	TD1548	CAPSCREW - 1/4" - 20NC X 5/8"	8
?	DC3584	LOCKWASHER - 1/4"	8
?	VM1464	MACHINE SCREW - #10 - 24NC X 5/8"	16
?	DC3101	LOCKWASHER - #10	16
?	TZ0880	COVER, SWITCH	1
?	PB8735	SWITCH, MOMENTARY	1
?	VA2826	COVER, SINGLE GANG	3
?	VA2828	SWITCH, FLUSH	2
?	EG7742	HARNESS, RIGHT FRAME RAIL	1
?	MM0343	MACHINE SCREW - M4 X .7 X 16	4
?	MM0378	LOCKWASHER - M4	4
?	EC4422	BRACKET	1
?	MM0581	CAPSCREW - M6 X 1.00 X 16	2
?	MM0459	FLAT WASHER - M6	2
?	MM0469	LOCKWASHER - M6	2
?	MM0604	CAPSCREW - M10 X 1.50 X 20	6
?	EG7741	HARNESS, LEFT PLATFORM	1
?	VN9908	CLAMP	13
?	AK3333	LOW BEAM LIGHT ASSEMBLY (SEE FIG 41107)	2	41107
?	AK3332	HIGH BEAM LIGHT ASSEMBLY (SEE FIG 41107)	2	41107
?	AK7524	FOG LIGHT ASSEMBLY (SEE FIG 41107)	2	41107
?	ED2885	BOX, LIGHT	2
?	MM0593	CAPSCREW - M8 X 1.25 X 20	12
?	MM0460	FLAT WASHER - M8	12
?	MM0470	LOCKWASHER - M8	12
?	MM0349	MACHINE SCREW - M5 X .8 X 12	24
?	MM0379	LOCKWASHER - M5	24
?	MM0373	NUT - M5	24
?	WB2249	DECAL	1
?	WB2248	DECAL	1
?	TZ6931	DECAL	1

Komatsu AFE48-AU 930E-2 S/N A30098 & A30100 BARRICK parts catalog PDF

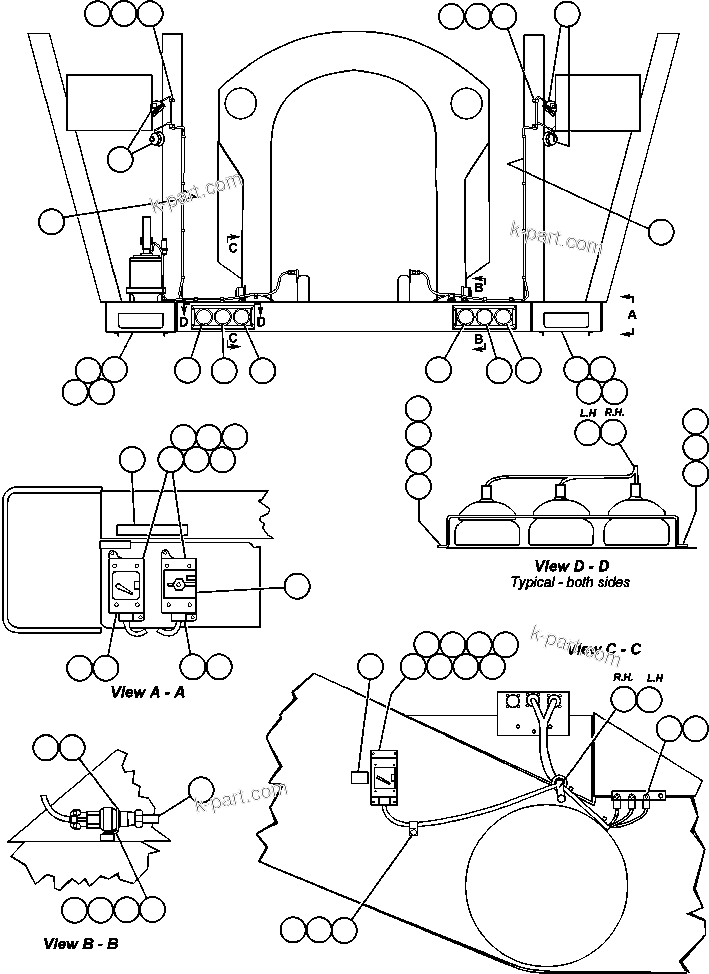

HEADLIGHT AND SERVICE LIGHT WIRING (60241) in AFE48-AU 930E-2 S/N A30098 & A30100 BARRICK. Diagram image and parts list.
