AFE48-AU 930E-2 S/N A30098 & A30100 BARRICK

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	PB8205	LIGHT, BRAKE - RED	1
?	PB8211	LENS, RED	1
?	VZ1912	BULB	1
?	PB8206	LIGHT, RETARD - AMBER	1
?	PB8207	LENS, AMBER	1
?	VZ1912	BULB	1
?		WIPER, WINDSHIELD (SEE FIG 60100)	2	60100
?	SM2052	EYE, LIFTING	4
?	VN9057	CAPSCREW - 1/2" - 13NC X 1 3/4"	12
?	TR5445	LOCKWASHER - 1/2"	12
?	SM2898	GLASS, REAR - L.H.	1
?	SM2748	DOOR ASSEMBLY - L.H. (SEE FIG 60237)	1	60237
?	PB8734	WINDOW ASSEMBLY	1
?	SM2265	GLASS	1
?	SM2017	BAR, TAPPED (STRIKER)	2
?	1139538C1	CAPSCREW	2
?	SM2877	GLASS, FRONT - L.H.	1
?	SM0464	COVER, ACCESS	1
?	ED0108	SEAL, STRIP	1
?	ED0109	SEAL, STRIP	2
?	MM0595	CAPSCREW - M8 X 1.25 X 30	13
?	MM0470	LOCKWASHER - M8	13
?	WA5653	MACHINE SCREW - 1/4" X 1/2"	7
?	VD4460	LOCKNUT - 1/4" - 20NC	7
?	SM0190	HINGE, ACCESS COVER	1
?	SM0189	COVER, HINGED	1
?	PB7001	FILTER, AIR	1
?	ED0110	SEAL, STRIP	1
?	ED0112	SEAL, STRIP	2
?	SM2899	GLASS, WINDSHIELD	1
?	SM4377	CHANNEL, RUBBER	1
?	MM0074	CAPSCREW - M24 X 2.50 X 70	32
?	01643-32460	FLAT WASHER	32

Komatsu AFE48-AU 930E-2 S/N A30098 & A30100 BARRICK parts catalog PDF

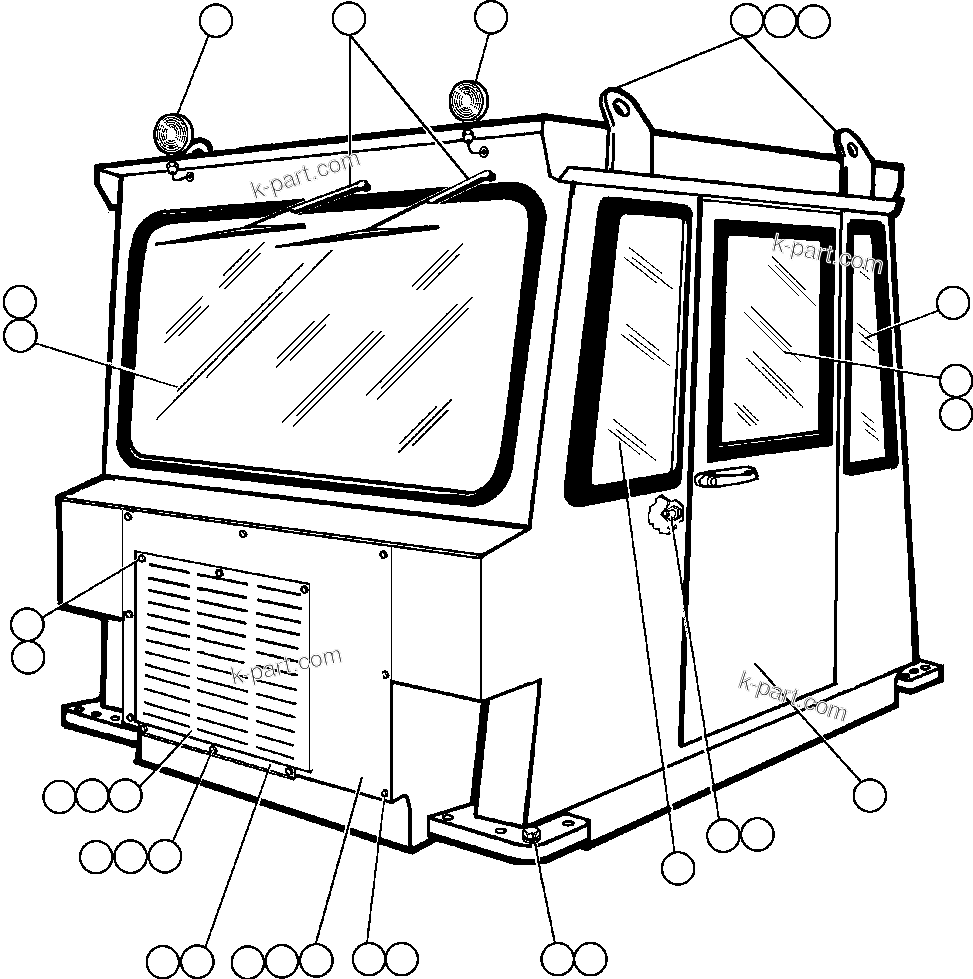

CAB ASSEMBLY (SM2948) (60209) in AFE48-AU 930E-2 S/N A30098 & A30100 BARRICK. Diagram image and parts list.
