AFE48-AU 930E-2 S/N A30098 & A30100 BARRICK

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	SM1094	GLASS, REAR	1
?	SM2045	CHANNEL, RUBBER	1
?	VE5837	LIGHT, DOME	1
?	VE8635	LENS, PLASTIC	1
?	VE8636	SWITCH	1
?	VZ1912	BULB, 24 VOLT	1
?	SM2879	GLASS, FRONT - R.H.	1
?	SM2749	DOOR ASSEMBLY - R.H. (SEE FIG 60238)	1	60238
?	PB8734	WINDOW ASSEMBLY	1
?	SM2265	GLASS	1
?	SM2839	PLATE, CONNECTOR (SEE FIG 60122)	1	60122
?	MM0027	CAPSCREW - M6 X 1.00 X 25	8
?	MM0469	LOCKWASHER - M6	8
?	SM4419	PLATE, ACCESS - R.H. FLOOR	1
?	MM0606	CAPSCREW - M10 X 1.50 X 30	12
?	MM0471	LOCKWASHER - M10	12
?	SM2189	PLATE, ACCESS - L.H. FLOOR	1
?	SM0991	PLATE, FRONT ACCESS - BRAKE & STEERING PIPING	1
?	SM0992	PLATE, REAR ACCESS - BRAKE & STEERING PIPING	1
?	31154R1	CAPSCREW - M8 X 12	14
?	SM2402	SEAL, DOOR	1
?	SM2167	STRAP, DOOR CHECK	2
?	SM2165	BRACKET, DOOR STRAP	2
?	SM2168	CAPSCREW, DRILLED	4
?	SM2322	CLIP, HAIR PIN	4
?	SM2582	SEAL, INNER DOOR	2
?	MM0470	LOCKWASHER - M8	14
?	MM0595	CAPSCREW - M8 X 1.25 X 30	14

Komatsu AFE48-AU 930E-2 S/N A30098 & A30100 BARRICK parts catalog PDF

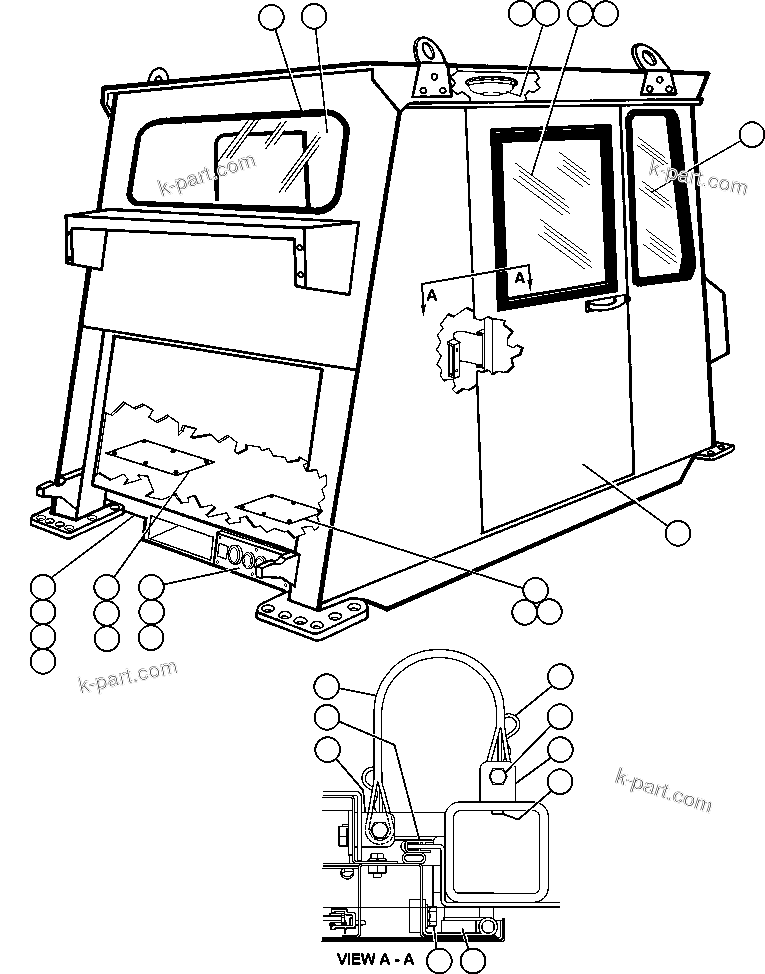

CAB ASSEMBLY - 1 (SM2948) (60271) in AFE48-AU 930E-2 S/N A30098 & A30100 BARRICK. Diagram image and parts list.
