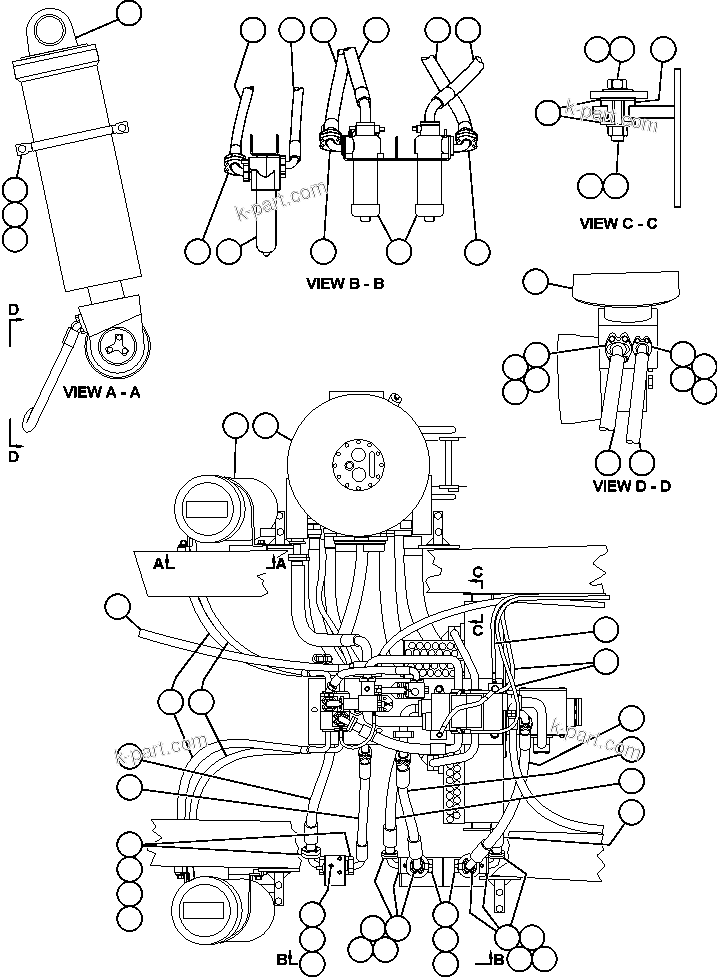

HOIST CYLINDER & FILTER PIPING | AFE48-AL 930E S/N A30111 MORENCI

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE48-AL 930E S/N A30111 MORENCI

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	ED3840	HOIST CYLINDER ASSEMBLY (SEE INDEX) (2)	2	60294
?	EH4449	HOIST CYLINDER ASSEMBLY (SEE INDEX) (3)	2	60304
?	EG5017	HYDRAULIC TANK ASSEMBLY (SEE FIG 60049)	1	60049
?	C1609	CAPSCREW - 7/16" - 14NC X 1 1/2"	4
?	C5775	LOCKWASHER - 7/16"	4
?	TF3237	CLAMP, SPLIT FLANGE	2
?	HA7288	HOSE	1
?	HA7075	HOSE	2
?	C1614	CAPSCREW - 1/2" - 13NC X 1 1/2"	28
?	C1540	LOCKWASHER - 1/2"	28
?	TF3231	CLAMP, SPLIT FLANGE	14
?	WA0187	O-RING	8
?	TL5327	CAPSCREW - 1/2" - 13NC X 1 1/2"	11
?	HA6340	HOSE	2
?	HA6330	HOSE	2
?	HA7405	HOSE	1
?	C1643	CAPSCREW - 3/4" - 10NC X 1 3/4" (1)	4
?	C1542	LOCKWASHER - 3/4" (1)	4
?	TY9627	CLAMP (1)	2
?	PB8318	ELBOW	2
?	EH1241	FILTER ASSEMBLY - (HOIST/BRAKE COOLING)	2
?	AK3570	ELEMENT	1
?	PB7797	SWITCH, DIFFERENTIAL	1
?	TG4083	O-RING, HEAD TO TUBE	1
?	BF2196	RING, BACKUP - HEAT TO TUBE	1
?	PB6770	COUPLING, DIAGNOSTIC	1
?	HA7590	HOSE	1
?	HA6250	HOSE	1
?	HA6253	HOSE	1
?	HA7602	HOSE	1
?	C1637	CAPSCREW - 5/8" - 11NC X 3 3/4"	3
?	WA0361	FLAT WASHER - 5/8" (HARDENED)	3
?	TD5915	FLAT WASHER	6
?	C1541	LOCKWASHER - 5/8"	15
?	C1525	NUT - 5/8" - 11NC	2
?	VG7000	MOUNTING, CENTER BONDED	3
?	EH1242	FILTER ASSEMBLY - (STEERING)	1
?	AK3572	ELEMENT	1
?	PB7797	SWITCH, DIFFERENTIAL	1
?	BF4491	KIT, CORE	1
?	WA0100	O-RING - HEAD TO BOWL	1
?	PB6770	COUPLING, DIAGNOSTIC	1
?	EH1249	TUBE	1
?	HA7588	HOSE	1
?	HA7587	HOSE	1
?	WA0360	FLAT WASHER	11
?	EH1551	PAD, RUBBER	4
?	EH1552	PAD, RUBBER	1
?	C1631	CAPSCREW - 5/8" - 11NC X 2 1/4"	12
?	WA5629	CLAMP, FLANGE	6
?	VG9095	O-RING	3
?		NOTE: (1) USED TO HOLDING CYLINDER FOR SHIPPING ONLY.	-1
?		(2) EFFECTIVE WITH AFE48-AL ONLY.	-1
?		(3) EFFECTIVE WITH AFE48-AM ONLY.	-1
