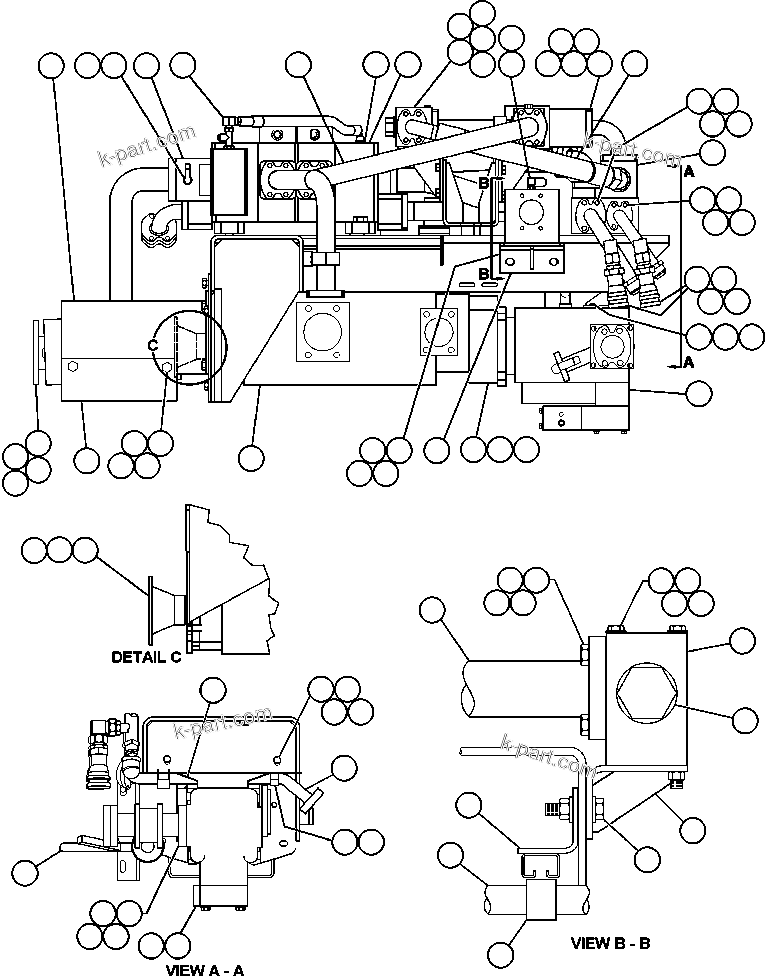

PUMP/HOIST VALVE MODULE - 1 | AFE48-AL 930E S/N A30111 MORENCI

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE48-AL 930E S/N A30111 MORENCI

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	C1540	LOCKWASHER - 1/2"	20
?	C5760	CAPSCREW - 1/2" - 13NC X 5 1/2"	4
?	WA0187	SEAL, O-RING	1
?	TF3231	CLAMP, SPLIT FLANGE	4
?	WB0375	FITTING - 90 DEG	1
?	ED6143	ADAPTOR, FLANGE	1
?	ED6136	BRACKET, SHAFT COVER	1
?	PC0183	PUMP DRIVE SHAFT ASSEMBLY (SEE FIG 41397)	1	41397
?	C0312	LOCKWASHER - 3/8"	12
?	VN9037	CAPSCREW - 3/8" - 16NC X 1 1/4" - G8	8
?	WA0386	NUT - 3/8" - G8	8
?	ED6137	PLATE, BENT	1
?	WA0361	FLAT WASHER - 5/8"	12
?	C1541	LOCKWASHER - 5/8"	4
?	C5762	CAPSCREW - 5/8" - 11NC X 1 1/2"	4
?	VN9952	LOCKNUT - 5/8"	6
?	WA0360	FLAT WASHER - 1/2"	4
?	C1613	CAPSCREW - 1/2" - 13NC X 1 1/4"	2
?	C1523	NUT - 1/2"	2
?	EG9767	BRACKET, ANGLE	1
?	PB9008	PUMP, GEAR (SEE INDEX)	1	60246
?	WA0098	SEAL, O-RING	1
?	VG9058	RING, SEATING	4
?	C1645	CAPSCREW - 3/4" - 10NC X 3"	4
?	PB9933	PUMP, PISTON	1
?	WA3568	FITTING, TUBE	2
?	WB0378	FITTING - 90 DEG	2
?	PB4685	FITTING, QUICK DISCONNECT - FEMALE	2
?	PB4684	QUICK DISCONNECT - MALE	2
?	TA2968	PLUG, DUST	2
?	WA0720	FLAT WASHER - 3/8" (HARDENED)	4
?	DC7524	CAPSCREW - 3/8" - 16NC X 7/8"	2
?	VG9096	SEAL, O-RING	2
?	TF3237	CLAMP, SPLIT FLANGE	4
?	C5775	LOCKWASHER - 7/16"	8
?	C1609	CAPSCREW - 7/16" - 14NC X 1 1/2"	8
?	C1614	CAPSCREW - 1/2" - 16NC X 1 1/2"	12
?	VG9095	SEAL, O-RING	2
?	TF8090	CLAMP, SPLIT FLANGE	4
?	PB9839	VALVE, HOIST (SEE INDEX)	1	60068
?	WB0584	FITTING, STRAIGHT ADAPTOR	1
?	WA4709	CLAMP	1
?	EH1250	TUBE	1
?	EF9606	TUBE	1
?	VH6718	CLAMP, SPLIT FLANGE	4
?	WA0232	SEAL, O-RING	2
?	C1615	CAPSCREW - 1/2" - 13NC X 1 3/4"	4
?	ED6144	MANIFOLD	1
?	VN6422	CAPSCREW - 3/8" - 16NC X 6 1/2"	2
?	C1521	NUT - 3/8"	2
?	TY8353	VALVE, SHUT-OFF (SEE INDEX)	1	40166
?	EG3019	BRACKET	1
?	C1629	CAPSCREW - 5/8" - 11NC X 1 3/4"	2
?	EG8503	TUBE	1
?	ED6147	BRACKET	2
?	PB6528	COUPLING, DIAGNOSTIC	3
?	PB6041	CAP, DUST	3
?	VM0321	PLUG, DRAIN	1
?	MM0621	CAPSCREW - M12 X 1.75 X 45	4
?	MM0472	LOCKWASHER - M12	11
?	C1604	CAPSCREW - 3/8" - 16NC X 1 1/2"	2
?	PC0232	CHECK VALVE ASSEMBLY	1
?	EG8502	TUBE	1
?	HA6315	HOSE	1
?	EG8505	BLOCK	1
?	PB7940	FLANGE, COMPANION	1
?	H0989	JAM NUT - 1" - 14NF	1
?	EB3976	WASHER	1
