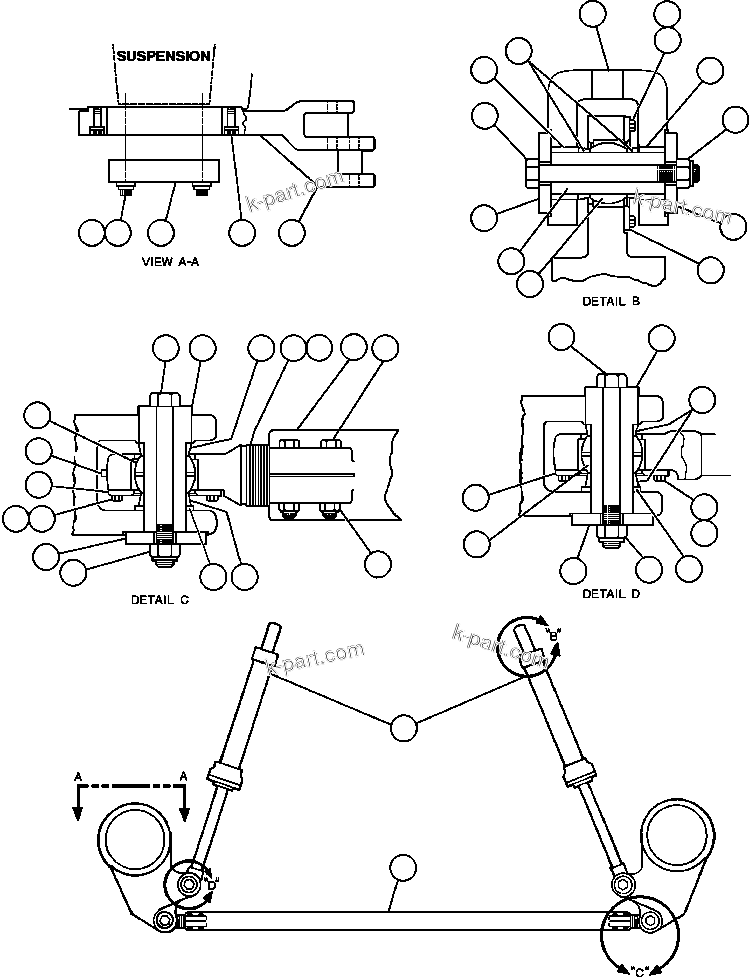

STEERING ARMS & LINKAGE | AFE48-AL 930E S/N A30111 MORENCI

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE48-AL 930E S/N A30111 MORENCI

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	ED0575	TIE ROD ASSEMBLY	1
?	EB8801	ROD, TIE	1
?	ED0573	ROD END, THREADED - L.H.	1
?	ED0572	ROD END, THREADED - R.H.	1
?	VN9140	CAPSCREW - 3/4" - 10NC X 4" - G8	4
?	VL2993	LOCKNUT - 3/4" - G8	4
?	PB8945	BUSHING, BALL (1)/(2)	2
?	ED3846	RETAINER	2
?	C1540	LOCKWASHER - 1/2"	16
?	C1613	CAPSCREW - 1/2" - 13NC X 1 1/4"	16
?	TG3397	ADAPTOR (LUB HOLE)	2
?	ED7913	SPACER (1)/(2)	12
?	EF3387	FLAT WASHER - (HARDENED) (1)/(2)	4
?	EG1106	PIN (1)	4
?	TY2239	RETAINER (1)/(2)	8
?	WB0926	CAPSCREW - 1" - 8NC X 10 1/2" - G8 (1)/(2)	6
?	VH8186	LOCKNUT - 1" - G8 (1)/(2)	6
?	PB8945	BUSHING, BALL	2
?	ED3846	RETAINER	2
?	C1540	LOCKWASHER - 1/2"	16
?	C1613	CAPSCREW - 1/2" - 13NC X 1 1/4"	16
?	ED6520	PIN (2)	2
?	ED7914	SLEEVE, BRACKET - STEERING CYLINDER (2)	4
?	ED5913	MOUNT, STEERING CYLINDER - L.H.	1
?	ED5912	MOUNT, STEERING CYLINDER - R.H.	1
?	EF2753	ARM, STEERING - L.H.	1
?	EF2754	ARM, STEERING - R.H.	1
?	WA4817	CAPSCREW - 1 1/4" 7NC X 5" (12 PT)	38
?	ED7912	PLATE, RETAINER	1
?	TY2149	FLAT WASHER, (HARDENED)	14
?	EH7930	STEERING CYLINDER ASSEMBLY (SEE FIG 60018)	2	60018
?	AK3881	NOTE: (1) INCLUDED IN AK3881 TIE ROD	-1
?		AND STEERING PIN KIT.	-1
?	AK3882	(2) INCLUDED IN AK3882 STEERING CYL PIN KIT.	-1
