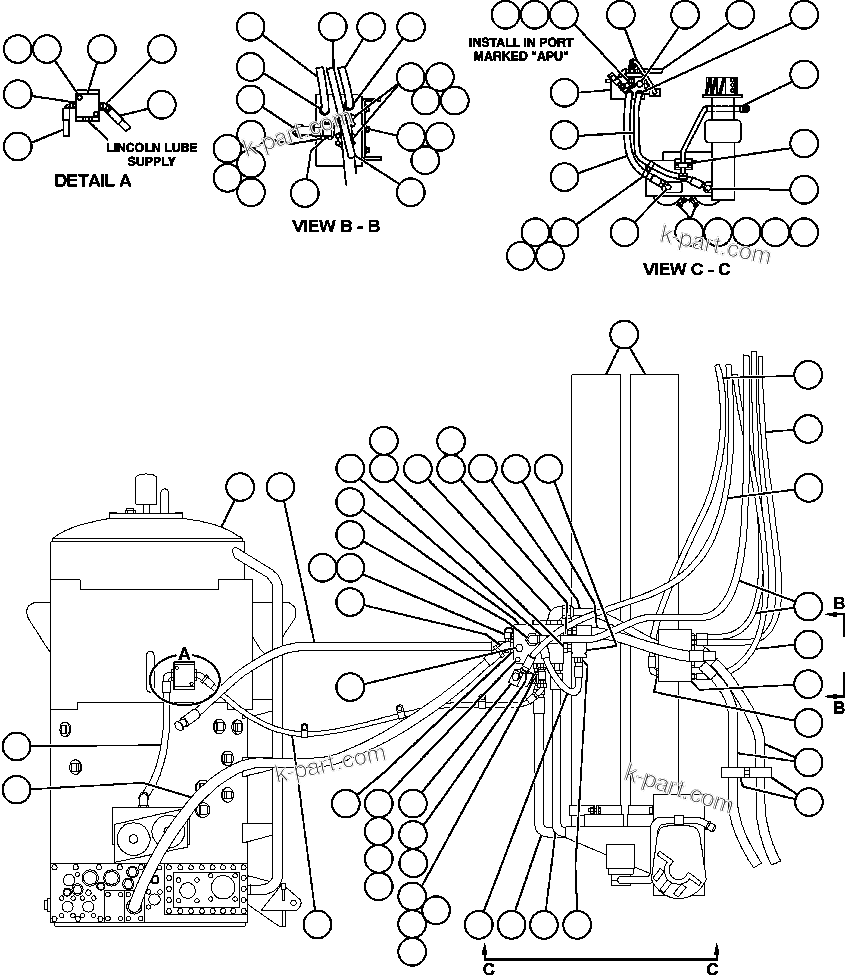

STEERING SYSTEM PIPING - 5 | AFE48-AL 930E S/N A30111 MORENCI

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE48-AL 930E S/N A30111 MORENCI

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	EG5017	TANK ASSEMBLY	1
?	HA7593	HOSE	1
?	HA6227	HOSE	1
?	WB0549	FITTING, O-RING - 45 DEG	1
?	VM0314	PLUG, O-RING	2
?	WB0524	FITTING, O-RING - 90 DEG	1
?	PC0235	VALVE, BLEEDDOWN (SEE INDEX)	1	60184
?	WB0600	FITTING, O-RING - STRAIGHT	2
?	HA4416	HOSE	1
?	HA7423	HOSE	1
?	HA7424	HOSE	1
?	HA6343	HOSE	2
?	HA6763	HOSE	1
?	HA7270	HOSE	2
?	PB9992	FLOW AMPLIFIER (SEE INDEX)	1	35461
?	WB0574	FITTING, O-RING - STRAIGHT	1
?	PC0016	VALVE, SOLENOID	1
?	C5775	LOCKWASHER - 7/16"	3
?	HA6717	HOSE	1
?	WB0384	FITTING, TEE	3
?	EG7185	TUBE	1
?	WB0602	FITTING, O-RING - STRAIGHT	1
?	WB0601	FITTING, O-RING - STRAIGHT	2
?	HA7449	HOSE	1
?	HA5344	HOSE	1
?	HA3278	HOSE	1
?	HA6619	HOSE	1
?	WB0378	FITTING - 90 DEG	1
?	SR7215	CAPSCREW - 1/2" - 13NC X 7 1/2"	2
?	WA0360	FLAT WASHER - 1/2" (HARDENED)	3
?	C1540	LOCKWASHER - 1/2"	2
?	C1523	NUT - 1/2" - 13NC	3
?	TC6058	CLAMP	2
?	C1614	CAPSCREW - 1/2" - 13NC X 1 1/2"	1
?	WB0522	FITTING, O-RING - 90 DEG	1
?	WB0599	FITTING, O-RING - STRAIGHT	3
?	MM0086	CAPSCREW - M16 X 2.00 X 60	8
?	MM0706	FLAT WASHER - M16 (HARDENED)	8
?	MM0474	LOCKWASHER - M16	8
?	MM0181	NUT - M16	8
?	EC3036	CLAMP HALF	4
?	WA4710	CLAMP, HYDRA-ZORB - 1 1/2"	1
?	EG0564	TUBE	1
?	VM0319	PLUG, O-RING	1
?	WB0586	FITTING, O-RING - STRAIGHT	1
?	C1603	CAPSCREW - 3/8" - 16NC X 1 1/4"	16
?	C0312	LOCKWASHER - 3/8"	16
?	PB6528	COUPLING, DIAGNOSTIC	1
?	PB6041	CAP, DUST	1
?	WB0581	FITTING, O-RING - STRAIGHT	1
?	MM0601	CAPSCREW - M8 X 1.25 X 70	2
?	MM0470	LOCKWASHER - M8	2
?	EG1119	BLOCK, MANIFOLD	1
?	WB0537	FITTING, O-RING - 45 DEG	1
?	WA2567	NUT, FITTING CAP	1
?	WB0584	FITTING, O-RING - STRAIGHT	3
?	TF8077	CLAMP, SPLIT FLANGE	6
?	VG9097	O-RING	3
?	C1608	CAPSCREW - 7/16" - 14NC X 1"	3
?	PB1255	FLAT WASHER - 7/16" (HARDENED)	3
?	WA4850	FITTING	1
?	ED3830	ACCUMULATOR ASSEMBLY (SEE INDEX)	2	60017
?	HA6618	HOSE	1
?	WB1065	FITTING, O-RING (SWIVEL)	1
?	PC0008	VALVE, CHECK	1
?	WB1064	CAPSCREW - FITTING	1
?	WB0585	ADAPTOR, FITTING	1
?	WB0387	FITTING, TEE	1
?	WA4710	CLAMP	2
?	WB0583	FITTING, ADAPTOR	2
?	WA5658	FITTING, SWIVEL ADAPTOR	1
?	WB0375	FITTING, 90 DEG	1
