AFE48-AC 930E S/N A30076-A30078 & A30080 SYNCRUDE

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	WB0470	FITTING, STRAIGHT	1
?	EC3328	ACCUMULATOR ASSEMBLY (SEE INDEX)	2	60050
?	WB0297	FITTING - 45 DEG	1
?	HA7418	HOSE	1
?	MM0177	NUT - M8 X 1.25	26
?	MM0460	FLAT WASHER - M8	26
?	VN9913	CLAMP	8
?	HA7419	HOSE (RETURN - TO TANK REAR BRAKES)	1
?	WB0537	FITTING, O-RING - 45 DEG	4
?	HA7080	HOSE	1
?	HA7420	HOSE (SUPPLY - REAR BRAKE APPLY)	1
?	WB0542	FITTING, O-RING - 45 DEG	1
?	WB0535	FITTING, O-RING - 45 DEG	1
?	PB6528	COUPLING, DIAGNOSTIC	2
?	PB6041	CAP, DUST	2
?	HA7421	HOSE (PILOT PRESSURE)	1
?	HA7422	HOSE (PACK BRAKE RELEASE PRESSURE)	1
?	VN9907	CLAMP	11
?	TF6925	CLAMP	40
?	PC0235	VALVE, BLEEDDOWN (SEE INDEX)	1	60184
?	WB0510	FITTING, O-RING - 90 DEG	1
?	HA6343	HOSE	1
?	WB0387	FITTING, TEE	1
?	HA6618	HOSE	1
?	WB1065	FITTING, O-RING - SWIVEL	1
?	WB1064	FITTING, ADAPTOR	1
?	WB0599	FITTING, O-RING - ADAPTOR	1
?	VM0319	PLUG, O-RING	1
?	TY8375	SPACER	23
?	EG0559	TUBE	1
?	HA7069	HOSE	1
?	HA7068	HOSE	1
?	WB1036	O-RING	2
?	MM0086	CAPSCREW - M16 X 2.00 X 60	8
?	MM0706	FLAT WASHER - M16 (HARDENED)	8
?	MM0474	LOCKWASHER - M16	8
?	MM0181	NUT - M16 X 2.00	8
?	EC3036	CLAMP HALF	4
?	WA4710	CLAMP, HYDRA-ZORB - 1 1/2"	1
?	HA6763	HOSE	1
?	HA7424	HOSE	1
?	HA6343	HOSE	2
?	TF6924	CLAMP	4
?	HA7075	HOSE	2
?	HA7288	HOSE	1
?	HA7423	HOSE	1
?	TG2960	CLAMP	3
?	MM0016	CAPSCREW - M8 X 1.25 X 16	4
?	MM0470	LOCKWASHER - M8	4
?	MM0703	FLAT WASHER - M8 (HARDENED)	4
?	ED6164	BRACKET	2
?	HA6258	HOSE	1
?	WB1057	REDUCER, O-RING BOSS	2
?	WB0384	FITTING, TEE	1
?	PC0008	VALVE, CHECK	1
?	WB0585	ADAPTOR, FITTING	1
?	HA6717	HOSE	1
?	WB0583	O-RING	2
?	PC0016	VALVE, SOLENOID	1
?	WA5658	ADAPTOR, SWIVEL	1

Komatsu AFE48-AC 930E S/N A30076-A30078 & A30080 SYNCRUDE parts catalog PDF

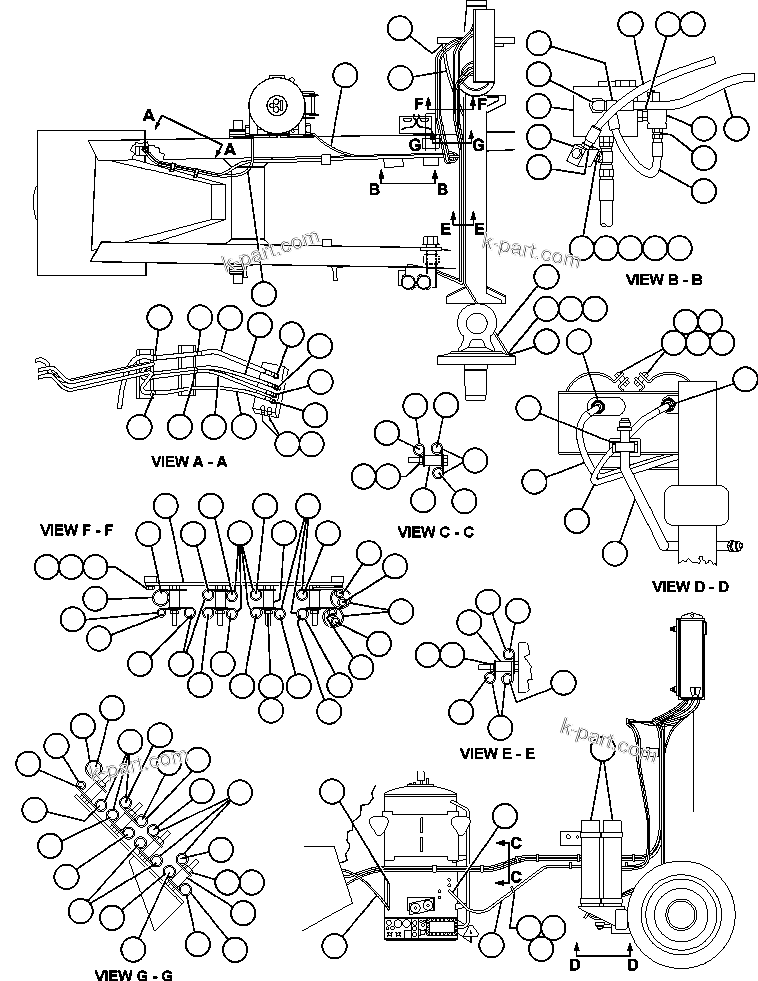

BRAKE PIPING - 5 (60257) in AFE48-AC 930E S/N A30076-A30078 & A30080 SYNCRUDE. Diagram image and parts list.
