AFE48-AC 930E S/N A30076-A30078 & A30080 SYNCRUDE

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	TY9637	TUBE	1
?	TY9636	TUBE	1
?	HA7388	HOSE	1
?	WA4712	CLAMP	3
?	EF9606	TUBE	1
?	WA0232	SEAL, O-RING	3
?	VH6718	CLAMP, SPLIT FLANGE	52
?	C1540	LOCKWASHER - 1/2"	42
?	C1615	CAPSCREW - 1/2" - 13NC X 1 3/4"	4
?	TY9635	TUBE	1
?	WA0187	SEAL, O-RING	8
?	TF3231	CLAMP, SPLIT FLANGE	16
?	C1614	CAPSCREW - 1/2" - 13NC X 1 1/2"	44
?	EF9607	TUBE	1
?	WB0508	FITTING - 90 DEG	2
?	WA0363	FLAT WASHER - 7/8"	3
?	C1543	LOCKWASHER - 7/8"	3
?	C1663	CAPSCREW - 7/8" - 9NC X 3"	3
?	C1529	NUT - 7/8"	3
?	PB8318	TUBE, ELBOW	3
?	PB7980	VALVE, ORIFICE CHECK	1
?	EF9608	TUBE	1
?	EG7723	BRACKET, PUMP/HOIST VALVE	1
?	EG8502	TUBE	1
?	TZ5046	TUBE	1
?	TZ5047	TUBE	1
?	TY8867	MANIFOLD	1
?	C5759	CAPSCREW - 1/2" - 13NC X 5"	2
?	HA5698	HOSE	1
?	ED6501	TUBE	1
?	ED6141	PLATE	1
?	WA5460	CLAMP, TUBE - H.D.	1
?	WA0361	FLAT WASHER - 5/8"	20
?	C1541	LOCKWASHER - 5/8"	12
?	C5762	CAPSCREW - 5/8" - 11NC X 1 1/2"	4
?	VN9952	LOCKNUT - 5/8"	12
?	C5762	CAPSCREW - 5/8" - 11NC X 1 1/2"	4
?	C1624	CAPSCREW - 1/2" - 13NC X 4"	4
?	WB0557	FITTING, TEE	1
?	WA0187	O-RING	8
?	EG8503	TUBE	1
?	TF3231	CLAMP, SPLIT FLANGE	6
?	C5760	CAPSCREW - 1/2" - 13NC X 5 1/2"	8
?	WB0551	FITTING, ADAPTOR - 45 DEG	1
?	WA0360	FLAT WASHER - 1/2"	2
?	DF3500	LOCKNUT - 1/2"	2
?	EG8505	BLOCK, MACHINED	1
?	VM0314	PLUG	2
?	EG8506	ADAPTOR, FLANGE	1
?	C1619	CAPSCREW - 1/2" - 13NC X 2 3/4"	4
?	WB0581	FITTING, ADAPTOR	2
?	HA5931	HOSE	1
?	C5769	PLUG - 1/4"	2
?	PC0233	VALVE, OVER CENTER	1
?	C1604	CAPSCREW - 3/8" - 16NC X 1 1/2"	4
?	C0312	LOCKWASHER - 3/8"	4
?	WA0720	FLAT WASHER - 3/8"	4
?	EF7903	BLOCK MACHINED	1
?	WB0604	ADAPTOR, FITTING	1
?	EG8504	TUBE	1
?	VG9095	O-RING	2
?	TF8090	CLAMP, SPLIT FLANGE	4
?	EG6825	MOUNT	2
?	EG8501	PAD, RUBBER	2
?	MM0053	CAPSCREW - M12 X 1.75 X 45	8
?	MM0705	FLAT WASHER - M12	14
?	MM0472	LOCKWASHER - M12	14
?	PC0232	CHECK VALVE ASSEMBLY	1
?	HA6315	HOSE	1
?	EG6822	MOUNT	2
?	EG6819	PAD, MOUNT	2
?	MM0039	CAPSCREW - M12 X 1.75 X 35	6
?	C1647	CAPSCREW - 3/4" - 10NC X 2 3/4"	4
?	WA0362	FLAT WASHER - 3/4"	4
?	TH3747	NUT, LOCKING - 3/4"	4

Komatsu AFE48-AC 930E S/N A30076-A30078 & A30080 SYNCRUDE parts catalog PDF

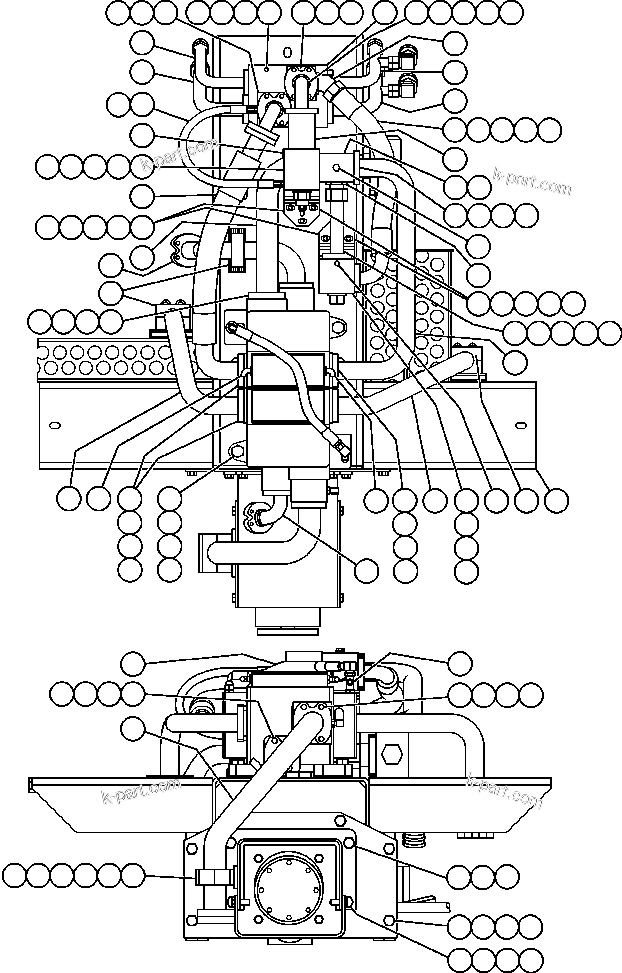

PUMP/HOIST VALVE MODULE (60264) in AFE48-AC 930E S/N A30076-A30078 & A30080 SYNCRUDE. Diagram image and parts list.
