AFE48-AC 930E S/N A30076-A30078 & A30080 SYNCRUDE

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	TV3419	CONTACTOR	1
?	VS8893	BASE	1
?	VS9207	SCREW WITH LOCKWASHER - #8 - 36NF X 1/2"	1
?	VS8939	FRAME, MAGNET	1
?	VS9318	STOP	1
?	C5746	CAPSCREW - 1/4" - 20NC X 3/4"	2
?	C5774	LOCKWASHER - 1/4"	2
?	VE5759	SPRING WITH PLUG	1
?	SD4235	LOCKWASHER - 1/4" (INTERNAL TOOTH)	1
?	SF2755	NUT - #10 - 32NF	2
?	VS9034	CALIBRATING SCREW - #10 - 32NF X 2 7/16"	1
?	BF1890	ARMATURE ASSEMBLY	1
?	R3869	SCREW - 5/16" - 18NC X 5/8"	2
?	C1538	LOCKWASHER - 5/16"	2
?	VS8971	HORN WITH SPRING	1
?	VM0276	SHUNT, FLEXIBLE	1
?	VS9172	PIN - 5/16" X 2 7/8" STN STL	1
?	VS9171	CLAMP	2
?	VS6881	WASHER - 5/16" (BRASS)	2
?	VS9209	SCREW WITH LOCKWASHER - #10 - 32NF X 1/2"	4
?	VE5760	ARM	1
?	VJ0819	BUSHING, PLAIN - 0.3135" ID (BRONZE)	2
?	VM0252	SPRING	1
?	VE5761	COTTER PIN - 3/32" X 1/2"	1
?	VS9175	SEAT, SPRING	1
?	VM0228	ARCING HORN	1
?	VJ7860	CAPSCREW - 5/16" - 18NC	2
?	120386	WASHER - 5/16" (NARROW)	6
?	VE4696	LOCKWASHER - 5/16"	2
?	VS9285	CONTACTOR TIP	2
?	VS9173	ARCING HORN	1
?	VM0293	BLOWOUT COIL WITH STATIONARY CONTACT SUPPORT	1
?	TR8320	MACHINE SCREW, SL FIL HD - #10 - 32NF X 1/2"	2
?	DC3101	LOCKWASHER - #10	3
?	VS9071	POLE PIECE	1
?	VS9072	POLE PIECE	1
?	VE5763	MACHINE SCREW - #10 - 32NF X 3" (BRASS)	1
?	VS8897	INSULATION TUBE - 0.546"	2
?	VS8897	INSULATION TUBE - 0.546"	1
?	VS8898	INSULATION TUBE - 2.230"	1
?	VS8903	SHIELD - 0.060"	2
?	VE5764	INSULATION TUBE - 2.227"	1
?		(NOT USED THIS APPLICATION)	2
?	VS8895	CORE, BLOWOUT COIL	1
?	VS8894	CORE, MAGNET	1
?	VS8899	INSULATION - 2 1/4"	1
?	H6820	SCREW - 5/16" - 18NC X 1 1/4"	4
?	C1538	LOCKWASHER - 5/16"	4
?	C1603	CAPSCREW - 3/8" - 16NC X 1 1/4"	1
?	C0312	LOCKWASHER - 3/8"	1
?	VE5765	MACHINE SCREW - #8 X 1 1/4"	1
?	VS9049	SHIELD	1
?	VE5766	MAVHINE SCREW - #6 X 3/8"	2
?	VJ9158	SCREW - #10 - 32NF X 3/8"	4
?	H2648	LOCKWASHER - #10	4
?	VS6662	FLAT WASHER - #10 (NARROW)	4
?	VE4604	FLAT WASHER - #8	1
?	VE2248	SHIM - 0.035"	1
?	VE3288	PLATE, LOCKING	1
?	VE5767	ARC CHUTE	1
?	VE5768	SIDE, ARC CHUTE	1
?	VE5769	SIDE, ARC CHUTE	1
?	VS8275	PIN	2
?	VE5770	MACHINE SCREW - #10 - 32NF X 1/4"	4
?	VE4600	FLAT WASHER - #10 (NARROW)	8
?	VS6662	FLAT WASHER - #10	4
?	SF2755	NUT - #10 - 32NF	4
?	VM0186	COIL, OPERATING	1
?	VE0252	SPRING WASHER - 1.40 ID, ZINC PL	1

Komatsu AFE48-AC 930E S/N A30076-A30078 & A30080 SYNCRUDE parts catalog PDF

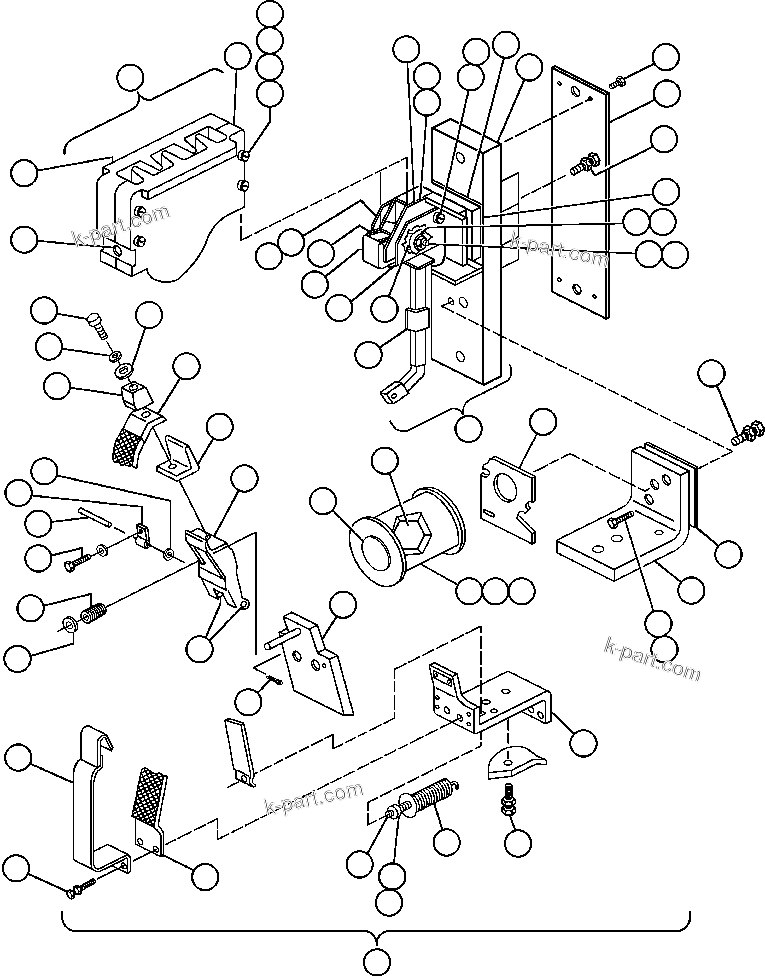

CONTACTOR - G.F. (TV3419) (64097) in AFE48-AC 930E S/N A30076-A30078 & A30080 SYNCRUDE. Diagram image and parts list.
