AFE48-AC 930E S/N A30076-A30078 & A30080 SYNCRUDE

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	BF1442	BOARD, TERMINAL	1
?	VS8193	BOARD, TERMINAL	1
?	GE0160	SENSOR, POWER SUPPLY (SPS)	1
?	GE0175	LAMP, SERVICE	2
?	GE0196	BAR, BUS	1
?	GE0210	SENSOR, MODULE	2
?	GE0216	LEM BRACKET ASSEMBLY	1
?	GE0234	WASHER	1
?	GE0235	INSULATOR ASSEMBLY	1
?	GE0236	WASHER	1
?	GE0189	BAR, BUS - ASSEMBLY (INSULATED)	1
?	PB3606	SPACER	8
?	GE0182	PANEL, (CCLR)	2
?	GE0239	GROMMET, RUBBER	1
?	PB4267	PANEL, RESISTOR - (GFIP & AFVLT)	2
?	GE0199	INSULATOR ASSEMBLY	18
?	GE0200	INSULATOR/STUD ASSEMBLY	4
?	GE0225	BAR, BUS	2
?	GE0238	GROMMET, RUBBER	3
?	GE0192	BAR, BUS - INSULATED	1
?	GE0187	BAR, BUS - INSULATED	1
?	GE0184	BAR, BUS	2
?	GE0186	BAR, BUS - ASSEMBLY	2
?	GE0183	BAR, BUS	2
?	GE0185	BAR, BUS - ASSEMBLY	1
?	GE0148	FILTER PANEL ASSEMBLY	1
?	VE4379	RESISTOR ASSEMBLY	3
?	VE0066	RESISTOR - 200 WATT, 25 OHM	6
?	VE3846	CONDENSER	3
?	GE0201	INSULATOR ASSEMBLY	5
?	GE0191	BAR, BUS - INSULATED	1
?	GE0202	INSULATOR ASSEMBLY	1
?	GE0190	BAR, BUS - ASSEMBLY (INSULATED)	1
?	PB6489	PANEL, RECTIFIER (SEE INDEX)	1	64036
?	GE0223	CLAMP, BAR	5
?	BF4221	BAR, BAR - INSULATED ASSEMBLY	1
?	VS8432	BRACKET	4
?	PB4261	SPACER	6
?	GE0230	PLATE, FUSE	1
?	GE0229	INSULATOR ASSEMBLY	4
?	GE0228	SPACER	4
?	GE0227	FUSE, HIGH VOLTAGE	2
?	PB3348	INSULATOR	1
?	GE0195	BAR, BUS - ASSEMBLY	1
?	GE0193	BOARD, TERMINAL	1
?	VE6118	PANEL, VOLTAGE MEASURING MODULE (SEE INDEX)	2	64043
?	GE0237	GROMMET, RUBBER	3
?	BF4224	GROMMET, RUBBER	3
?	VE4655	FLAT WASHER	-1
?	VC1390	LOCKWASHER	-1
?	GE0256	MACHINE SCREW	4
?	VE4519	FLAT WASHER	-1
?	VE4699	LOCKWASHER	-1
?	VE4698	NUT	-1
?	VE4921	MACHINE SCREW	-1
?	SF2755	NUT	-1
?	PB3606	SPACER	-1

Komatsu AFE48-AC 930E S/N A30076-A30078 & A30080 SYNCRUDE parts catalog PDF

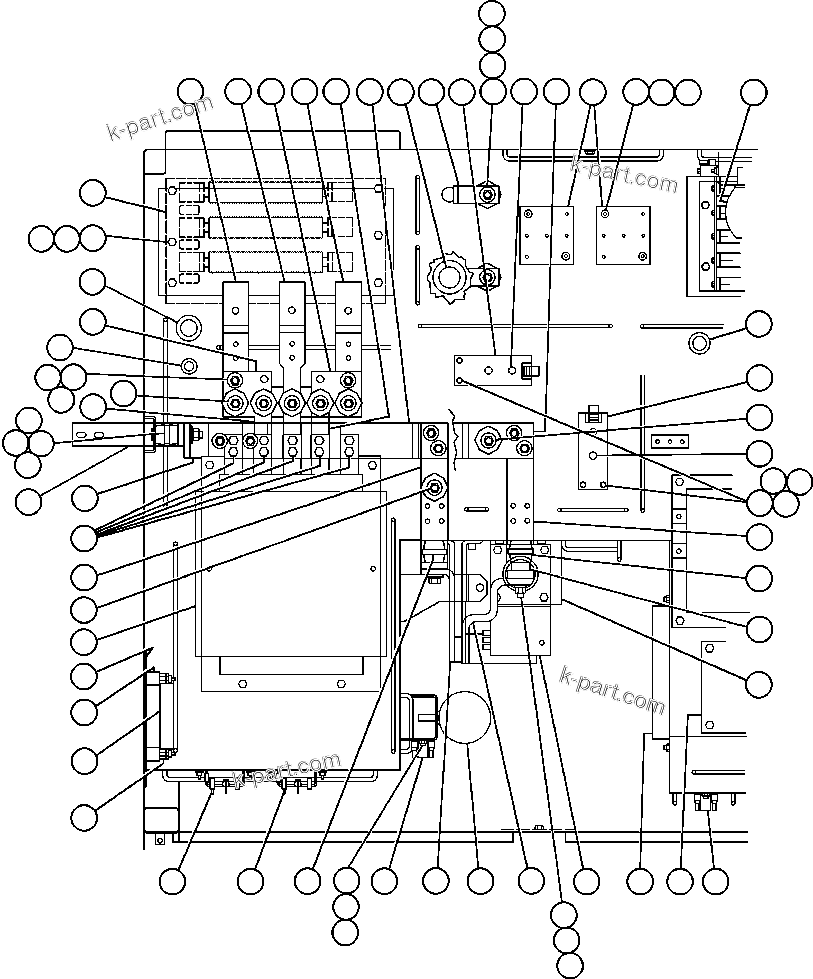

CONTROL CABINET (TOP LEFT VIEW) (64122) in AFE48-AC 930E S/N A30076-A30078 & A30080 SYNCRUDE. Diagram image and parts list.
