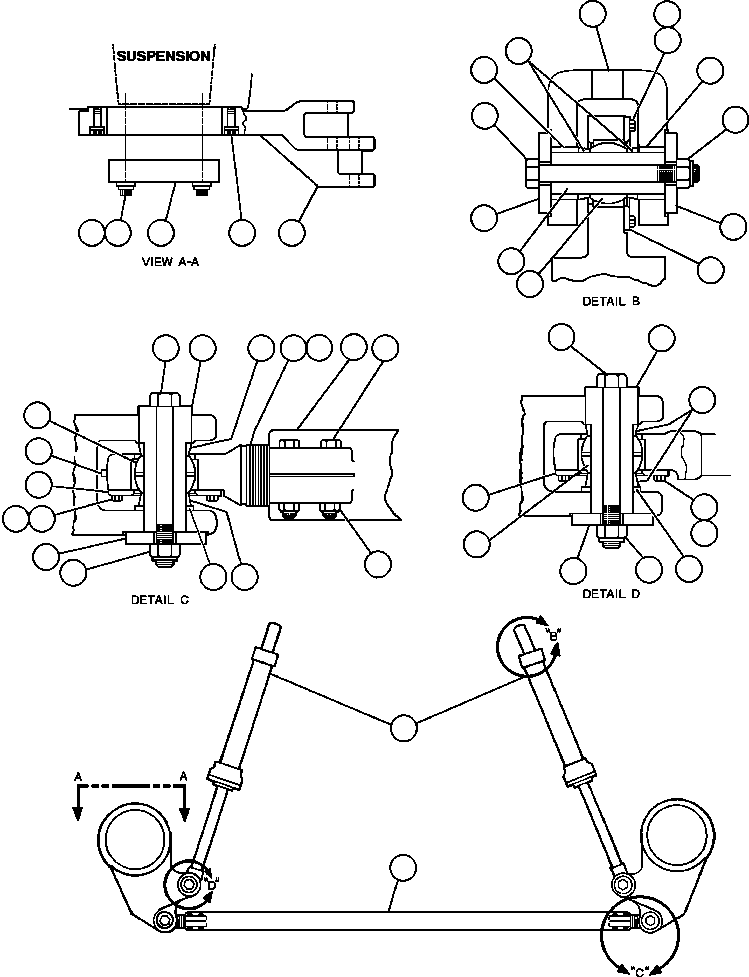

1 |
ED0575
|
TIE ROD ASSEMBLY |
1 |
|
|
|
|
2 |
EB8801
|
ROD, TIE |
1 |
|
|
|
|
3 |
ED0573
|
ROD END, THREADED - L.H. |
1 |
|
|
|
|
4 |
ED0572
|
ROD END, THREADED - R.H. |
1 |
|
|
|
|
5 |
VN9140
|
CAPSCREW - 3/4" - 10NC X 4" - (G8) |
4 |
|
|
|
|
6 |
VL2993
|
LOCKNUT - 3/4" - (G8) |
4 |
|
|
|
|
7 |
PB8945
|
BUSHING, BALL (1)/(2) |
2 |
|
|
|
|
8 |
ED3846
|
RETAINER |
2 |
|
|
|
|
9 |
C1540
|
LOCKWASHER - 1/2" |
16 |
|
|
|
|
10 |
C1613
|
CAPSCREW - 1/2" - 13NC X 1 1/4" |
16 |
|
|
|
|
11 |
TG3397
|
ADAPTOR (LUB HOLE) |
2 |
|
|
|
|
12 |
ED7913
|
SPACER (1)/(2) |
12 |
|
|
|
|
13 |
EF3387
|
FLAT WASHER (HARDENED) (1)/(2) |
4 |
|
|
|
|
14 |
EG1106
|
PIN (1) |
4 |
|
|
|
|
15 |
TY2239
|
RETAINER (1)/(2) |
8 |
|
|
|
|
16 |
WB0926
|
CAPSCREW - 1" - 8NC X 10 1/2" - (G8) (1)/(2) |
6 |
|
|
|
|
17 |
VH8186
|
LOCKNUT - 1" - (G8) (1)/(2) |
6 |
|
|
|
|
18 |
PB8945
|
BUSHING, BALL |
2 |
|
|
|
|
19 |
ED3846
|
RETAINER |
2 |
|
|
|
|
20 |
C1540
|
LOCKWASHER - 1/2" |
16 |
|
|
|
|
21 |
C1613
|
CAPSCREW - 1/2" - 13NC X 1 1/4" |
16 |
|
|
|
|
22 |
ED6520
|
PIN (2) |
2 |
|
|
|
|
23 |
ED7914
|
SLEEVE, BRACKET - STEERING CYLINDER (2) |
4 |
|
|
|
|
24 |
ED5913
|
MOUNT, STEERING CYLINDER - L.H. |
1 |
|
|
|
|
24 |
ED5912
|
MOUNT, STEERING CYLINDER - R.H. |
1 |
|
|
|
|
25 |
EF2753
|
ARM, STEERING - L.H. |
1 |
|
|
|
|
25 |
EF2754
|
ARM, STEERING - R.H. |
1 |
|
|
|
|
26 |
WA4817
|
CAPSCREW - 1 1/4" - 7NC X 5" (12 PT) |
38 |
|
|
|
|
27 |
ED7912
|
PLATE, RETAINER |
1 |
|
|
|
|
28 |
TY2149
|
FLAT WASHER (HARDENED) |
14 |
|
|
|
|
29 |
ED4617
|
STEERING CYLINDER ASSEMBLY (SEE FIG 60018) |
2 |
|
60018 |
|
|
NS|32 |
AK3881
|
NOTE: (1) INCLUDED IN AK3881 TIE ROD |
-1 |
|
|
|
|
NS|33 |
|
AND STEERING PIN KIT. |
-1 |
|
|
|
|
NS|34 |
AK3882
|
(2) INCLUDED IN AK3882 STEERING CYL PIN KIT. |
-1 |
|
|
