AFE48-AC 930E S/N A30076-A30078 & A30080 SYNCRUDE

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	EG5017	TANK ASSEMBLY	1
?	HA7593	HOSE	1
?	HA6227	HOSE	1
?	WB0549	FITTING, O-RING - 45 DEG	1
?	VM0314	PLUG, O-RING	2
?	WB0524	FITTING, O-RING - 90 DEG	1
?	PC0235	VALVE, BLEEDDOWN (SEE INDEX)	1	60184
?	WB0600	FITTING, O-RING - STRAIGHT	2
?	HA4416	HOSE	1
?	HA7423	HOSE	1
?	HA7424	HOSE	1
?	HA6343	HOSE	2
?	HA6763	HOSE	1
?	HA7270	HOSE	2
?	PB9992	FLOW AMPLIFIER (SEE INDEX)	1	35461
?	WB0574	FITTING, O-RING - STRAIGHT	1
?	PC0016	VALVE, SOLENOID	1
?	C5775	LOCKWASHER - 7/16"	3
?	HA6717	HOSE	1
?	WB0384	FITTING, TEE	3
?	EG7185	TUBE	1
?	WB0602	FITTING, O-RING - STRAIGHT	1
?	WB0601	FITTING, O-RING - STRAIGHT	2
?	HA7449	HOSE	1
?	HA5344	HOSE	1
?	HA3278	HOSE	1
?	HA6619	HOSE	1
?	WB0378	FITTING - 90 DEG	1
?	SR7215	CAPSCREW - 1/2" - 13NC X 7 1/2"	2
?	WA0360	FLAT WASHER - 1/2" (HARDENED)	3
?	C1540	LOCKWASHER - 1/2"	2
?	C1523	NUT - 1/2" - 13NC	3
?	TC6058	CLAMP	2
?	C1614	CAPSCREW - 1/2" - 13NC X 1 1/2"	1
?	WB0522	FITTING, O-RING - 90 DEG	1
?	WB0599	FITTING, O-RING - STRAIGHT	3
?	MM0086	CAPSCREW - M16 X 2.00 X 60	8
?	MM0706	FLAT WASHER - M16 (HARDENED)	8
?	MM0474	LOCKWASHER - M16	8
?	MM0181	NUT - M16	8
?	EC3036	CLAMP HALF	4
?	WA4710	CLAMP, HYDRA-ZORB - 1 1/2"	1
?	EG0564	TUBE	1
?	VM0319	PLUG, O-RING	1
?	WB0586	FITTING, O-RING - STRAIGHT	2
?	C1603	CAPSCREW - 3/8" - 16NC X 1 1/4"	16
?	C0312	LOCKWASHER - 3/8"	16
?	PB6528	COUPLING, DIAGNOSTIC	1
?	PB6041	CAP, DUST	1
?	WB0581	FITTING, O-RING - STRAIGHT	1
?	MM0601	CAPSCREW - M8 X 1.25 X 70	2
?	MM0470	LOCKWASHER - M8	2
?	EG1119	BLOCK, MANIFOLD	1
?	WB0537	FITTING, O-RING - 45 DEG	1
?	WA2567	NUT, FITTING CAP	1
?	WB0584	FITTING, O-RING - STRAIGHT	3
?	TF8077	CLAMP, SPLIT FLANGE	6
?	VG9097	O-RING	3
?	C1608	CAPSCREW - 7/16" - 14NC X 1"	3
?	PB1255	FLAT WASHER - 7/16" (HARDENED)	3
?	WA4850	FITTING	1
?	ED3830	ACCUMULATOR ASSEMBLY (SEE INDEX)	2	60017
?	HA6618	HOSE	1
?	WB1065	FITTING, O-RING (SWIVEL)	1
?	PC0008	VALVE, CHECK	1
?	WB1064	CAPSCREW, FITTING	1
?	WB0585	ADAPTOR, FITTING	1
?	WB0387	FITTING, TEE	1
?	WA4710	CLAMP	2
?	WB0583	FITTING, ADAPTOR	2
?	WA5658	FITTING, SWIVEL ADAPTOR	1
?	WB0375	FITTING - 90 DEG	1

Komatsu AFE48-AC 930E S/N A30076-A30078 & A30080 SYNCRUDE parts catalog PDF

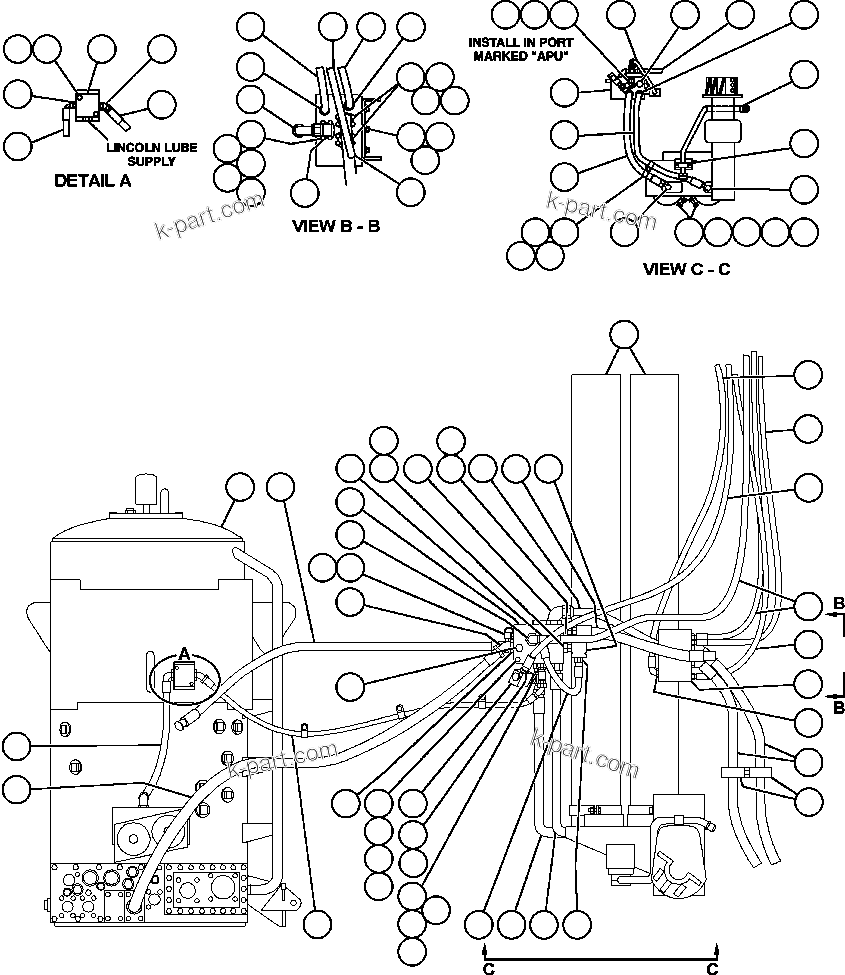

STEERING SYSTEM PIPING - 5 (60270) in AFE48-AC 930E S/N A30076-A30078 & A30080 SYNCRUDE. Diagram image and parts list.
