AFE48-AC 930E S/N A30076-A30078 & A30080 SYNCRUDE

? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	VE2962	HEADREST	1
?	VE8737	FERREL, PLASTIC BLACK	2
?	VE8728	KIT, ARMREST - R.H. (2)	1
?	VE4592	ARMREST - R.H.	1
?		KIT, MOUNTING HARDWARE (1)	1
?	VE8727	KIT, ARMREST - L.H. (2)	1
?	VE4591	ARMREST - L.H.	1
?		KIT, MOUNTING HARDWARE (1)	1
?	VE8365	BACKREST ASSEMBLY	1
?		FRAME, BACKREST (1)	1
?	VE4567	FOAM, BACKREST	1
?		COVER, BACKREST (1)	1
?	VE8735	KIT, AIR LUMBAR	1
?		BAG, AIR LUMBAR W/HOSES (1)	1
?		KIT, PLASTIC TIE (1)	1
?	LA0335	KIT, HARDWARE	1
?		ROD, UPH. LONG (1)	1
?		HAROPAPER, BACKREST (1)	1
?	VE8860	SEAT PAN ASSEMBLY	1
?	VE8869	SCREW, PHILLIPS HD (SEAT PAN MOUNTING)	2
?		NOTE: (1) NOT SERVICED SEPARATELY.	-1
?		(2) INCLUDED IN ARM REST SET VE4557.	-1

Komatsu AFE48-AC 930E S/N A30076-A30078 & A30080 SYNCRUDE parts catalog PDF

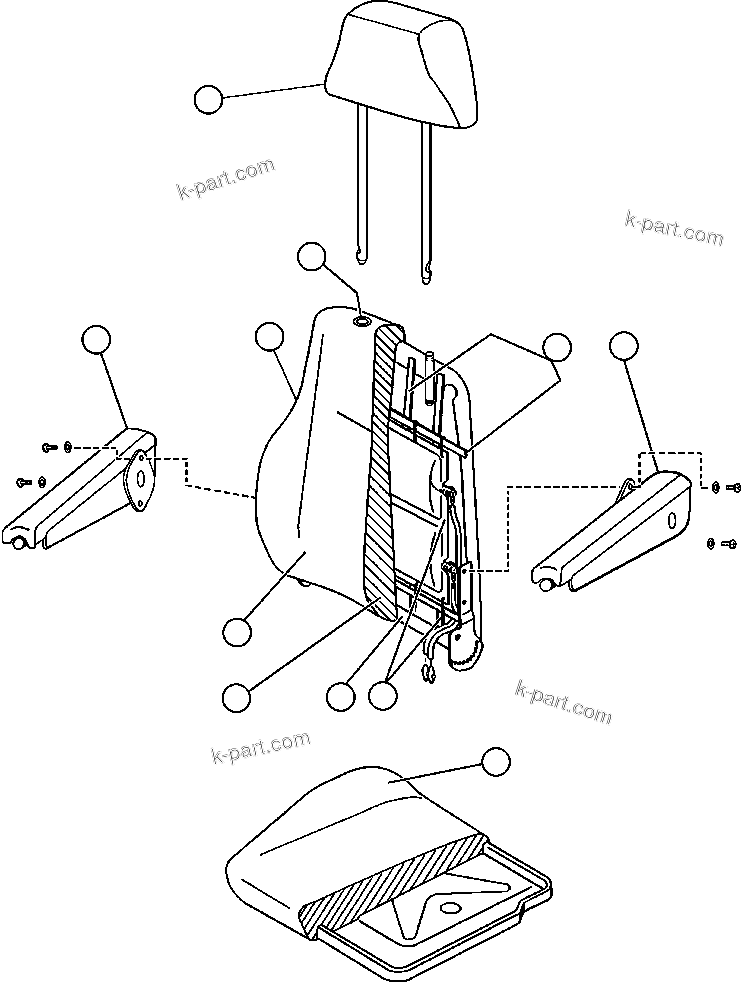

OPERATOR'S SEAT ASSEMBLY (PB8649) (50074) in AFE48-AC 930E S/N A30076-A30078 & A30080 SYNCRUDE. Diagram image and parts list.
