AFE48-AC 930E S/N A30076-A30078 & A30080 SYNCRUDE

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	SM5319	RADIO MODULE (SEE FIG 60186)	1	60186
?	EG7491	HARNESS, CAB OVERHEAD	1
?	SM5315	WARNING LIGHTS MODULE (SEE FIG 60186)	1	60186
?	SM5316	PLM/FILTER MINDER MODULE (SEE FIG 60186)	1	60186
?	EF9756	HARNESS, PAYLOAD METER CAB	1
?	SM5234	CLOSURE, FRONT	1
?	PB8658	MACHINE SCREW	1
?	PB9829	SCREW, PANEL	4
?	MM0207	LOCKWASHER - M6	6
?	31127R1	CAPSCREW - M6 X 12	6
?	WB2492	CHART, GRADE SPEED	1
?	MM0347	MACHINE SCREW - M5 X .8 X 8	4
?	PB8319	LOUVER	8
?	PB8320	ADAPTOR	8
?	SM2406	SET SCREW - #6 - 32NC X 3/8"	16
?	SM2323	TRIM, EDGE	1
?	SM5273	HEATER/AIR CONDITIONER ASSM (SEE INDEX)	1	60251
?	PB9506	ELECTRONIC TREADLE - THROTTLE (SEE FIG 41060)	1	41060
?	PC0420	ELECTRONIC TREADLE - RETARDER/BRAKE (SEE FIG 60065)	1	60065
?	ED2863	RHEOSTAT, SWITCH CONTROL	1
?	SF9896	KNIFE, DISCONNECT	1
?	DL4172	SLEEVE, INSULATING	1
?	PB5957	KNOB	1
?	SM2339	SHEET METAL, FORMED	2
?	SM0926	SCREW, PANEL	10
?	SM5244	LENS, VISOR	2
?		NOTE: NS = NOT SHOWN	-1
?	SM4403	FLOOR MAT - FRONT	1
?	SM2187	FLOOR MAT - SEAT	1
?	SM2188	FLOOR MAT - REAR	1
?	1126558C1	HOLDER, DOCUMENT	1
?	31127R1	CAPSCREW - M6 X 12	4
?	SM5245	CHAIN, BEADED	1

Komatsu AFE48-AC 930E S/N A30076-A30078 & A30080 SYNCRUDE parts catalog PDF

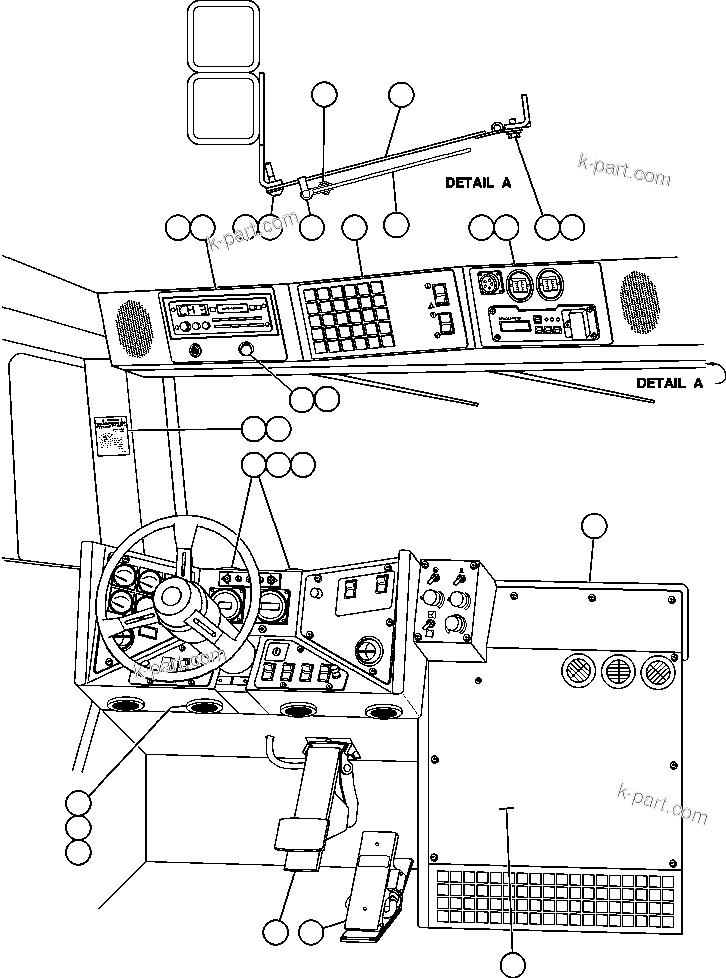

OPERATOR CONTROLS & OVERHEAD PANEL (60262) in AFE48-AC 930E S/N A30076-A30078 & A30080 SYNCRUDE. Diagram image and parts list.
