AFE47-V 730E S/N 32795 & 32797 ISCOR GROOTEGELUK

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	TF3231	SPLIT FLANGE - 2"	2
?	WA0187	SEAL, O-RING	1
?	C1614	CAPSCREW - 1/2" - 13NC X 1 1/2"	4
?	C1540	LOCKWASHER - 1/2"	4
?	PB8267	HOIST CONTROL VALVE ASSEMBLY (SEE INDEX)	1	55008
?	EC1208	TUBE	1
?	WB0993	SWIVEL FLANGE / SPLIT FLANGE	1
?	EC1207	MANIFOLD	1
?	C1629	CAPSCREW - 5/8" - 11NC X 1 3/4"	6
?	C1550	FLAT WASHER - 5/8"	12
?	C1541	LOCKWASHER - 5/8"	8
?	C1525	NUT - 5/8" - 11NC	6
?	EG2647	BRACKET, ANGLE	1
?	EG2650	ANGLE	1
?	PC0094	STEERING & BRAKE PUMP ASSM (SEE INDEX)	1	55319
?	C1631	CAPSCREW - 5/8" - 11NC X 3"	2
?	VL5418	SEAL, O-RING	1
?	PB9419	COOLING BLOWER PUMP ASSM (SEE INDEX)	1	55296
?	C1647	CAPSCREW - 3/4" - 10NC X 2 3/4"	4
?	C1542	LOCKWASHER - 3/4"	4
?	C1551	FLAT WASHER - 3/4"	4
?	WA0098	SEAL, O-RING	1
?	MM0045	CAPSCREW - M12 X 1.75 X 40	2
?	MM0472	LOCKWASHER - M12	2
?	MM0714	FLAT WASHER - M12	2
?	MM0179	NUT - M12 X 1.75	2
?	EG0498	HOIST PUMP INSTALLATION (SEE INDEX)	1	40251
?	EG0829	BRACKET, PUMP	1
?	WB0551	FITTING - 45 DEG	1
?	TF8090	CLAMP, SPLIT FLANGE	4
?	EC1205	ANGLE	1
?	EG2648	ANGLE	1
?	EC1209	TUBE	1
?	HA7474	HOSE	1
?	C1663	CAPSCREW - 7/8" - 9NC X 3"	3
?	C1543	LOCKWASHER - 7/8"	3
?	WA0363	FLAT WASHER - 7/8" (HARDENED)	3
?	C1529	NUT - 7/8" - 9NC	3
?	PB6528	COUPLING, DIAGNOSTIC	3
?	PB6041	CAP, DUST	3

Komatsu AFE47-V 730E S/N 32795 & 32797 ISCOR GROOTEGELUK parts catalog PDF

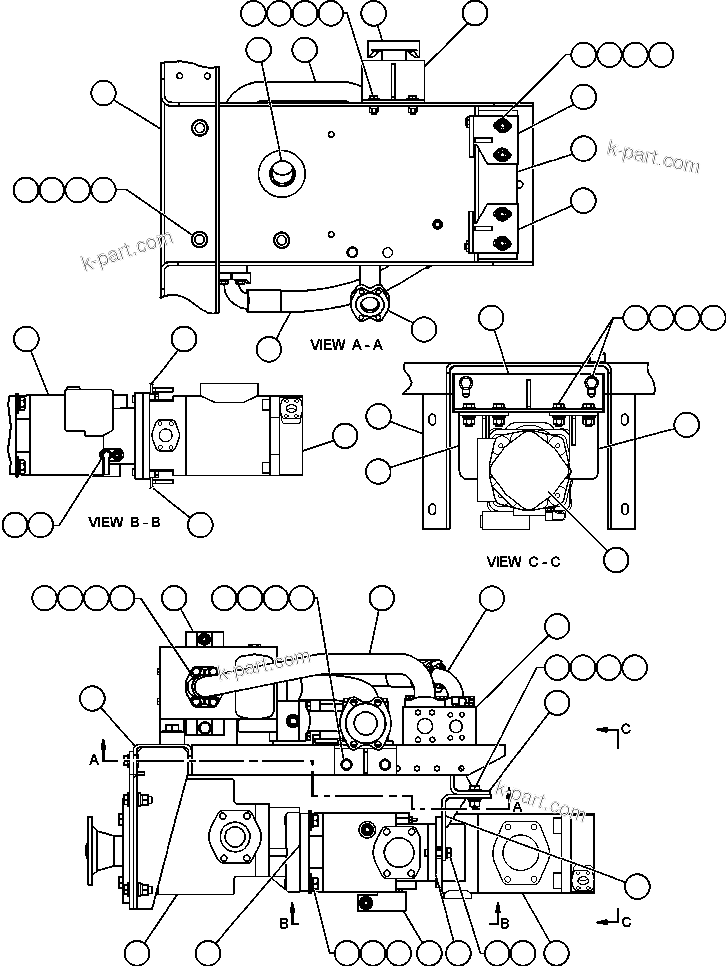

HOIST PUMP MODULE - 2 (EG5533) (55297) in AFE47-V 730E S/N 32795 & 32797 ISCOR GROOTEGELUK. Diagram image and parts list.
