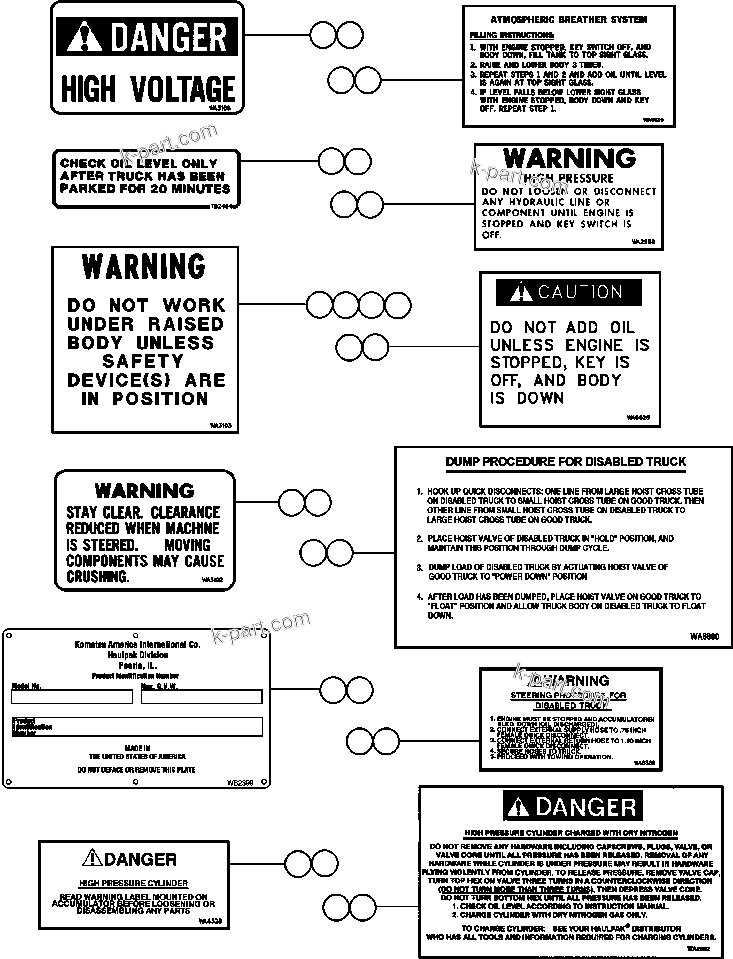

REAR AXLE & SUSPENSION |
-1 |
|
|
|
|
? |
WA3108
|
PLATE, WARNING-HIGH VOLTAGE |
1 |
|
|
|
|
? |
|
(FACE OF REAR AXLE DOOR) (1) |
-1 |
|
|
|
|
? |
TB2464
|
DECAL, WHEEL MOTOR (CHECK OIL LEVEL) |
1 |
|
|
|
|
? |
|
FRAME & FUEL TANK |
-1 |
|
|
|
|
? |
WA3103
|
PLATE, WARNING - RAISED BODY (FACE FUEL TANK) (1) |
1 |
|
|
|
|
? |
WA3102
|
PLATE, WARNING CLEARANCE REDUCED TURNING |
4 |
|
|
|
|
? |
|
(FRAME BEHIND & FORWARD FRONT WHEEL) (2) |
-1 |
|
|
|
|
? |
WB2399
|
PLATE, SERIAL (FRAME FORWARD FRONT WHEEL) (2) |
1 |
|
|
|
|
? |
|
FRAME & HYDRAULIC TANK |
-1 |
|
|
|
|
? |
WA4328
|
PLATE DANGER - HIGH PRESSURE ACCUMULATOR |
2 |
|
|
|
|
? |
|
(ON AND BY ACCUM) |
-1 |
|
|
|
|
? |
WA6629
|
PLATE, ATMOSPHERIC BREATHER SYSTEM |
1 |
|
|
|
|
? |
|
(FACE OF HYDRAULIC TANK) (1) |
-1 |
|
|
|
|
? |
WA2998
|
PLATE, WARNING - HIGH PRESSURE HYD LINES |
2 |
|
|
|
|
? |
|
(FACE OF HYDRAULIC TANK/LEFT FRAME) (1) |
-1 |
|
|
|
|
? |
WA6628
|
DECAL, CAUTION - ADD OIL HYD TANK (SIDE HYD TANK) |
1 |
|
|
|
|
? |
WA8890
|
DECAL, EMERGENCY DUMP PROCEDURE |
1 |
|
|
|
|
? |
|
(ON TOP SIDE OF CENTER CROSS TUBE ON LEFT SIDE) |
-1 |
|
|
|
|
? |
WA8889
|
DECAL, (EMERGENCY STEERING PROCEDURE - L.H. FRAME) |
2 |
|
|
|
|
? |
|
(AT STEERING MANIFOLD) |
-1 |
|
|
|
|
? |
WA2892
|
PLATE, DANGER (ON SUSPENSION CYLINDER & |
4 |
|
|
|
|
? |
|
STEERING ACCUMULATOR) |
-1 |
|
|
|
|
? |
WA3103
|
PLATE, WARNING - FACE OF HYD TANK (2) |
1 |
|
|
|
|
? |
|
NOTE: (1) USE DC9822 DRIVE SCREW AS REQUIRED. |
-1 |
|
|
|
|
? |
|
(2) USE R1073 DRIVE SCREW AS REQUIRED. |
-1 |
|
|
|
|
? |
|
(SEE FOLLOWING PAGE FOR BALANCE OF PARTS...) |
