AFE47-V 730E S/N 32795 & 32797 ISCOR GROOTEGELUK

27 48 33 31 29 30 54 32 35 53 36 34 44 43 38 37 49 40 39 53 15 16 20 21 20 16 14 54 52 26 50 2 1 51 3 4 41 44 43 42 44 43 42 26 45 29 47 31 30 46 5 8 6 7 28 25 24 20 23 22 21 19 9 10 11 12 20 18 16 14 15 13 17

#	Part Number	Partname	Quantity	Reference
1	EG6850	HANDRAIL, L.H. FRONT	1
2	TB8588	ROD, FORMED	2
3	EG8963	CHAIN	2
4	EG9339	HANDRAIL, L.H. REAR	1
5	EG8394	DECK, L.H.	1
6	MM0091	CAPSCREW - M20 X 2.50 X 80	6
7	EC7594	FLAT WASHER - M20	12
8	MM0697	LOCKNUT - M20 X 2.50	6
9	TZ8533	LADDER, ACCESS	1
10	C1644	CAPSCREW - 3/4" - 10NC X 2"	2
11	C1551	FLAT WASHER - 3/4"	4
12	VL2993	LOCKNUT - 3/4" - 10NC	2
13	ED5897	STEP EXTENSION, L.H.	1
14	MM0024	CAPSCREW - M10 X 1.50 X 16	3
15	MM0050	CAPSCREW - M10 X 1.50 X 35	3
16	MM0713	FLAT WASHER - M10 (HARDENED)	9
17	EB2101	STEP	1
18	MM0064	CAPSCREW - M10 X 1.50 X 45	4
19	EB2102	WASHER	2
20	MM0471	LOCKWASHER - M10	16
21	MM0178	NUT - M10 X 1.50	3
22	EB2104	STRAP, MOUNTING - R.H.	1
23	EB2105	STRAP, MOUNTING - L.H.	1
24	MM0047	CAPSCREW - M10 X 1.50 X 30	6
25	EB2899	WASHER	2
26	VC1387	CAPSCREW - 1/2" - 13NC X 1"	20
27	PC0226	MIRROR, L.H.	1
28	EG0528	LADDER ASSEMBLY, L.H. (SEE FIG 55050)	1	55050
29	MM0010	CAPSCREW - M12 X 1.75 X 25	6
30	MM0462	FLAT WASHER - M12	6
31	MM0472	LOCKWASHER - M12	6
32	MM0032	CAPSCREW - M12 X 1.75 X 30	2
33	MM0462	FLAT WASHER - M12	2
34	D104556	BUMPER	1
35	EC7588	BRACKET	1
36	EC7589	PLATE	1
37	MM0031	CAPSCREW - M20 X 2.50 X 45	4
38	MM0707	FLAT WASHER - M20 (HARDENED)	4
39	VN9780	FLAT WASHER - 9/16"	1
40	TR6643	NUT - 1/2" - 13NC	1
41	EG9340	HANDRAIL	1
42	TD0791	CAPSCREW - 3/8" - 16NC X 1 1/4"	4
43	WA4726	FLAT WASHER - 3/8"	7
44	TC1233	NUT - 3/8" - 16NC	7
45	WA4728	FLAT WASHER - 1/2"	18
46	EG6836	HANDRAIL	1
47	EG9341	HANDRAIL	1
48	EG8984	MOUNT, MIRROR	1
49	EG8988	MOUNT	1
50	TZ5945	PLATE, MOUNTING	1
51	WA4728	FLAT WASHER - 1/2"	2
52	EG6834	GUSSET	1
53	C1604	CAPSCREW - 3/8" - 16NC X 1 1/2"	7
54	C0312	LOCKWASHER - 3/8"	7
NS\|55		NOTE: NS = NOT SHOWN	-1
NS\|56	EG0193	DECK, CENTER REAR L.H.	1
NS\|57	MM0031	CAPSCREW - M20 X 2.50 X 45	4
NS\|58	EC7594	FLAT WASHER - M20 (HARDENED)	4
NS\|59	MM0697	LOCKNUT - M20 X 2.50	4

Komatsu AFE47-V 730E S/N 32795 & 32797 ISCOR GROOTEGELUK parts catalog PDF

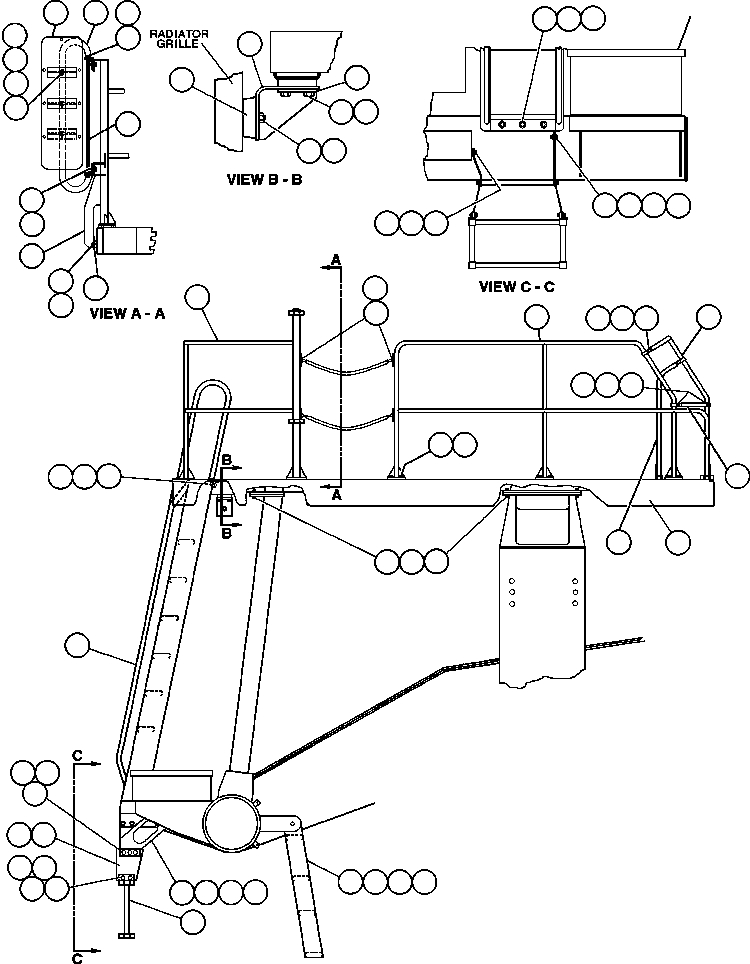

LEFT DECK, LADDER & STEP (55340) in AFE47-V 730E S/N 32795 & 32797 ISCOR GROOTEGELUK. Diagram image and parts list.
