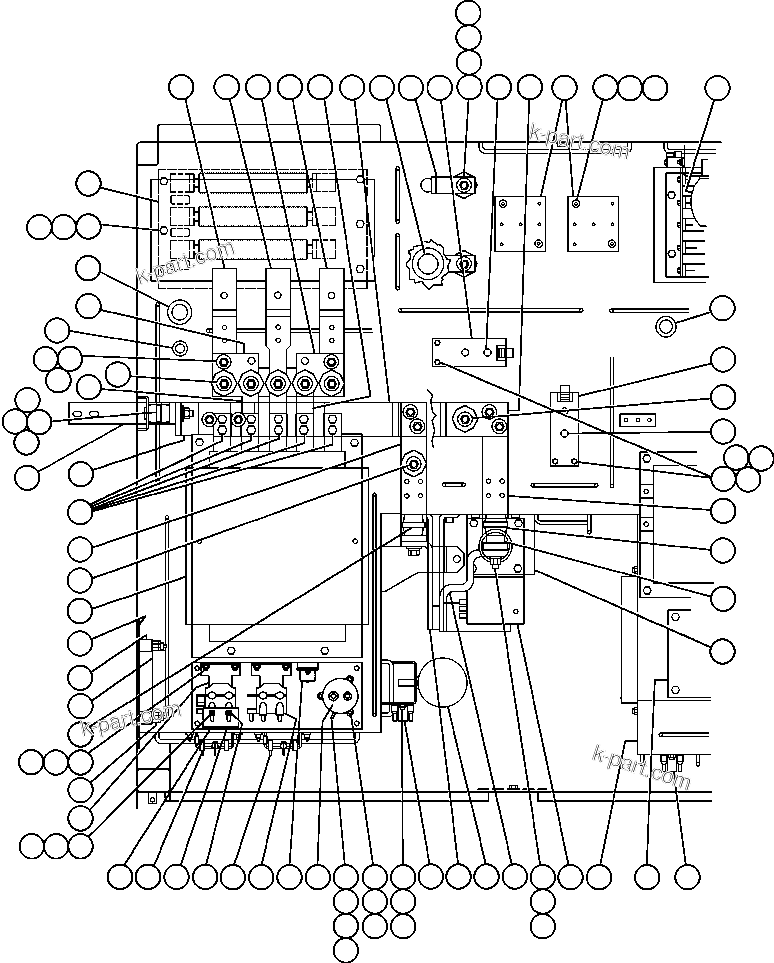

CONTROL CABINET (TOP LEFT VIEW) | AFE48-CK 930E-2 S/N A30225 JACOB'S RANCH

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE48-CK 930E-2 S/N A30225 JACOB'S RANCH

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	BF1442	BOARD, TERMINAL	1
?	VS8193	BOARD, TERMINAL	1
?	GE0160	SENSOR, POWER SUPPLY (SPS)	1
?	GE0175	LAMP, SERVICE	2
?	GE0196	BAR, BUS	1
?	GE0210	SENSOR, MODULE	2
?	GE0216	LEM BRACKET ASSEMBLY	1
?	GE0234	WASHER	1
?	GE0235	INSULATOR ASSEMBLY	1
?	GE0236	WASHER	1
?	GE0189	BAR, BUS - ASSEMBLY (INSULATED)	1
?	PB3606	SPACER	8
?	GE0182	PANEL, (CCLR)	2
?	GE0239	GROMMET, RUBBER	1
?	PB4267	PANEL, RESISTOR - (GFIP & AFVLT)	2
?	GE0203	INSULATOR ASSEMBLY	18
?	GE0513	INSULATOR/STUD ASSEMBLY	4
?	GE0225	BAR, BUS	2
?	GE0238	GROMMET, RUBBER	3
?	GE0192	BAR, BUS - INSULATED	1
?	GE0187	BAR, BUS - INSULATED	1
?	GE0184	BAR, BUS	2
?	GE0186	BAR, BUS - ASSEMBLY	2
?	GE0183	BAR, BUS	2
?	GE0185	BAR, BUS - ASSEMBLY	1
?	GE0148	FILTER PANEL ASSEMBLY	1
?	VE4379	RESISTOR ASSEMBLY	3
?	VE0066	RESISTOR - 200 WATT, 25 OHM	6
?	VE3846	CONDENSER	3
?	GE0201	INSULATOR ASSEMBLY	5
?	GE0191	BAR, BUS - INSULATED	1
?	GE0204	INSULATOR ASSEMBLY	1
?	GE0511	BAR, BUS - ASSEMBLY (INSULATED)	1
?	GE0557	PANEL, RECTIFIER (SEE INDEX)	1	64036
?	GE0223	CLAMP, BAR	5
?	VS8432	BRACKET	4
?	PB4261	SPACER	6
?	GE0188	BAR, BAR - INSULATED ASSEMBLY	1
?	GE0230	PLATE, FUSE	1
?	GE0229	INSULATOR ASSEMBLY	4
?	GE0228	SPACER	4
?	GE0227	FUSE, HIGH VOLTAGE	2
?	PB3348	INSULATOR	1
?	GE0195	BAR, BUS - ASSEMBLY	1
?	GE0193	BOARD, TERMINAL	1
?	VE6118	PANEL, VOLTAGE MEASURING MODULE (SEE INDEX)	2	64043
?	GE0237	GROMMET, RUBBER	3
?	GE0266	GROMMET, RUBBER	3
?	VE4655	FLAT WASHER	-1
?	VC1390	LOCKWASHER	-1
?	GE0256	MACHINE SCREW	4
?	VE4519	FLAT WASHER	-1
?	VE4699	LOCKWASHER	-1
?	VE4698	NUT	-1
?	VE4921	MACHINE SCREW	-1
?	SF2755	NUT	-1
?	PB3606	SPACER	-1
?	GE0482	ASSEMBLY, BRACKET	1
?	VG7043	RELAY - (GFR & CPR) (SEE INDEX)	2	64037
?	GE0483	DIODE, RECTIFIER	1
?	GE0484	CAPACITOR	1
?	DF3445	FLAT WASHER - 1/4"	4
?	DC3584	LOCKWASHER - 1/4"	4
?	TD1549	NUT - 1/4"	4
?	GE0151	BOARD, PRINTED CIRCUIT	1
?	BF3905	ADAPTOR	2
?	VS6662	FLAT WASHER - #10	6
?	VE4606	LOCKWASHER - #10	12
?	SF2755	NUT - #10	8
?	VJ8249	SCREW, MACHINE - #8 - 32 NC X 3/4"	2
?	VE4604	FLAT WASHER - #8	2
?	VE4607	NUT - #8	2
?	VE5958	SCREW, MACHINE - #6 - 40NF X 1/2"	3
?	HE5125	FLAT WASHER - #6	6
?	DF4944	LOCKWASHER - #6	6
