DRIVE AXLE & MOUNTING | AFE48-CK 930E-2 S/N A30225 JACOB'S RANCH

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE48-CK 930E-2 S/N A30225 JACOB'S RANCH

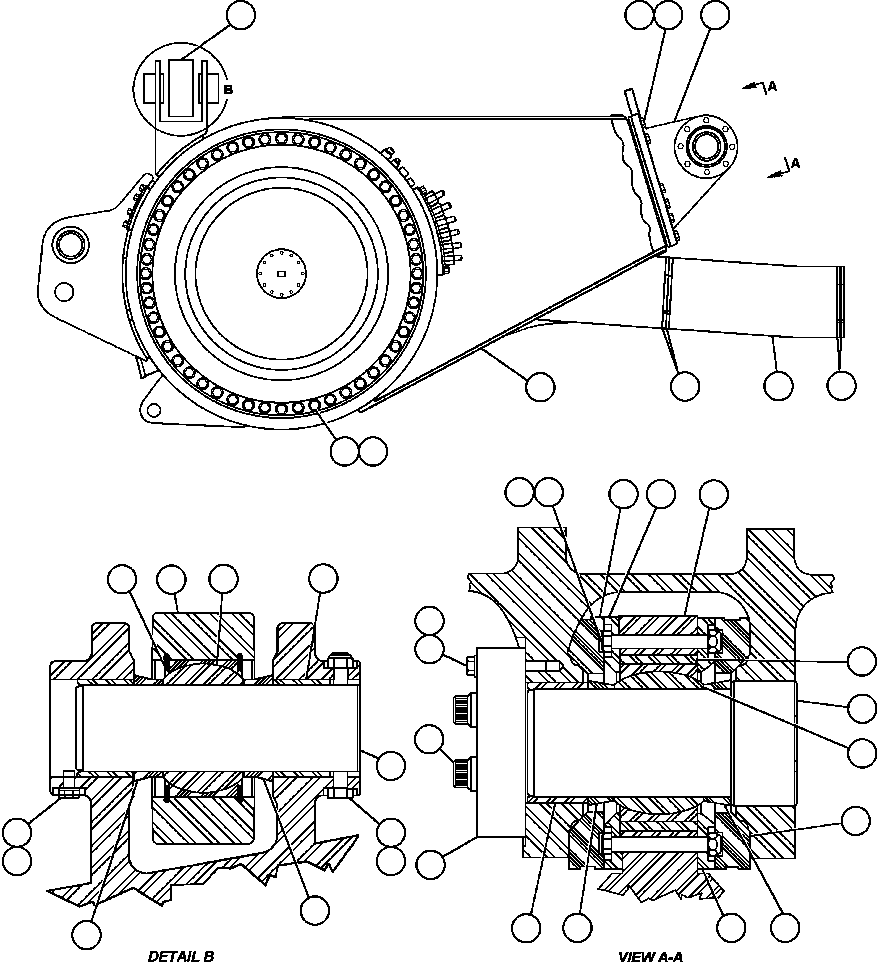

5 3 2 4 31 16 31 1 28 29 14 13 7 6 4 30 20 21 5 19 18 10 9 17 11 22 7 26 23 27 24 15 25 8 6 8 12 25

#	Part Number	Partname	Quantity
1	EH5275	HOUSING, AXLE	1
2	WA0366	FLAT WASHER - 1 1/4" (HARDENED)	28
3	WB1162	CAPSCREW - 1 1/4" - 7NC X 3"	28
4	EH5234	EYE, PIVOT (1)	1
5	EH7813	BAR, ANTI-SWAY (2)	1
6	EH5233	RETAINER, BEARING	2
7	EH5237	RING, COVER	2
7	WA2957	CLAMP	2
8	EG3028	SPACER (3)	2
9	EG3033	PIN, PIVOT (3)	1
10	EG3026	CARRIER, BEARING (1)	1
11	PC0826	BEARING (1)/(3)	1
12	ED4952	SLEEVE (3)	2
13	WB1159	CAPSCREW - 7/8" - 9NC X 6 1/2"	8
14	VN9953	LOCKNUT - 7/8" - 9NC	8
15	EG3027	PLATE, LOCKING (3)	1
16	EJ0260	HOSE, DRIVE AXLE BLOWER	1
17	WB1059	CAPSCREW - 1 1/4" - 7NC X 4 1/2" (12 POINT) (3)	4
18	C1541	LOCKWASHER - 5/8" (3)	3
19	VN9087	CAPSCREW - 5/8" - 11NC X 2 1/2" (3)	3
20	PB0027	BUSHING, BALL (2)/(4)	2
21	VN9351	RING, RETAINER (2)/(4)	4
22	EH7811	PIN, BEARING (4)	2
23	MM0173	CAPSCREW - M20 X 2.50 X 2.00 (4)	2
24	MM0697	NUT - M20 X 2.50 (4)	2
25	TY2734	SPACER (4)	4
26	MM0474	LOCKWASHER - M16	2
27	MM0012	CAPSCREW - M16 X 2.00 X 25	2
28	EF3368	FLAT WASHER - 1 1/4" (HARDENED)	140
29	VN3275	CAPSCREW - 1 1/4" - 7NC X 5 1/2"	140
30	TX8110	SLEEVE - PIN ANTI-SWAY BAR (4)	4
31	WA4830	CLAMP, T-BOLT	4
NS\|33		NOTE: NS = NOT SHOWN	-1
NS\|34	VL4462	WIRE, GROUND	1
NS\|35	VH9969	WELD STUD - 3/8" - 16NC X 3/4"	2
NS\|36	C0312	LOCKWASHER - 3/8"	2
NS\|37	C1521	NUT - 3/8" - 16NC	2
NS\|38		NOTE: (1) INCLUDED IN EH4546 PIVOT EYE ASSEMBLY.	-1
NS\|39		(2) INCLUDED IN EH7812 ANTI-SWAY BAR W/BEARINGS	-1
NS\|40		ASSEMBLY.	-1
NS\|41	AK4331	(3) INCLUDED IN AK4331 DRIVE PIN KIT.	-1
NS\|42	AK4321	(4) INCLUDED IN AK4321 PANHARD ROD PIN KIT.	-1
