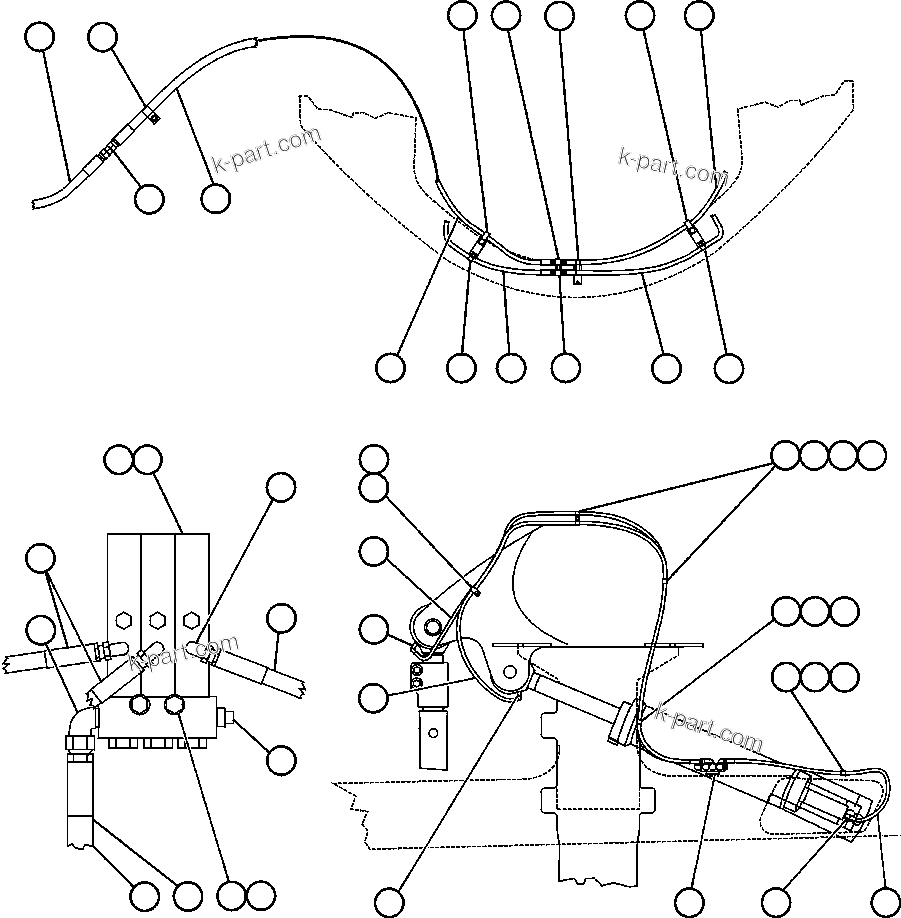

AUTOMATIC LUBRICATION SYSTEM - 1 | AFE48-CE 930E-2 S/N A30207-A30208 SUNCOR

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE48-CE 930E-2 S/N A30207-A30208 SUNCOR

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	HA7285	HOSE (LUBE PUMP TO JUNCTION AT HORSECOLLAR)	1
?	WB0391	FITTING, TEE	1
?	HA7288	HOSE (JUNCTION AT HORSECOLAR TO REAR INJECTORS)	1
?	WB0403	FITTING, UNION	1
?	HA6448	HOSE (TO REAR INJECTORS, SEE REF. NO. 14 ON FOLLOWING PAGE)	1
?	WB0418	FITTING, TEE	1
?	HA5564	HOSE (JUNCTION AT HORSECOLLAR TO R.H. FRONT INJECTOR)	1
?	HA5769	HOSE (JUNCTION AT HORSECOLLAR TO L.H. FRONT INJECTOR)	1
?	TF6925	CLAMP - 3/4" ID	12
?	TC6058	CLAMP - 1 1/2" ID	14
?	TA4410	INJECTOR, FRONT (3 PIECE) (1)	2
?	VW7990	CAP, PROTECTIVE	6
?	MM0609	CAPSCREW - M10 X 1.50 X 45	4
?	MM0471	LOCKWASHER - M10	4
?	C5770	PLUG, PIPE - 3/8"	2
?	WB0252	FITTING, ELBOW - 90 DEG	6
?	HA3159	HOSE (FRONT INJECTORS TO STRG CYLINDERS & TIE ROD ENDS)	4
?	HA0570	HOSE (FRONT INJECTORS TO STEERING CYLINDERS)	2
?	WB0262	FITTING, ELBOW - 90 DEG	2
?	WB0574	FITTING, STRAIGHT	4
?	WB0531	FITTING, ELBOW - 45 DEG	2
?	MM0642	STUD, WELD - M8 X 1.25 X 25	23
?	VN9907	CLAMP - 5/8" ID	32
?	MM0470	LOCKWASHER - M8	38
?	MM0177	NUT - M8 X 1.25	38
?		NOTE: NS = NOT SHOWN	-1
?	HA7376	HOSE (LUBE PUMP TO BLEED DOWN MANIFOLD)	1
?	WB0576	FITTING, STRAIGHT (AT BLEED DOWN MANIFOLD)	1
?	HA3098	HOSE (LUBE PUMP TO HYDRAULIC TANK MANIFOLD)	1
?	WB0581	FITTING, STRAIGHT (AT HYDRAULIC TANK MANIFOLD)	1
?	VN9908	CLAMP - 1" ID	2
?	VN9913	CLAMP - 1 5/8" ID	2
?		NOTE: (1) FOR SINGLE INJECTOR, ORDER VS1947.	-1
