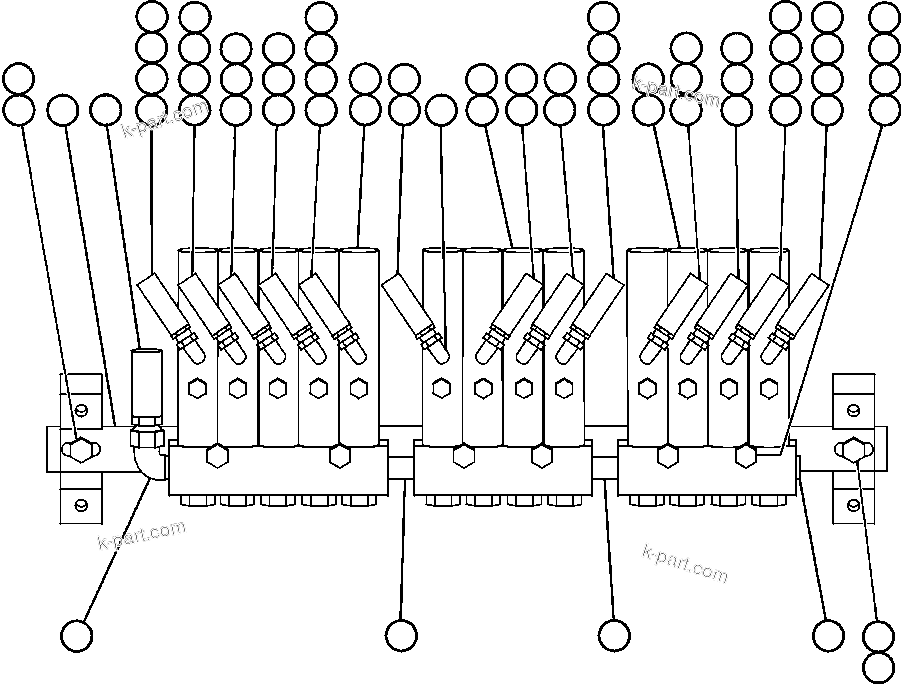

AUTOMATIC LUBRICATION SYSTEM - 2 | AFE48-CE 930E-2 S/N A30207-A30208 SUNCOR

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE48-CE 930E-2 S/N A30207-A30208 SUNCOR

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	TA4411	INJECTOR, REAR (5 PIECE) (1)	1
?	VW7989	INJECTOR, REAR (4 PIECE) (1)	2
?	VW7990	CAP, PROTECTIVE	13
?	WB0252	FITTING, ELBOW - 90 DEG	13
?	EG0582	PLATE, MOUNTING	1
?	MM0606	CAPSCREW - M10 X 1.50 X 30	2
?	MM0471	LOCKWASHER - M10	8
?	MM0611	CAPSCREW - M10 X 1.50 X 60	6
?	MM0461	FLAT WASHER - M10	6
?	MM0178	NUT - M10 X 1.50	6
?	C5770	PLUG, PIPE - 3/8"	1
?	TB8803	NIPPLE, PIPE - 3/8"	2
?	WB0262	FITTING, ELBOW - 90 DEG	1
?	HA6448	HOSE (FROM LUBE PUMP, SEE REF. NO. 5 ON PRECEDING PAGE)	1
?	HA0197	HOSE (TO TOP OF REAR SUSPENSIONS)	2
?	WB0252	FITTING, ELBOW - 90 DEG (AT TOP OF REAR SUSPENSIONS)	2
?	C1231	COUPLING, PIPE (AT TOP OF REAR SUSPENSIONS)	2
?	DC5608	NIPPLE, CLOSE (AT TOP OF REAR SUSPENSIONS)	2
?	HA1413	HOSE (TO BOTTOM OF REAR SUSPENSIONS)	2
?	WB0252	FITTING, ELBOW - 90 DEG (AT BOTTOM OF REAR SUSPENSIONS)	2
?	C1231	COUPLING, PIPE (AT BOTTOM OF REAR SUSPENSIONS)	2
?	DC5608	NIPPLE, CLOSE (AT BOTTOM OF REAR SUSPENSIONS)	2
?	VD4661	HOSE (TO BODY PIVOT PINS)	2
?	WB0281	FITTING, ELBOW - 45 DEG (AT BODY PIVOT PINS)	2
?	HC1580	BUSHING, PIPE (AT BODY PIVOT PINS)	2
?	HA1438	HOSE (TO TOP OF HOIST CYLINDERS)	2
?	WB0252	FITTING, ELBOW - 90 DEG (AT TOP OF HOIST CYLINDERS)	2
?	WB0454	FITTING, STRAIGHT (AT TOP OF HOIST CYLINDERS)	2
?	HA0994	HOSE (TO BOTTOM OF HOIST CYLINDERS)	2
?	WB0252	FITTING, ELBOW - 90 DEG (AT BOTTOM OF HOIST CYLINDERS)	2
?	C1231	COUPLING, PIPE (AT BOTTOM OF HOIST CYLINDERS)	2
?	CD3705	NIPPLE, LONG (AT BOTTOM OF HOIST CYLINDERS)	2
?	HA1413	HOSE (TO L.H. END OF SWAY BAR)	1
?	WB0281	FITTING, ELBOW - 45 DEG (AT L.H. END OF SWAY BAR)	1
?	HA0570	HOSE (TO R.H. END OF SWAY BAR)	1
?	WB0281	FITTING, ELBOW - 45 DEG (AT R.H. END OF SWAY BAR)	1
?	HA2965	HOSE (TO DRIVE CASE PIVOT)	1
?	WB0255	FITTING, ELBOW - 90 DEG (AT DRIVE CASE PIVOT)	1
?		NOTE: NS = NOT SHOWN	-1
?	EG0583	PLATE, COVER (REAR INJECTORS)	1
?	MM0606	CAPSCREW - M10 X 1.50 X 30	4
?	MM0471	LOCKWASHER - M10	4
?		NOTE: (1) FOR SINGLE INJECTOR, ORDER VS1947.	-1
