AFE48-BM 930E-2 S/N A30161 THRU A30163 CODELCO

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	TY0616	BRACKET, BACKUP LIGHT	1
?	AK3320	FLOOD LIGHT ASSEMBLY (SEE FIG 60111)	1	60111
?	TR4436	FLAT WASHER - 3/8"	4
?	TC1231	LOCKWASHER - 3/8"	3
?	TG5720	CAPSCREW - 3/8" - 16NC X 1" (ZINC)	3
?	MM0178	NUT - M10	24
?	TG2562	CLAMP	9
?	VN9908	CLAMP	15
?	TD2186	GROMMET	1
?	VY2784	GROMMET	1
?	EG7735	HARNESS, DECK LIGHTING - RIGHT	1
?	SM2120	PLATE, NUT CONNECTOR SHELL - #24	1
?	VN7138	MACHINE SCREW - #6	4
?	MM0461	FLAT WASHER - M10	23
?	MM0603	CAPSCREW - M10 X 1.50 X 16	4
?	ED7274	WIRE, R.H. ENGINE GROUND BLOCK	1
?	MM0378	LOCKWASHER - M4 (EXT TOOTH)	12
?	MM0343	MACHINE SCREW - M4 X .7 X 16	12
?	MM0372	NUT - M4	9
?	PB8400	LIGHT ASSEMBLY, GREEN	1
?	PB8402	LIGHT ASSEMBLY, AMBER	1
?	PB8401	LIGHT ASSEMBLY, RED	1
?	VE8588	LENS, GREEN	1
?	VE8586	LENS, AMBER	1
?	VE8587	LENS, RED	1
?	SR6747	BULB	1
?	VE8589	GASKET	1
?	VE8590	RING, RETAINER	1
?	VE8591	GASKET	1
?	EG1107	PLATE, MOUNTING	1
?	MM0460	FLAT WASHER - M8	4
?	MM0470	LOCKWASHER - M8	4
?	MM0593	CAPSCREW - M8 X 1.25 X 20	4
?	AK8456	TURN SIGNAL LIGHT ASSEMBLY (SEE FIG 41107)	1	41107
?	MM0379	LOCKWASHER - M5 (EXT TOOTH)	3
?	MM0349	MACHINE SCREW - M5 X .8 X 12	3
?	MM0373	NUT - M5	3
?	SR7215	CAPSCREW - 1/2" - 13NC X 7 1/2"	2
?	VG7811	NUT - 1/2" LOCKING	2
?	PB8403	LIGHT ASSEMBLY	1
?	VE8105	LENS, CLEAR	1
?	SR6747	BULB	1
?	VE8589	GASKET	1
?	VE8590	RING, RETAINER	1
?	VE8591	GASKET	1
?	VN5153	WIRE, GROUND	1
?	EG9194	MOUNT	1
?	TC1233	NUT - 3/8"	1

Komatsu AFE48-BM 930E-2 S/N A30161 THRU A30163 CODELCO parts catalog PDF

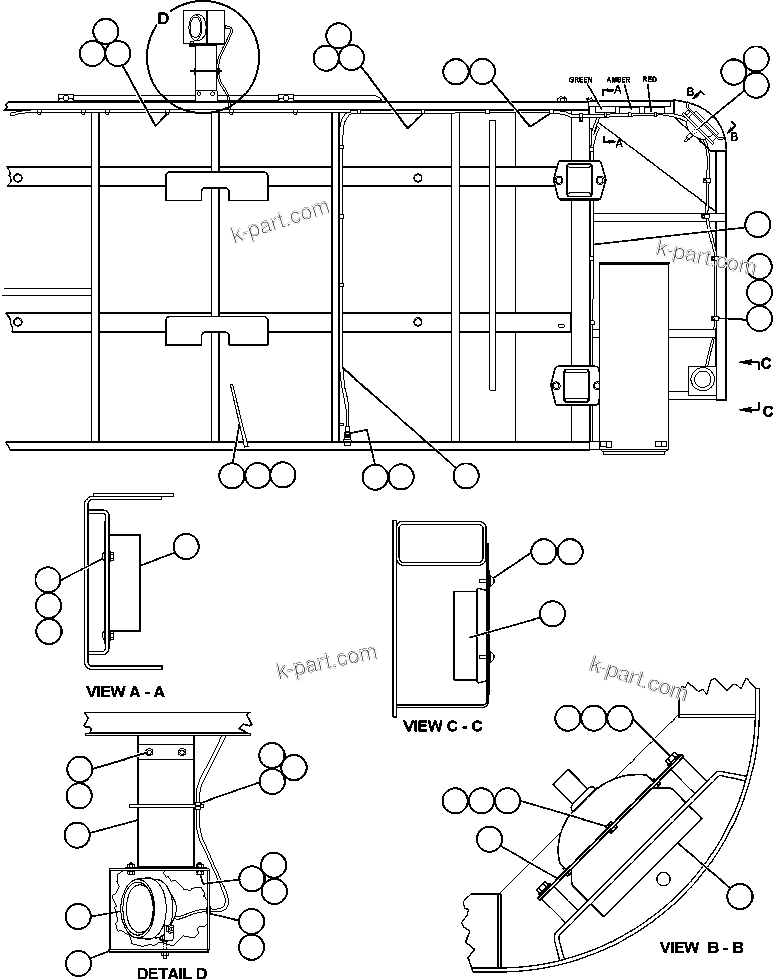

RIGHT DECK ELECTRICAL GROUP (60229) in AFE48-BM 930E-2 S/N A30161 THRU A30163 CODELCO. Diagram image and parts list.
