AFE48-BM 930E-2 S/N A30161 THRU A30163 CODELCO

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	MM0025	CAPSCREW M6 X 2.50 X 20	2
?	MM0469	LOCKWASHER - M6	2
?	EG6272	PLATE, MOUNT	1
?	EH3005	HARNESS, EXTERNAL ENGINE	1
?	CH3815	CABLE	2
?	CH4005	CABLE	2
?	CH4007	CABLE, GROUND	2
?	CH4605	CABLE	1
?	EH3006	HARNESS, QSK 60 ENGINE - CENSE	1
?	VL9602	CLAMP	6
?	TF6924	CLAMP	3
?	MM0178	NUT - M10	7
?	MM0471	LOCKWASHER - M10	7
?	MM0461	FLAT WASHER - M10	7
?	TR9441	CLAMP	1
?	TC1565	CLAMP	1
?	TC1234	CAPSCREW - 3/8" 16NC X 3/4"	1
?	TR4436	FLAT WASHER - 3/8"	1
?	TC1231	LOCKWASHER - 3/8"	1
?	EH5625	PLATE, MOUNT	1
?	PC0166	MOUNT, RUBBER	3
?	C0312	LOCKWASHER - 3/8"	3
?	WA0720	FLAT WASHER - 3/8"	3
?	C1521	NUT - 3/8"	3
?	VL6217	SWITCH, MAGNETIC	2
?	C5788	CAPSCREW - 1/4" - 20NC X 1"	4
?	C1546	FLAT WASHER - 1/4"	8
?	C5774	LOCKWASHER - 1/4"	4
?	C5780	NUT - 1/4"	4
?	CH4409	CABLE	1
?	CH4410	CABLE	1
?	CH4702	CABLE	1
?	CH4118	CABLE	1
?	EB5678	HOUSING	2
?	VZ3250	DIODE	2
?	SG3290	SWITCH, ENGINE HOURS	1
?	VZ0589	SWITCH, PRESSURE	1
?	677161R94	SENDER, OIL PRESSURE	1
?	CH4116	CABLE	1
?	CH4117	CABLE	1
?	BF4995	STARTER, WITH PRELUBE	1
?	BF4994	STARTER, WITHOUT PRELUBE	1
?	WB0254	FITTING, 90DEG	1
?	HA2365	HOSE	1
?	CH4115	CABLE	1
?	SP8417	FLAT WASHER - 1/4"	1
?	DC3584	LOCKWASHER - 1/4"	1
?	TD1549	NUT - 1/4"	1
?	PB5633	TERMINAL RING	2
?	VM3666	TAG, PART NUMBER	2
?	PC0607	SENDER, COOLANT TEMP	1
?	PC0696	SWITCH, PRESSURE - PRE-LUBE	1

Komatsu AFE48-BM 930E-2 S/N A30161 THRU A30163 CODELCO parts catalog PDF

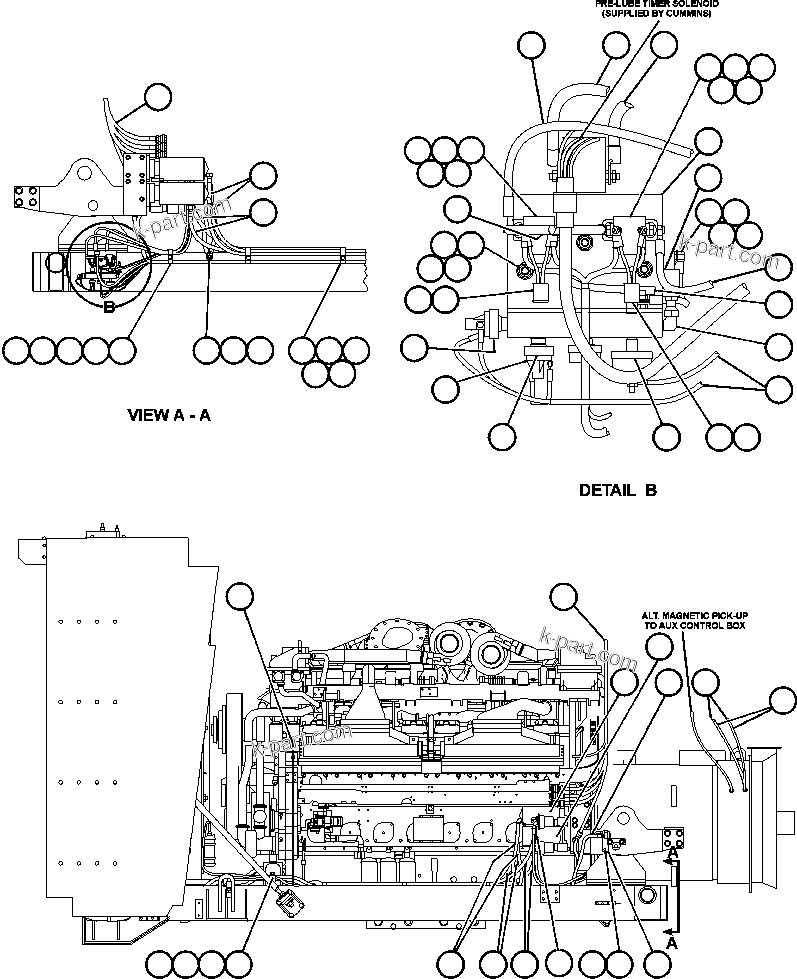

ENGINE ELECTRICAL - LEFT SIDE (60366) in AFE48-BM 930E-2 S/N A30161 THRU A30163 CODELCO. Diagram image and parts list.
