AFE48-BM 930E-2 S/N A30161 THRU A30163 CODELCO

18 16 14 2 27 26 4 15 19 17 20 17 12 12 25 11 23 3 24 25 21 4 22 5 4 13 6 10 1 9 8 7 11 4

#	Part Number	Partname	Quantity
1	GE0505	PANEL - PROPULSION SYSTEM CONTROLLER ASSEMBLY (PSC)	1
1	GE0544	PANEL - LESS CARDS	1
2	GE0299	COVER, FRONT	1
3	GE0300	HINGE	1
4	VE8180	GUIDE, CARD	16
5	VE8181	LATCH	2
6	VE8183	STRIKE	2
7	GE0301	COVER, REAR	1
8	GE0302	SPRING - 9 1/2"	1
9	VE8188	SPRING - 6 1/2"	1
10	GE0508	DECAL	1
11	VE8775	DECAL (1)	1
12	VE8776	DECAL (1)	2
13	VE8185	CEMENT	-1
14	GE0305	BOARD, WIRE - PRINTED	1
15	VE8191	SOCKET, 210 CONTACTS	9
16	VE8192	KEY, INTERLOCK	18
17	VE8196	SOCKET, 104 CONTACTS	4
18	PB2075	PIN, GUIDE	8
19	PB2076	PIN, GUIDE	8
20	GE0306	SUPPORT	2
21	GE0307	CARD - (127A2)	1
22	GE0308	CARD - (147A3)	1
22	GE0466	KIT, BATTERY	1
23	GE0309	CARD - (104B2)	1
24	GE0310	CARD - (143B1)	1
25	GE0506	CARD - (172A1)	2
26	GE0507	DECAL	1
27	GE0313	CARD	1
NS\|30		NOTE: NS = NOT SHOWN	-1
NS\|31	VE8182	MACHINE SCREW - #6 - 40NF X 5/16"	8
NS\|32	VE8187	MACHINE SCREW - #10 - 32NF X 9/16"	2
NS\|33	GE0304	MACHINE SCREW - #10 - 32 X 7/8"	2
NS\|34	VJ9161	MACHINE SCREW - #10 - 32 X 1/2"	3
NS\|35	VE8178	LOCKWASHER - #6 (INTERNAL TOOTH)	8
NS\|36	VE8189	LOCKWASHER - 1/4"	5
NS\|37	VS6662	FLAT WASHER - #10 (NARROW)	-1
NS\|38	VE4655	FLAT WASHER - #10	3
NS\|39	DF4944	LOCKWASHER - #6	4
NS\|40	VC1390	LOCKWASHER - #10	-1
NS\|41	VE8184	NUT - #6 - 40 (MINATURE)	4
NS\|42	SF2755	NUT - #10 - 32	-1
NS\|43	VE4385	NUT, CAP - #10 - 32	-1
NS\|44	TD1549	NUT - 1/4" - 20	5
NS\|45		NOTE: (1) NOT SERVICED SEPARATELY.	-1

Komatsu AFE48-BM 930E-2 S/N A30161 THRU A30163 CODELCO parts catalog PDF

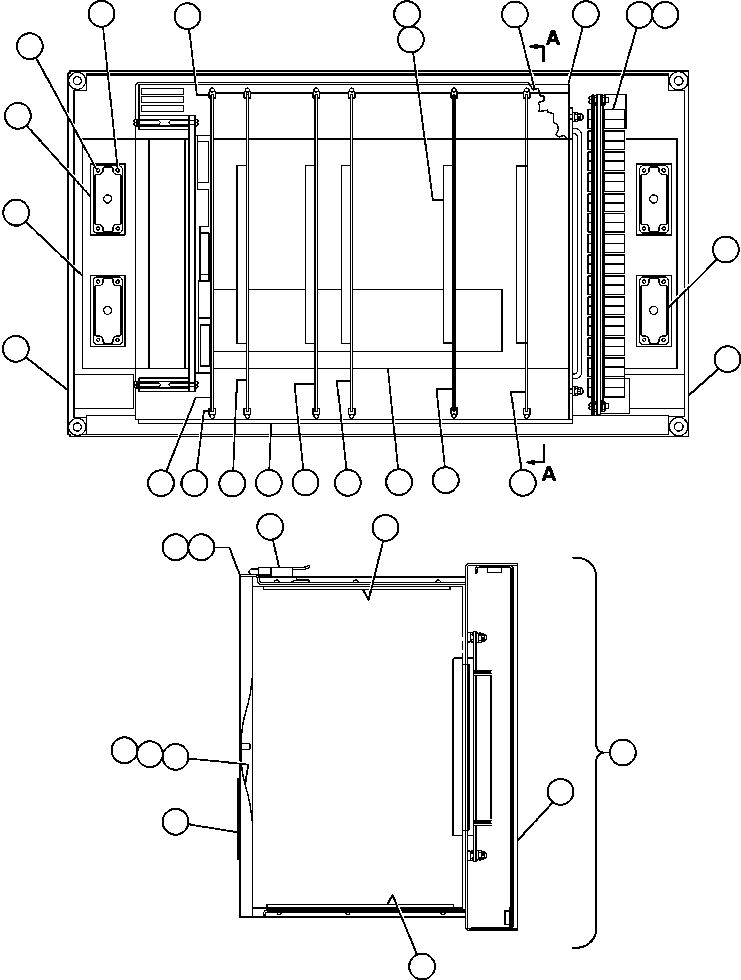

CONTROL PANEL - P.S.C. (GE0505) (64155) in AFE48-BM 930E-2 S/N A30161 THRU A30163 CODELCO. Diagram image and parts list.
