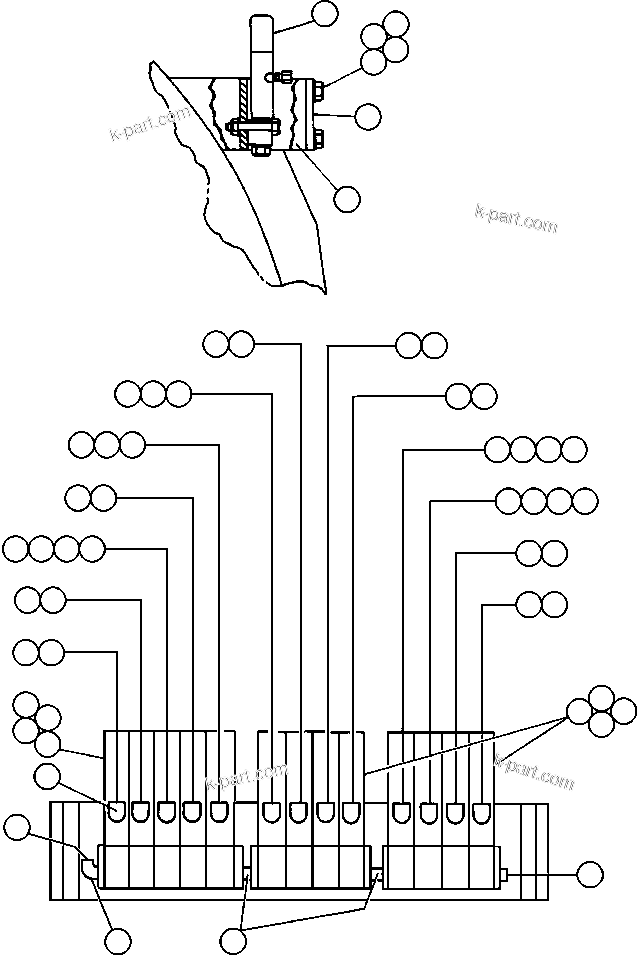

AUTOMATIC LUBRICATION SYSTEM - 2 | AFE50-AG 830E S/N A30641 ANTELOPE COAL

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE50-AG 830E S/N A30641 ANTELOPE COAL

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	VW7989	INJECTOR (4 PIECE) (1)	2
?	TA4411	INJECTOR (5 PIECE) (1)	1
?	VW7990	CAP, PROTECTIVE	13
?	H0595	CAPSCREW - 3/8" - 16NC X 2 1/4"	6
?	C0312	LOCKWASHER - 3/8"	6
?	C1521	NUT - 3/8" - 16NC	6
?	TY9709	MOUNT, INJECTORS	1
?	TA4407	PLATE, COVER	1
?	TA1232	SPACER	2
?	C1613	CAPSCREW - 1/2" - 13NC X 1 1/4"	4
?	C1624	CAPSCREW - 1/2" - 13NC X 4"	2
?	C1540	LOCKWASHER - 1/2"	8
?	TW2611	COUPLING	1
?	C5770	PLUG, PIPE	1
?	TB8803	NIPPLE	2
?	WB0262	FITTING, ELBOW - 90 DEG	1
?	WB0252	FITTING, ELBOW - 90 DEG	13
?	HA0478	HOSE, GREASE SUPPLY (SEE REF. NO. 1 ON PRECEDING PAGE)	1
?	VW8099	HOSE (TO BOTTOM OF REAR SUSPENSIONS)	2
?	WB0252	FITTING, ELBOW - 90 DEG (AT BOTTOM OF REAR SUSPENSIONS)	2
?	HA1517	HOSE (TO TOP OF HOIST CYLINDERS)	2
?	WB0454	FITTING, STRAIGHT (AT TOP OF HOIST CYLINDERS)	2
?	HA0994	HOSE (TO BOTTOM OF HOIST CYLINDERS)	2
?	CD3705	NIPPLE (AT BOTTOM OF HOIST CYLINDERS)	2
?	C1231	COUPLING (AT BOTTOM OF HOIST CYLINDERS)	2
?	WB0252	FITTING, ELBOW - 90 DEG (AT BOTTOM OF HOIST CYLINDERS)	2
?	HA2995	HOSE (TO DRIVE AXLE PIVOT PIN)	1
?	CD3705	NIPPLE (AT DRIVE AXLE PIVOT PIN)	1
?	C1231	COUPLING (AT DRIVE AXLE PIVOT PIN)	1
?	WB0252	FITTING, ELBOW - 90 DEG (AT DRIVE AXLE PIVOT PIN)	1
?	HA1413	HOSE (TO ANTI-SWAY BARS)	2
?	WB0252	FITTING, ELBOW - 90 DEG (AT ANTI-SWAY BARS)	2
?	HA1416	HOSE (TO TOP OF REAR SUSPENSIONS)	2
?	WB0252	FITTING, ELBOW - 90 DEG (AT TOP OF REAR SUSPENSIONS)	2
?	VD4661	HOSE (TO BODY PIVOT PINS)	2
?	HC1580	BUSHING (AT BODY PIVOT PINS)	2
?	WB0252	FITTING, ELBOW - 90 DEG (AT BODY PIVOT PINS)	2
?		NOTE: (1) FOR SINGLE INJECTOR, ORDER VS1947.	-1
