AFE48-V 930E S/N 32816 & 32837 PHELPS-DODGE MORENCI

33 32 31 30 29 27 28 34 26 11 27 10 25 24 35 6 37 40 23 20 21 17 32 36 11 41 5 15 16 19 18 4 33 10 38 15 16 17 42 39 36 44 48 5 17 16 15 21 16 15 20 13 4 43 19 17 18 47 22 14 10 11 45 46 10 12 7 44 11 9 39 1 2 3 4 5 8 6 1

#	Part Number	Partname	Quantity
1	WB0549	FITTING, O-RING - 45 DEG	2
2	HA7401	HOSE	1
3	HA7400	HOSE	1
4	WA4713	CLAMP, HYDRA-ZORB - 2 1/4"	6
5	WA4711	CLAMP, HYDRA-ZORB - 1 3/4"	4
6	WB0551	FITTING, O-RING - 45 DEG	3
7	HA7288	HOSE	1
8	HA7405	HOSE	1
9	WB0604	FITTING, O-RING - STRAIGHT	1
10	MM0177	NUT - M8 X 1.25	18
11	MM0460	FLAT WASHER - M8	18
12	VC7673	CLAMP - 2 3/16"	4
13	HA7397	HOSE	1
14	EG0564	TUBE	1
15	C1614	CAPSCREW - 1/2" - 13NC X 1 1/2"	16
16	C1540	LOCKWASHER - 1/2"	16
17	TF8090	CLAMP, SPLIT FLANGE	8
18	EF9609	TUBE	2
19	WA3574	O-RING (VITON)	2
20	ED6514	TUBE	2
21	VG9095	O-RING	2
22	EG0559	TUBE	1
23	HA7414	HOSE	1
24	WA4709	CLAMP, HYDRA-ZORB 1 1/4"	4
25	EF6640	TUBE	1
26	HA7404	HOSE	1
27	VL9602	CLAMP - 2"	5
28	EG0555	ADAPTER, FLANGE	1
29	MM0627	CAPSCREW - M12 X 1.75 X 100	4
30	WB0601	FITTING, O-RING - STRAIGHT	1
31	WB0524	FITTING, O-RING - 90 DEG	1
32	WA0232	O-RING	2
33	MM0472	LOCKWASHER - M12	8
34	HA7403	HOSE	1
35	EG0568	TUBE	1
36	WA4710	CLAMP, HYDRA-ZORB - 1 1/2"	4
37	VN9914	CLAMP - 2 1/4"	7
38	HA7413	HOSE	1
39	HA7399	HOSE	1
40	EG0554	ADAPTER, FLANGE	1
41	MM0622	CAPSCREW - M12 X 1.75 X 50	4
42	HA7402	HOSE	1
43	HA7406	HOSE	1
44	HA7398	HOSE	1
45	TY8375	SPACER	3
46	TF6925	CLAMP - 3/4"	9
47	HA7075	HOSE	2
48	WB1053	CLAMP, TUBE	3

Komatsu AFE48-V 930E S/N 32816 & 32837 PHELPS-DODGE MORENCI parts catalog PDF

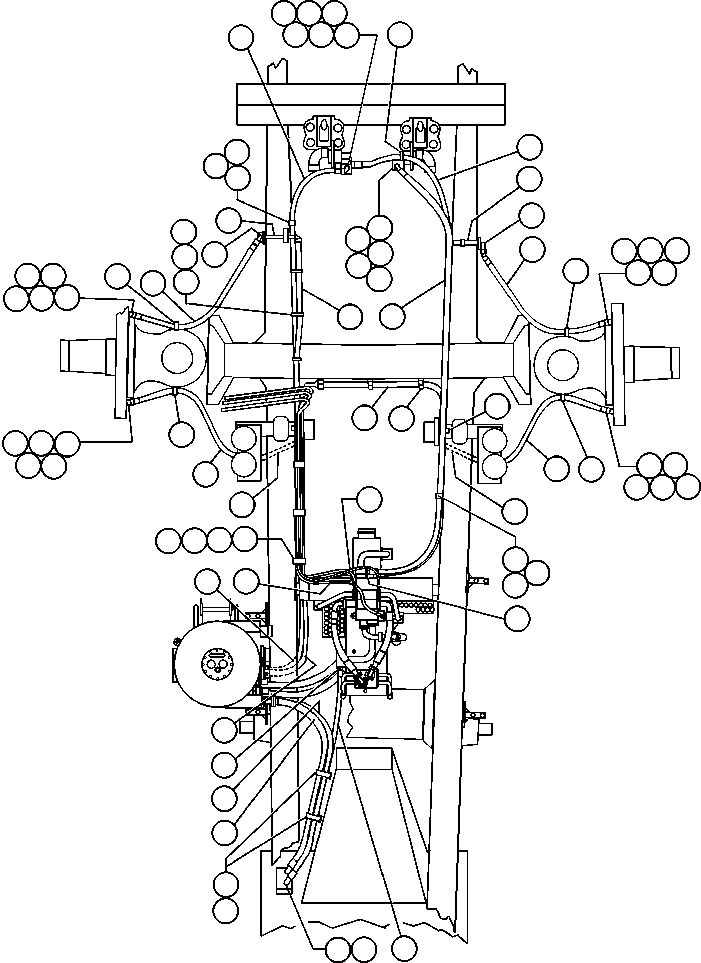

BRAKE COOLING PIPING - 4 (60075) in AFE48-V 930E S/N 32816 & 32837 PHELPS-DODGE MORENCI. Diagram image and parts list.
