AFE48-V 930E S/N 32816 & 32837 PHELPS-DODGE MORENCI

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	GE0237	GROMMET, RUBBER	3
?	GE0339	PANEL, (PSC) (SEE INDEX)	1	64032
?	GE0226	GROMMET	3
?	GE0146	CAPACITOR	1
?	GE0205	INSULATOR ASSEMBLY	5
?	GE0147	FUSE	2
?	GE0144	INVERTER	1
?	GE0145	INDUCTOR	1
?	GE0207	PANEL, RESISTOR	1
?	VJ3291	RESISTOR - 100 WATT, 2500 OHM	4
?	GE0208	RESISTOR - 100 WATT, 500 OHM	1
?	GE0175	LAMP, SERVICE	1
?	GE0215	BAR, BUS	2
?	GE0170	SENSOR, CURRENT	2
?	GE0199	INSULATOR ASSEMBLY	18
?	GE0200	INSULATOR/STUD ASSEMBLY	4
?	GE0206	TRANSFORMER/PANEL ASSEMBLY	1
?	VE6113	PANEL (SEE INDEX)	1	64045
?	PB3167	KIT, BRACKET AND HARDWARE	1
?	VJ9204	TRANSFORMER, RIPPLE	1
?	PB8838	EXCITOR, ALTERNATOR (SEE INDEX)	1	64041
?	GE0150	CABLE ASSEMBLY	1
?	GE0151	BOARD, WIRE - PRINTED	1
?	GE0222	BRACKET	1
?	GE0193	BOARD, TERMINAL	4
?	PB5249	TRANSFORMER	1
?	BF1442	BOARD, TERMINAL	3
?		FILTER, PANEL (TO BE SUPPLIED AT A LATER DATE)	1

Komatsu AFE48-V 930E S/N 32816 & 32837 PHELPS-DODGE MORENCI parts catalog PDF

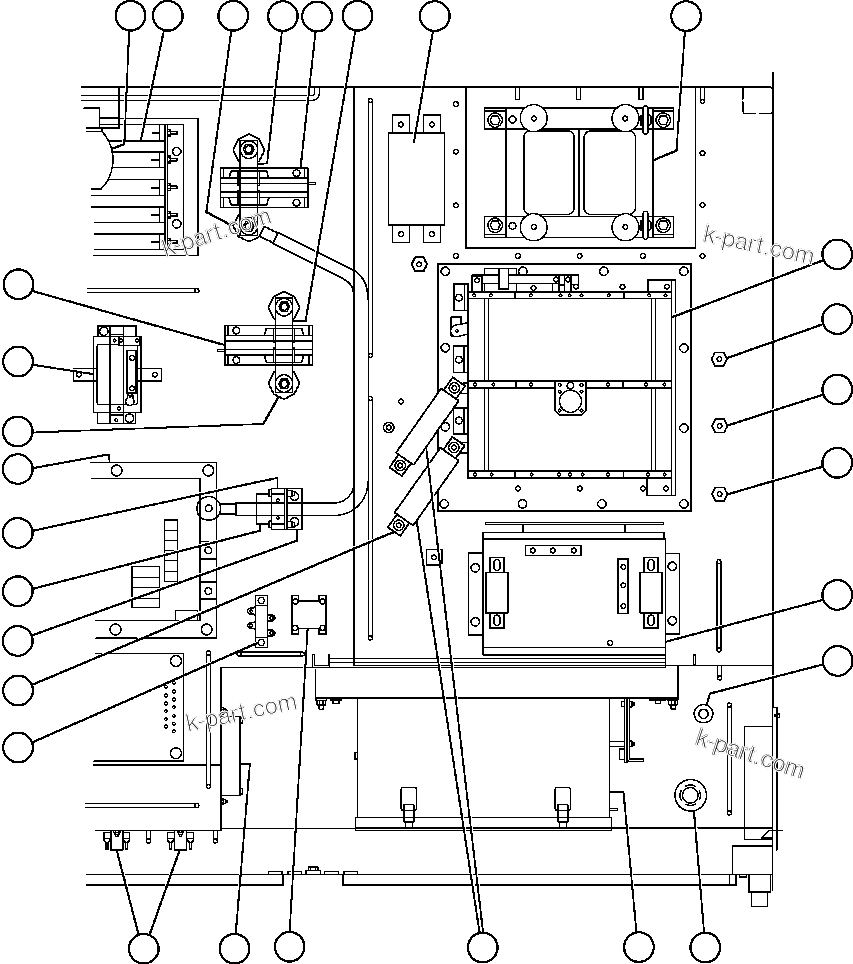

CONTROL CABINET (TOP RIGHT VIEW) (64085) in AFE48-V 930E S/N 32816 & 32837 PHELPS-DODGE MORENCI. Diagram image and parts list.
