AFE48-V 930E S/N 32816 & 32837 PHELPS-DODGE MORENCI

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	WB2204	PLATE, NAME - SPC	1
?	PB9945	CONVERTER - SERIES/PARALLEL	1
?	MM0378	LOCKWASHER - M4	5
?	MM0372	NUT - M4	5
?	WB2284	PLATE, NAME - HTRL	1
?	WB2285	PLATE, NAME - HTRS	1
?	VF6697	LIGHT, INDICATOR	1
?	VL0978	BULB	1
?	SR8325	SWITCH, TOGGLE	2
?	WB2286	PLATE, NAME - ENG LT TEST	1
?	SV2890	SWITCH, TOGGLE	3
?	WB2287	PLATE, NAME - ENG ALARM RESET	1
?	WB2200	PLATE, NAME - DLS	1
?	PB6072	BREAKER, CIRCUIT - 5 AMP	3
?	EC8806	PLATE, NAME - CB2	1
?	EC8807	PLATE, NAME - CB3	1
?	PB6073	BREAKER, CIRCUIT - 15 AMP	4
?	EC8808	PLATE, NAME - CB4	1
?	EC8809	PLATE, NAME - CB5	1
?	EC8810	PLATE, NAME - CB6	1
?	PB8547	BREAKER, CIRCUIT - 10 AMP	2
?	EC8811	PLATE, NAME - CB7	1
?	EC8812	PLATE, NAME - CB8	1
?	EC8802	PLATE, NAME - CB9	1
?	EC8801	PLATE, NAME - CB10	1
?	MM0459	FLAT WASHER - M6	42
?	MM0207	LOCKWASHER - M6 - INTERNAL TOOTH	38
?	MM0176	NUT - M6	42
?	SM1947	BOARD, RELAY - PAYLOAD - RB2	1
?	SM3031	MODULE, DATA STORE	1
?	SM3196	BREAKER, CIRCUIT - 5 AMP	1
?	SM3188	BREAKER, CIRCUIT - 15 AMP	1
?	SM3189	RELAY	4
?	EC8820	PLATE, NAME - RB2	1
?	SM1951	BOARD, RELAY - STOP LIGHT - RB3	1
?	SM3043	MODULE, LIGHT DISPLAY	1
?	SM3188	BREAKER, CIRCUIT - 15 AMP	4
?	SM3189	RELAY	4
?	EC8821	PLATE, NAME - RB3	1
?	SM1955	BOARD, RELAY - PARKING BRAKE - RB4	1
?	SM3039	MODULE, STEERING BLEEDDOWN	1
?	SM3196	BREAKER, CIRCUIT - 5 AMP	2
?	SM3188	BREAKER, CIRCUIT - 15 AMP	1
?	SM3189	RELAY	4
?	EC8822	PLATE, NAME - RB4	1
?	SM1959	BOARD, RELAY - HEADLIGHT - RB5	1
?	SM3043	MODULE, LIGHT DISPLAY	1
?	SM3188	BREAKER, CIRCUIT - 15 AMP	4
?	SM3189	RELAY	4
?	EF9220	WIRE, JUMPER	1
?	EC8823	PLATE, NAME - RB5	1
?	SL6447	GROMMET, RUBBER	2
?	EF8180	BRACKET, CABLE	4
?	EF8181	GASKET	2
?	MM0460	FLAT WASHER - M8	16
?	MM0470	LOCKWASHER - M8	8
?	MM0593	CAPSCREW - M8 X 1.25 X 20	8
?	SM1963	BOARD, DIODE RESISTOR - DB1	1
?	SM3124	DIODE	25
?	ED3922	RESISTOR - 1K, -2W, WW	3
?	EF4623	RESISTOR - 22.1K - 5W	1
?	EF4624	RESISTOR - 100K - 5W	1
?	EG0664	RESISTER - 270 OHM	1
?	EC8825	PLATE, NAME - DB1	1
?	MM0379	LOCKWASHER - M5	4
?	MM0373	NUT - M5	4
?	PB0839	TIMER, LUBE	1
?	WB2281	PLATE, NAME - LUBE TIMER	1
?	PB9946	GOVERNOR, ENGINE	1
?	MM0596	CAPSCREW - M8 X 1.25 X 35	4
?	MM0177	NUT - M8 X 1.25	4
?	WB2202	PLATE, NAME - ENGINE GOVERNOR	1
?	MM0582	CAPSCREW - M6 X 1.00 X 20	4
?	ED9831	FAN, HEATER ASSEMBLY	1
?	WB2201	PLATE, NAME - HTR/FAN	1
?	SM1943	BOARD RELAY - TURN SIGNAL - RB1	1
?	SM3027	MODULE, FLASHER	1
?	SM3188	BREAKER, CIRCUIT - 15 AMP	3
?	SM3189	RELAY	4
?	EC8819	PLATE, NAME - RB1	1
?	SM3001	BOARD, RELAY - AUXILIARY - RB7	2
?	SM3189	RELAY	8
?	WB2280	PLATE, NAME - RB7	1
?	DC3101	LOCKWASHER - #10	6
?	TG1929	MACHINE SCREW - #10	6
?	VS0035	DOME LIGHT	2
?	VZ1912	BULB	2
?	TM9090	INSULATOR	2
?	EC7458	PLATE, NAME - DL2	1
?	WB2282	PLATE, NAME - BAR PRESS TRANS	1
?	PB9744	TRANSDUCER, PRESSURE	1
?	EC8824	PLATE, NAME - RB6	1
?	EC7462	PLATE, NAME - DL1	1
?	EF8112	EYE, LIFT	2
?	MM0471	LOCKWASHER - M10	12
?	0164331032	FLAT WASHER	12
?	MM0610	CAPSCREW - M10 X 1.50 X 50	6
?	EG1170	CABINET ASSEMBLY	1
?	EG1145	DOOR, CABINET	1
?	PB1006	LATCH/KEEPER SET	2
?	MM0459	FLAT WASHER - M6	16
?	MM0469	LOCKWASHER - M6	12
?	MM0019	CAPSCREW - M6 X 1.00 X 16	8
?	MM0025	CAPSCREW - M6 X 1.00 X 20	4
?	TR1307	FLAT WASHER - 1/4"	4
?	VD1921	CAPSCREW - 1/4" - 20NC X 2 3/4"	4
?	PB9743	PANEL, TCI (SEE INDEX)	1	60107
?	WB2283	PLATE, NAME - TCI	1
?	WB2304	PLATE, NAME - GB32	1
?	EF4619	HARNESS - #180	1
?	EF4618	HARNESS, ECS POWER	1
?	EG1764	BRACKET, CABLE	1
?	MM0375	LOCKWASHER - 6MM	4
?	EF4620	HARNESS, GE INTERFACE	1
?	EF9767	HARNESS, GE/TCI	1
?	EF9202	HARNESS, RELAY BOARDS INTERNAL	1
?	EF4621	HARNESS, HEATER FAN	1
?	EF9768	HARNESS, MTU COMPONENTS	1
?	EF3272	HARNESS - #112	1

Komatsu AFE48-V 930E S/N 32816 & 32837 PHELPS-DODGE MORENCI parts catalog PDF

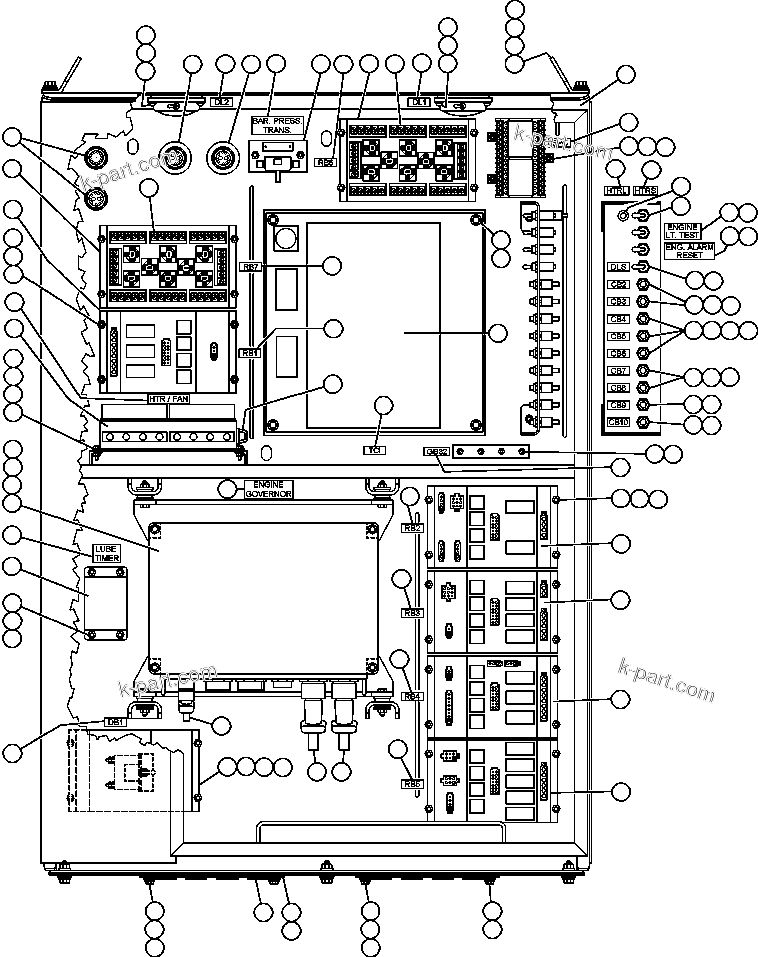

ELECTRICAL INTERFACE CABINET (60022) in AFE48-V 930E S/N 32816 & 32837 PHELPS-DODGE MORENCI. Diagram image and parts list.
