AFE48-V 930E S/N 32816 & 32837 PHELPS-DODGE MORENCI

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	PB5732	BOARD, TERMINAL	12
?	WA3367	NUT	240
?	WB2278	PLATE, NAME - TB31	1
?	MM0459	FLAT WASHER - M5	24
?	MM0379	LOCKWASHER - M5 (EXT TOOTH)	20
?	MM0373	NUT - M5	20
?	WB2279	PLATE, NAME - TB32	1
?	WB2303	PLATE, NAME - GB31	1
?	WB2289	PLATE, NAME - CONTROL POWER RELAY	1
?	PB7276	RELAY - 50 AMP	1
?	EC7459	PLATE, NAME - DL3	1
?	DC3101	LOCKWASHER - #10	3
?	TG1929	MACHINE SCREW - #10	3
?	VS0035	DOME LIGHT	1
?	VZ1912	BULB	1
?	TM9090	INSULATOR	1
?	SM2468	BREAKER, CIRCUIT	1
?	WB2288	PLATE, NAME - ENGINE TEST	1
?	EC8805	PLATE, NAME - CB1	1
?	SM1602	MACHINE SCREW	2
?	SV2890	SWITCH, TOGGLE	1
?	WB2197	PLATE, NAME - TSS2	1
?	DC3584	LOCKWASHER - 1/4"	2
?	ED0913	ROD, THREADED	1
?	TD1549	NUT - 1/4"	1
?	TA7409	INSULATOR, STAND-OFF	1
?	TZ7378	PLATE, NAME - 12 VDC	1
?	SC4174	LOCKWASHER - 5/16"	2
?	TD1684	NUT - 5/16"	1
?	ED7468	ROD, THREADED	1
?	PB7202	INSULATOR, GLASTIC	1
?	TZ7377	PLATE, NAME - 24V	1
?	WB2196	PLATE, NAME - TSS1	1
?	MM0207	LOCKWASHER - M6 (INTERNAL TOOTH)	2
?	MM0582	CAPSCREW - M6 X 1.00 X 20	2
?	MM0176	NUT - M6	4
?	PB9208	SENSOR - TEMP - HIGH (1)	1
?	PB9207	SENSOR - TEMP - LOW (1)	1
?	WB2277	PLATE, NAME - TB30	1
?	WB2276	PLATE, NAME - TB29	1
?	WB2385	PLATE, NAME - TB25	1
?	WB2386	PLATE, NAME - TB26	1
?	WB2274	PLATE, NAME - TB27	1
?	WB2275	PLATE, NAME - TB28	1
?	WB2384	PLATE, NAME - TB24	1
?	WB2383	PLATE, NAME - TB23	1
?	WB2382	PLATE, NAME - TB22	1
?	WB2273	PLATE, NAME - TB21	1
?	EB7418	BAR, BUS	6
?	MM0375	LOCKWASHER - 6MM	4
?	VM2951	SCREW, SELF/TAP - #6	24
?	WB2298	STRIP, CIRCUIT I.D.	1
?	WB2297	STRIP, CIRCUIT I.D.	1
?	WB2296	STRIP, CIRCUIT I.D.	1
?	WB2295	STRIP, CIRCUIT I.D.	1
?	WB2291	STRIP, CIRCUIT I.D.	1
?	WB2292	STRIP, CIRCUIT I.D.	1
?	WB2293	STRIP, CIRCUIT I.D.	1
?	WB2294	STRIP, CIRCUIT I.D.	1
?	WB2301	STRIP, CIRCUIT I.D.	1
?	WB2302	STRIP, CIRCUIT I.D.	1
?	WB2299	STRIP, CIRCUIT I.D.	1
?	WB2300	STRIP, CIRCUIT I.D.	1
?		NOTE: SENSOR IS PART OF HARNESS, AND MUST	-1
?		BE CUT OUT TO REPLACE.	-1

Komatsu AFE48-V 930E S/N 32816 & 32837 PHELPS-DODGE MORENCI parts catalog PDF

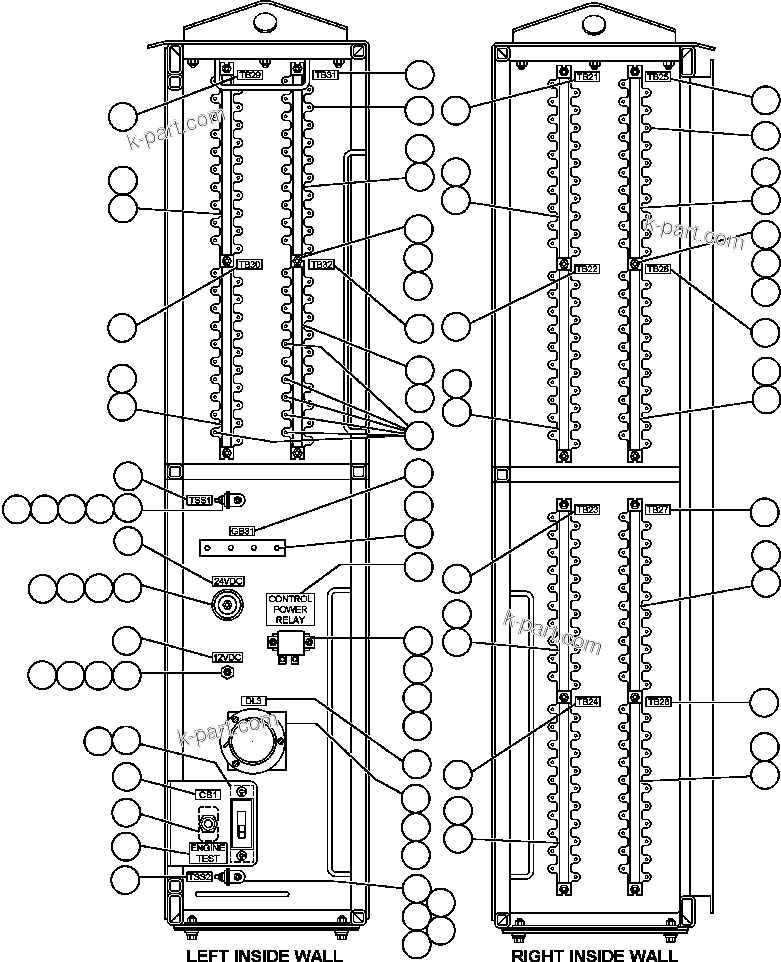

INTERFACE CABINET (SIDEWALLS) (60023) in AFE48-V 930E S/N 32816 & 32837 PHELPS-DODGE MORENCI. Diagram image and parts list.
